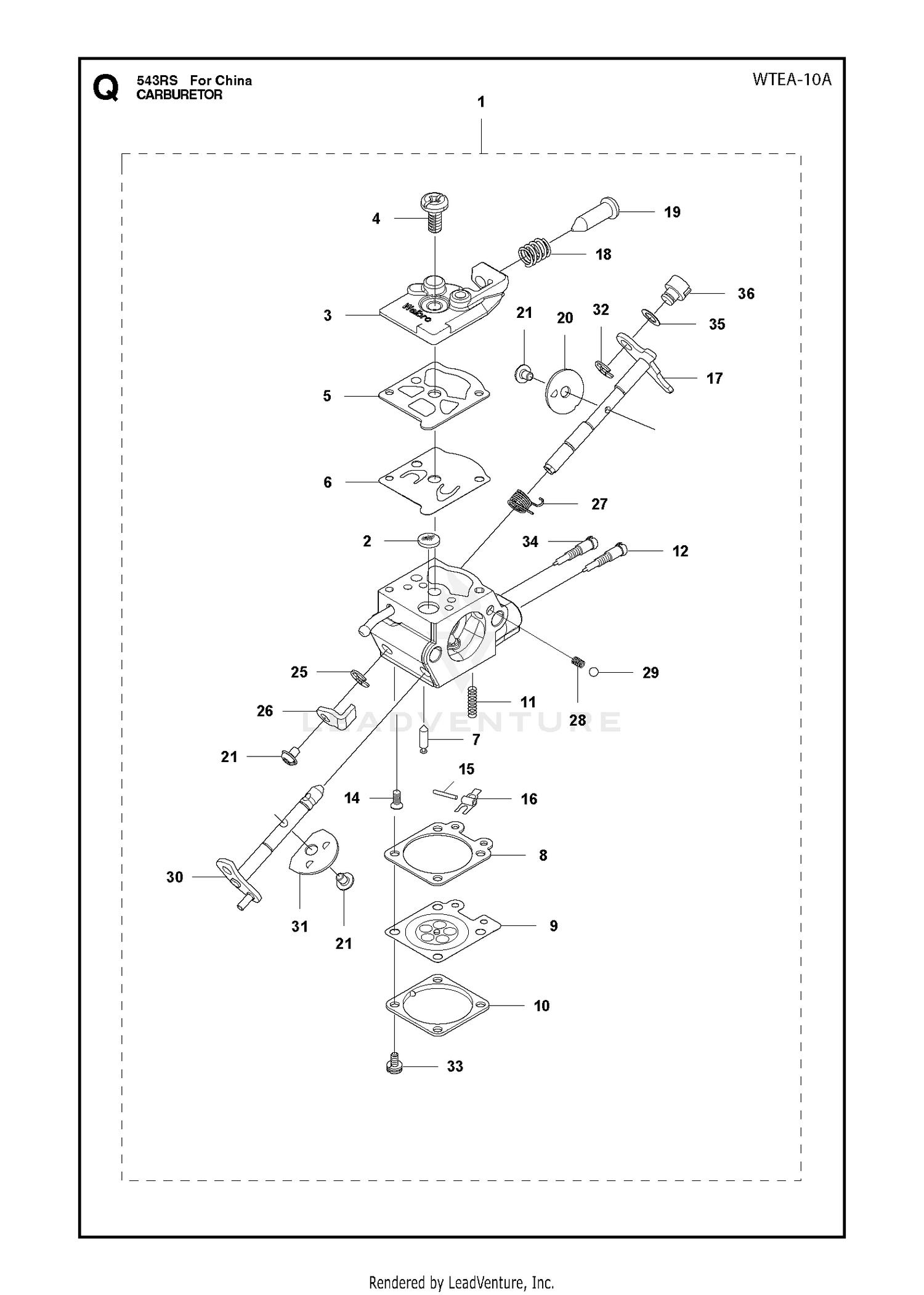

CARBURETOR 2
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 325-5 | SCREW-HH Price: $1.20 |
| 2 | 48-8070 | WASHER-LOCK Price: $0.47 |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 3 | 577806901 | COVER Price: $11.99 |
| 3 | 70-9610 | DISCONTINUED Price: Call Us |
| 4 | 520976301 | SCREW Price: $2.99 |
| 4 | 70-9280 | DISCONTINUED Price: Call Us |
| 5 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 323-7 | SCREW-HH Price: $0.65 |
| 6 | 596968101 | PUMPS Price: $8.99 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 7 | 71-7080 | DISCONTINUED Price: Call Us |
| 8 | 70-9290 | SHAFT - SPLINED Price: $968.35 |
| 9 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 9 | 577807001 | DIAPHRAGM Price: $14.99 |
| 10 | 32136-4 | NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 10 | 514189201 | COVER Price: $6.99 |
| 11 | 302-55 | FITTING-GREASE Price: $3.09 |
| 11 | 578895401 | SPRING Price: $3.99 |
| 12 | 582147901 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 71-7090 | DISCONTINUED Price: Call Us |
| 13 | 70-9620 | SHIELD TUBE Price: $85.98 |
| 14 | 577807101 | SCREW Price: $2.99 |
| 14 | 70-9300 | SHAFT - SPLINED Price: $686.05 |
| 15 | 520977401 | PIN Price: $4.99 |
| 16 | 577807201 | LEVER Price: $1.99 |
| 17 | 578895501 | SHAFT ASSY THROTTLE Price: $11.99 |
| 18 | 513593201 | SPRING Price: $4.99 |
| 19 | 577815701 | SCREW, IDLE Price: $8.99 |
| 20 | 501706901 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 520759801 | SCREW Price: $2.99 |
| 25 | 505056501 | E-RING Price: $3.99 |
| 26 | 577815801 | LEVER THROTTLE Price: $3.99 |
| 27 | 577815501 | SPRING Price: $3.99 |
| 28 | 514243301 | CHOKE SPRING Price: $5.99 |
| 29 | 514242601 | BALL Price: $5.99 |
| 30 | 593172101 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 579367101 | VALVE CHOKE Price: $6.99 |
| 32 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 582147801 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 516524201 | WASHER Price: $2.99 |
| 36 | 513400801 | SWIVEL Price: $11.99 |
