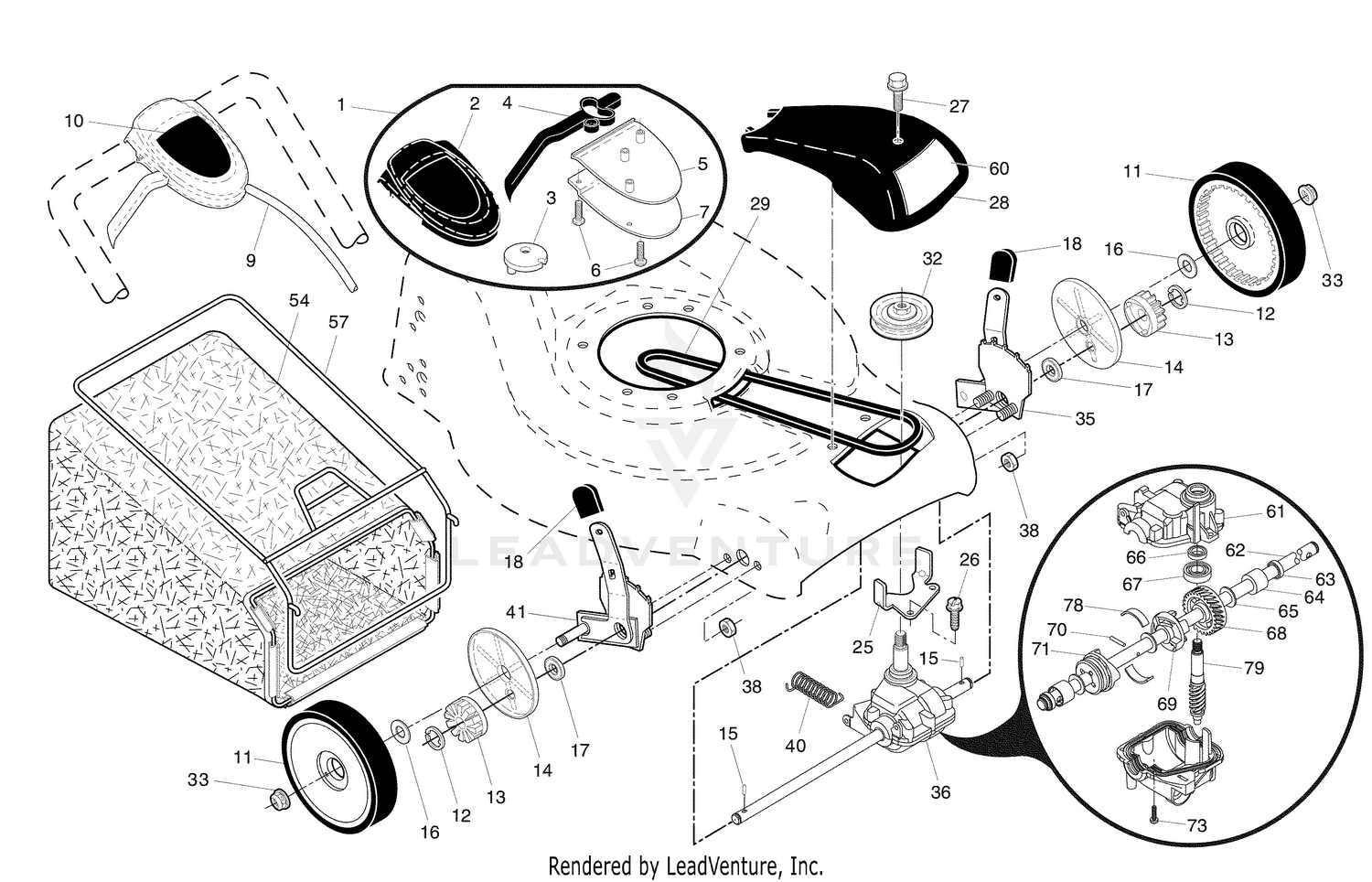

| Ref | Part Number | Description |
|---|
| 1 |
325-4 |
SCREW-HH Price: $0.95 |
| 1 |
532425580 |
CONTROL.DR.AW.FWGD.GRY/BLACK This part replaces 532407316. Price: $59.99 |
| 2 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 2 |
532406260 |
COVER TOP AUTO WALK CONTROL This part replaces 532411673. Price: $12.99 |
| 3 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ This part replaces 532406282. Price: $7.99 |
| 4 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010-03. Price: $199.32 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
104-9319 |
PIN-GROOVED Price: $6.58 |
| 5 |
532406261 |
COVER BOTTOM AUTO WLK CONTROL This part replaces 532411664. Price: $12.99 |
| 6 |
282-4 |
SHACKLE Price: $32.98 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 9 |
532406259 |
CABLE ASSEMBLY, DRIVE Price: $44.99 |
| 10 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 11 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 12 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 14 |
92-9097 |
SCREW-HS Price: $1.56 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 15 |
93-0142 |
BUSHING-STRAIGHT Price: $3.21 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 16 |
94-4919-03 |
BRACKET-CLAMP, HOSE Price: $19.76 |
| 17 |
322-13 |
SCREW-HH Price: $2.73 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532404831. Price: $12.99 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 18 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 19 |
75-4530 |
SPRING-TORSION, LH Price: $25.31 |
| 22 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
100-3828 |
DISCONTINUED Price: Call Us |
| 24 |
100-3827 |
LH REAR LIFT ARM ASM Price: $720.05 |
| 25 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 29 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 29 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 30 |
100-3834-03 |
ROD-PIVOT Price: $69.13 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 36 |
532404833 |
TRANSMISSION.21.FGD.HT.VST Price: $119.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 41 |
581497907 |
ADJUSTER.ASM.22+FGD.LF /AWD LT This part replaces 532409109. Price: $14.99 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD This part replaces 532401802. Price: $64.99 |
| 60 |
532193557 |
DECAL DRIVE COVER Price: $7.99 |
| 61 |
532410726 |
CASE.UPPER.00254(SERVICE) Price: $12.99 |
| 62 |
532410949 |
SHAFT OUTPUT (12289) Price: $54.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532410729 |
GEAR 28 TEETH 36208 Price: $11.99 |
| 69 |
532410732 |
FIXED DOG CLUTCH Price: $2.99 |
| 70 |
532412746 |
PIN 3.50.337 - 33733 This part replaces 532410733. Price: $7.99 |
| 71 |
532410730 |
MOVEABLE DOG CLUTCH Price: $6.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532410734 |
CASE.BOTTOM. Price: $17.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
