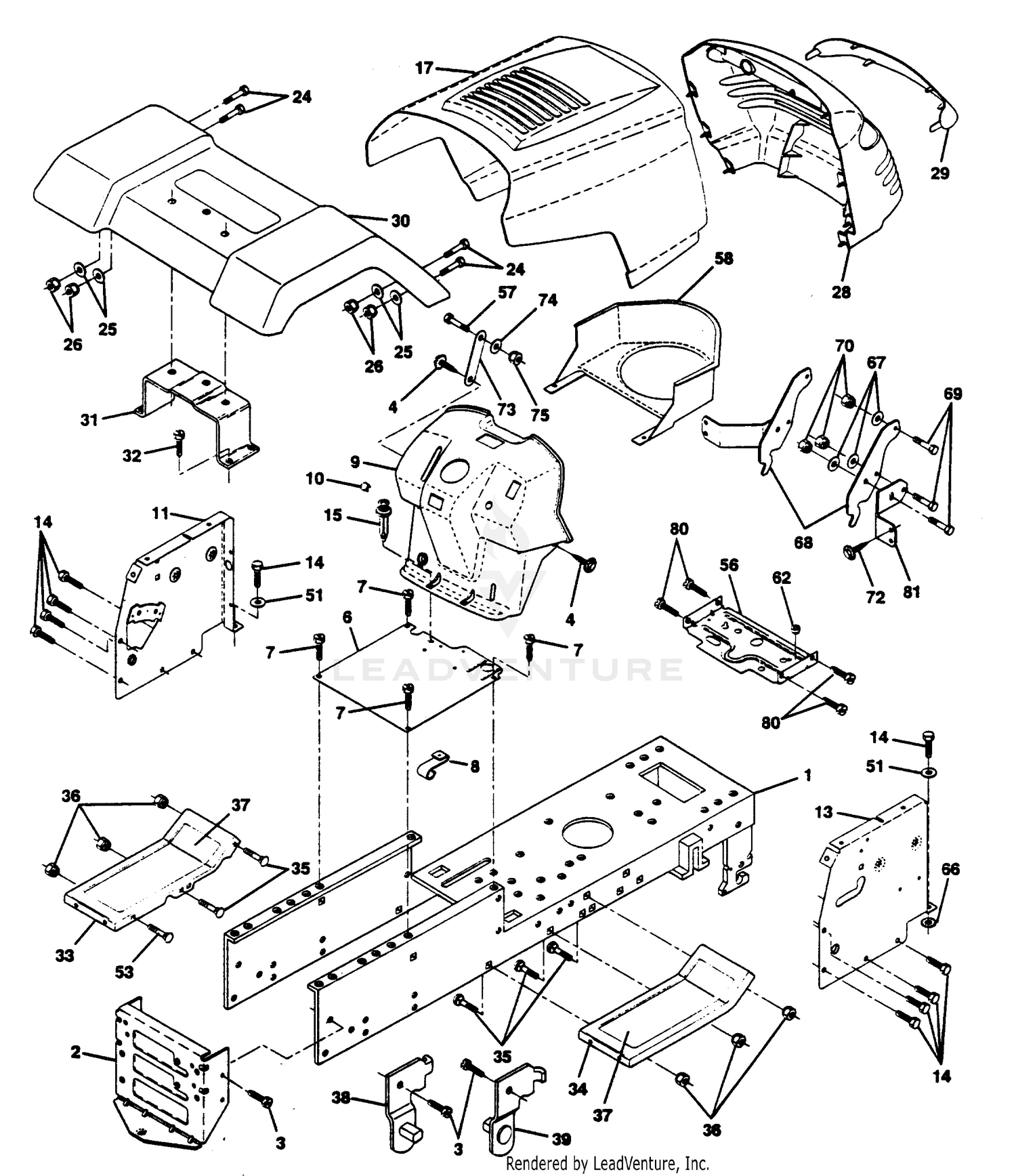

| Ref | Part Number | Description |
|---|
| 1 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 1 |
532145501 |
Chassis Weldment 11ga This part replaces 532140341. Price: $130.75 |
| 2 |
532145009 |
This part replaces 532140356. Price: $35.99 |
| 2 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 3 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 98-3945. Price: $582.35 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 4 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 4 |
874760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 This part replaces 817490412. Price: $3.99 |
| 5 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 6 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 6 |
532140169 |
Saddle LT Fender Shift Price: $8.99 |
| 7 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 8 |
532002751 |
Clip Line Fuel 13/32 Mtg Hole Price: $2.42 |
| 9 |
532140621 |
Dash Private Label Price: Call Us |
| 10 |
532005479 |
Plug Button Price: $2.99 |
| 11 |
532140311 |
Panel Pnt Dash Lh Price: $20.99 |
| 13 |
532140816 |
Panel Dash Rh Weldment Price: Call Us |
| 14 |
817490608 |
Screw Thdrol 3/8-16x1/2 Ty-tt Price: $3.99 |
| 15 |
532138096 |
Rivet Push Price: $3.99 |
| 17 |
532144473 |
Hood Paint Steel Private Label Price: Call Us |
| 24 |
874780616 |
Bolt Fin Hex 3/8-16unc X1 Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 28 |
532179100 |
GRILL ASSEMBLY This part replaces 532142552. Price: $165.99 |
| 29 |
532140273 |
Lens Grille Private Label Price: $16.99 |
| 30 |
532141324 |
Fender Pnt Price: Call Us |
| 31 |
532136619 |
Bracket Pnt Fender Price: $3.99 |
| 32 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 33 |
532124888 |
Footrest Pnt Lh Price: $3.33 |
| 34 |
532124889 |
Footrest Pnt Rh Price: $3.33 |
| 35 |
872110606 |
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 Price: $2.99 |
| 36 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 37 |
532133671 |
Pad Footrest Price: $7.99 |
| 38 |
532139886 |
Bracket, Asm. Pivot, L.H., Mower Rear Price: $5.99 |
| 39 |
532139887 |
Bracket, Asm. Pivot, R.H., Mower Rear Price: $5.99 |
| 51 |
819131216 |
Washer 13/32 x 3/4 x 16 Ga. Price: $2.99 |
| 53 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 56 |
532140281 |
Support Battery Price: $1.23 |
| 57 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 This part replaces 874780412. Price: $3.99 |
| 58 |
532150127 |
SUB= 150127 This part replaces 532140806. Price: $13.99 |
| 62 |
532124028 |
Bushing Price: $3.99 |
| 66 |
539990118 |
WASHER.3/8 This part replaces 811050600. Price: $1.49 |
| 67 |
819091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: $3.99 |
| 68 |
532140219 |
Hinge Pickoff Hood Price: $2.99 |
| 69 |
874760412 |
Bolt Hex Hd 1/4-20 Price: $3.99 |
| 70 |
873680400 |
Nut, Crownlock 1/4-20 Price: $2.69 |
| 72 |
532161464 |
Screw Hex WSHD 8-18 x 7/8 This part replaces 817030814. Price: $3.99 |
| 73 |
532142779 |
Brace Price: $2.99 |
| 74 |
819091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: $3.99 |
| 75 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 80 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
