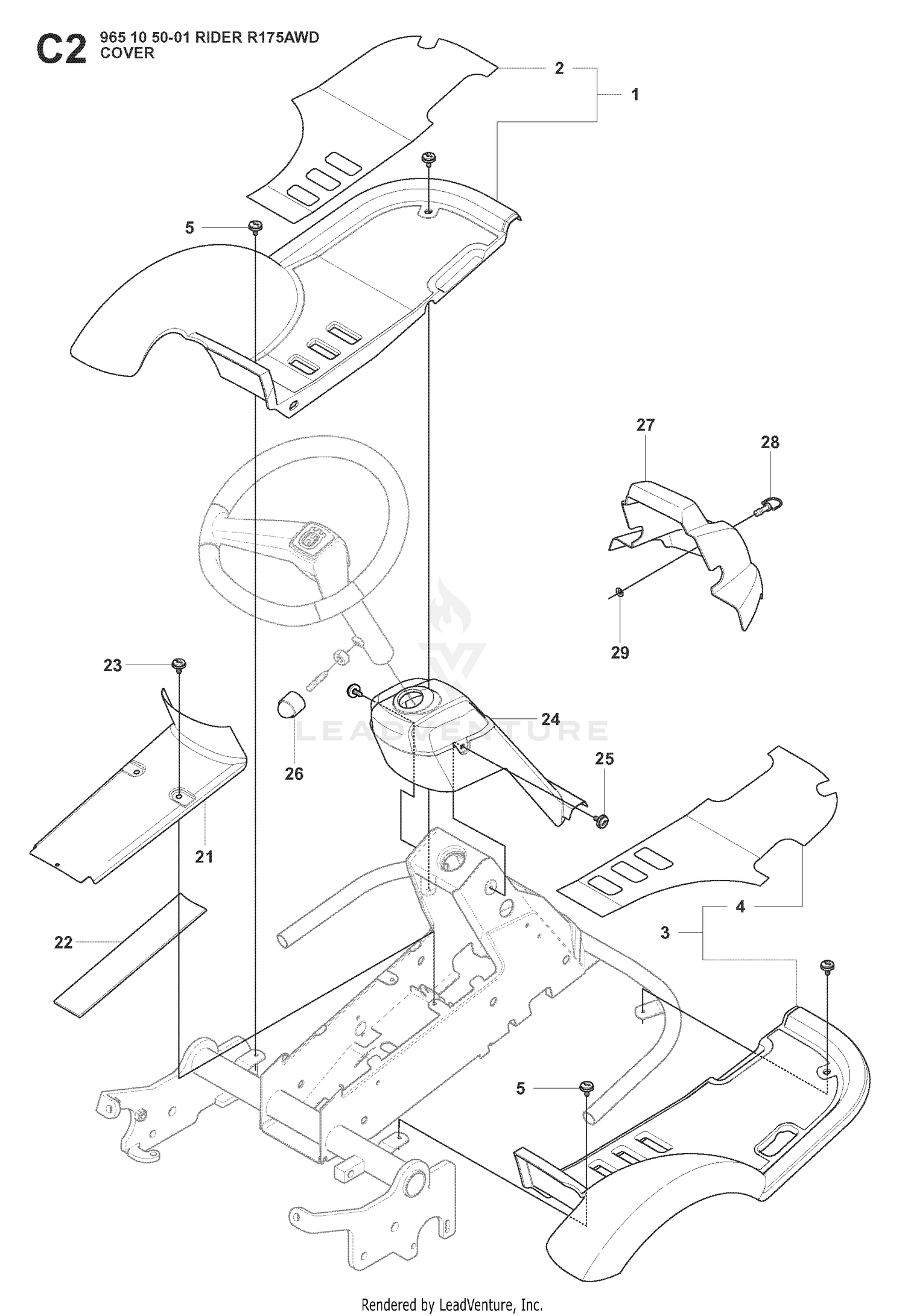

COVER 2
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-7595 | KIT - SUSPENSION SEAT This part replaces 125-3107. Price: $558.15 |
| 1 | 544895901 | FOOT PLATE Price: $39.99 |
| 2 | 544248401 | MAT Price: $7.99 |
| 3 | 544895903 | FOOT PLATE Price: $44.99 |
| 4 | 544248403 | MAT Price: $7.99 |
| 5 | 544400501 | SCREW Price: $3.99 |
| 6 | 3231-2 | BOLT-CARR Price: $0.81 |
| 7 | 120-0095-03 | SUPPORT-SEAT Price: $76.25 |
| 8 | 104-7201 | NUT-HF Price: $0.69 |
| 9 | 240-14 | BUMPER-RUBBER Price: $13.84 |
| 10 | 116-2670 | SCREW-SHOULDER Price: $4.79 |
| 11 | 3290-467 | PIN-HAIR Price: $0.27 |
| 12 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 13 | 1-633268 | GRIP-LEVER Price: $13.99 |
| 14 | 138-8239 | PIN-CLEVIS This part replaces 86-2130. Price: $4.34 |
| 15 | 140-7053 | LEVER-SEAT This part replaces 121-3390-03. Price: $25.57 |
| 16 | 121-3386 | SPRING-TORSION Price: $10.33 |
| 17 | 130-8754 | PROP-SEAT Price: $6.15 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 130-8767-03 | COVER-LH Price: $23.93 |
| 20 | 283-55 | PIN-CLEVIS Price: $11.14 |
| 21 | 130-8749 | SEAT PLATE ASM Price: $378.32 |
| 22 | 130-8768-03 | COVER-RH Price: $23.93 |
| 22 | 544427501 | MAT Price: $8.99 |
| 23 | 32144-10 | SCREW-HWH Price: $4.29 |
| 23 | 544400501 | SCREW Price: $3.99 |
| 24 | 544326501 | COVER Price: $24.99 |
| 25 | 544400501 | SCREW Price: $3.99 |
| 26 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 27 | 535433901 | COVER Price: $44.99 |
| 28 | 237-164 | GROMMET Price: $16.34 |
| 28 | 525390601 | BOLT This part replaces 506963501. Price: $8.99 |
| 29 | 506963601 | WASHER Price: $2.99 |
