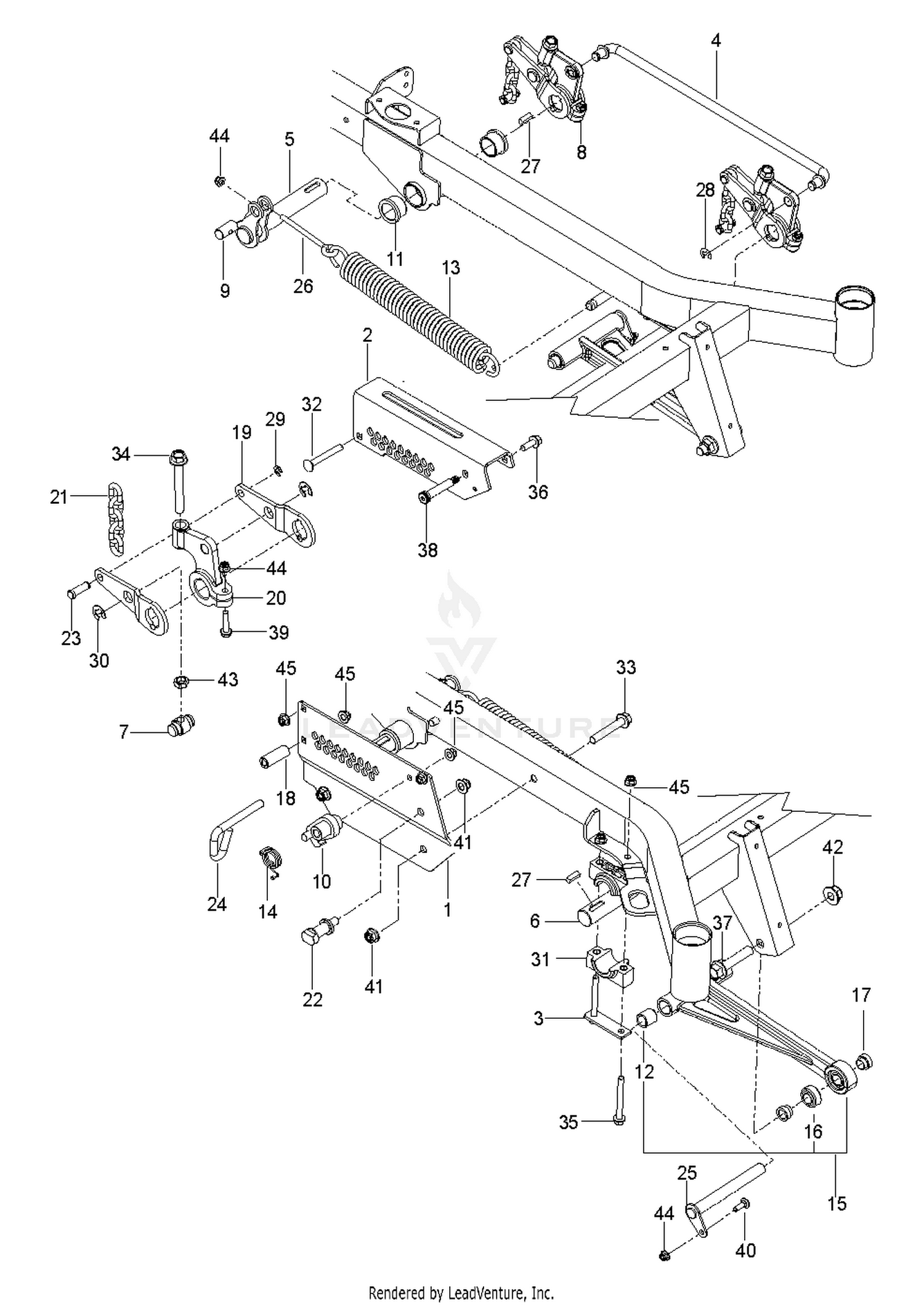

| Ref | Part Number | Description |
|---|
| 1 |
1-633545 |
SPACER Price: $2.39 |
| 1 |
510408502 |
PLATE, INNER HEIGHT, ORANGE Price: $84.99 |
| 2 |
100-4196 |
RING-RETAINING Price: $1.90 |
| 2 |
510408602 |
PLATE, OUTER HEIGHT ORG Price: $84.99 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 3 |
593634102 |
PLATE.PNT.PILLOW.BLOCK.EDIP This part replaces 525822201. Price: $2.99 |
| 4 |
107-3947 |
WASHER-NYLON Price: $0.92 |
| 4 |
510089802 |
Rods This part replaces 510089801. Price: $119.99 |
| 5 |
115-0169 |
WASHER-THRUST Price: $8.92 |
| 5 |
510410703 |
SHAFT, RR LIFT Price: $37.99 |
| 6 |
115-7210 |
WASHER-THRUST Price: $4.48 |
| 6 |
510409602 |
SHAFT, LIFT, FT Price: $84.99 |
| 7 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 7 |
510023601 |
SHAFT, LIFT TRUNION WSL Price: $17.99 |
| 8 |
122-0943 |
SENSOR-POSITION Price: $121.77 |
| 8 |
525465501 |
ASSEMBLY, DECK LIFT CRANK Price: $99.99 |
| 9 |
131-3187 |
V-RING Price: $9.99 |
| 9 |
510412302 |
Pivots This part replaces 510412301. Price: $6.99 |
| 10 |
131-5444 |
PIN Price: $26.53 |
| 10 |
510406802 |
Latch This part replaces 510406801. Price: $19.99 |
| 11 |
132-6439 |
SHAFT-SPLINE Price: $361.03 |
| 11 |
510089401 |
BUSHING, FLANGE 1.25 X 1.0 Price: $17.99 |
| 12 |
133-7622 |
CYLINDER-HYD Price: $404.07 |
| 12 |
510089201 |
BUSHING, SLEEVE 3/4 X 1.0 Price: $12.99 |
| 13 |
140-0486 |
ARM-LIFT, RH This part replaces 133-7626. Price: $174.59 |
| 13 |
510029201 |
SPRING, EXTENSION Price: $29.99 |
| 14 |
140-0488 |
ARM-LIFT, LH This part replaces 133-7628. Price: $174.59 |
| 14 |
510376601 |
SPRING, TORSION Price: $2.99 |
| 15 |
133-7638 |
PIN ASM Price: $81.70 |
| 15 |
510106501 |
ASSEMBLY, STRUT Price: $99.99 |
| 16 |
133-7800 |
SENSOR STOP ASM Price: $34.45 |
| 16 |
510083801 |
BALL JOINT, 3/4" SWIVEL Price: $44.99 |
| 17 |
133-7804 |
SHAFT-SENSOR Price: $48.91 |
| 17 |
596839401 |
Spacers This part replaces 510362501. Price: $5.99 |
| 18 |
133-7805 |
SPACER-SENSOR Price: $123.31 |
| 18 |
510408402 |
Spacers This part replaces 510408401. Price: $8.99 |
| 19 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 19 |
510410002 |
ARM LIFT BLK Price: $9.99 |
| 20 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
525465501 |
ASSEMBLY, DECK LIFT CRANK This part replaces 510022501. Price: $99.99 |
| 21 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 22 |
3250-48 |
SCREW-PPH Price: $0.49 |
| 22 |
510406702 |
Guides This part replaces 510406701. Price: $9.99 |
| 23 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 24 |
32120-72 |
RING-SNAP Price: $2.09 |
| 24 |
510016502 |
Pins This part replaces 510016501. Price: $7.99 |
| 25 |
515988202 |
Pins This part replaces 515988201. Price: $37.99 |
| 26 |
596637601 |
Bolts This part replaces 539120993. Price: $5.99 |
| 27 |
525822501 |
KEY, 5/16 SQ X 1.0 Price: $2.99 |
| 28 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 29 |
522705201 |
RING, E, 7/16 Price: $2.99 |
| 30 |
539102454 |
E RING 3/4 Price: $2.99 |
| 31 |
593634102 |
PLATE.PNT.PILLOW.BLOCK.EDIP This part replaces 525822201. Price: $2.99 |
| 32 |
596917501 |
Bolts This part replaces 539122728. Price: $1.99 |
| 33 |
596789601 |
Bolts This part replaces 874490848. Price: $3.99 |
| 34 |
525465701 |
HHFS 1/2-13 X 4 GR 5 Price: $19.99 |
| 35 |
596637401 |
Screws This part replaces 874490652. Price: $1.99 |
| 36 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 37 |
596438101 |
Bolts This part replaces 874451048. Price: $2.99 |
| 38 |
516035502 |
Bolts This part replaces 516035501. Price: $4.99 |
| 39 |
525465402 |
Screws This part replaces 525465401. Price: $1.99 |
| 40 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 41 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 42 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
| 43 |
596433401 |
Nuts This part replaces 539990625. Price: $2.99 |
| 44 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 45 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
