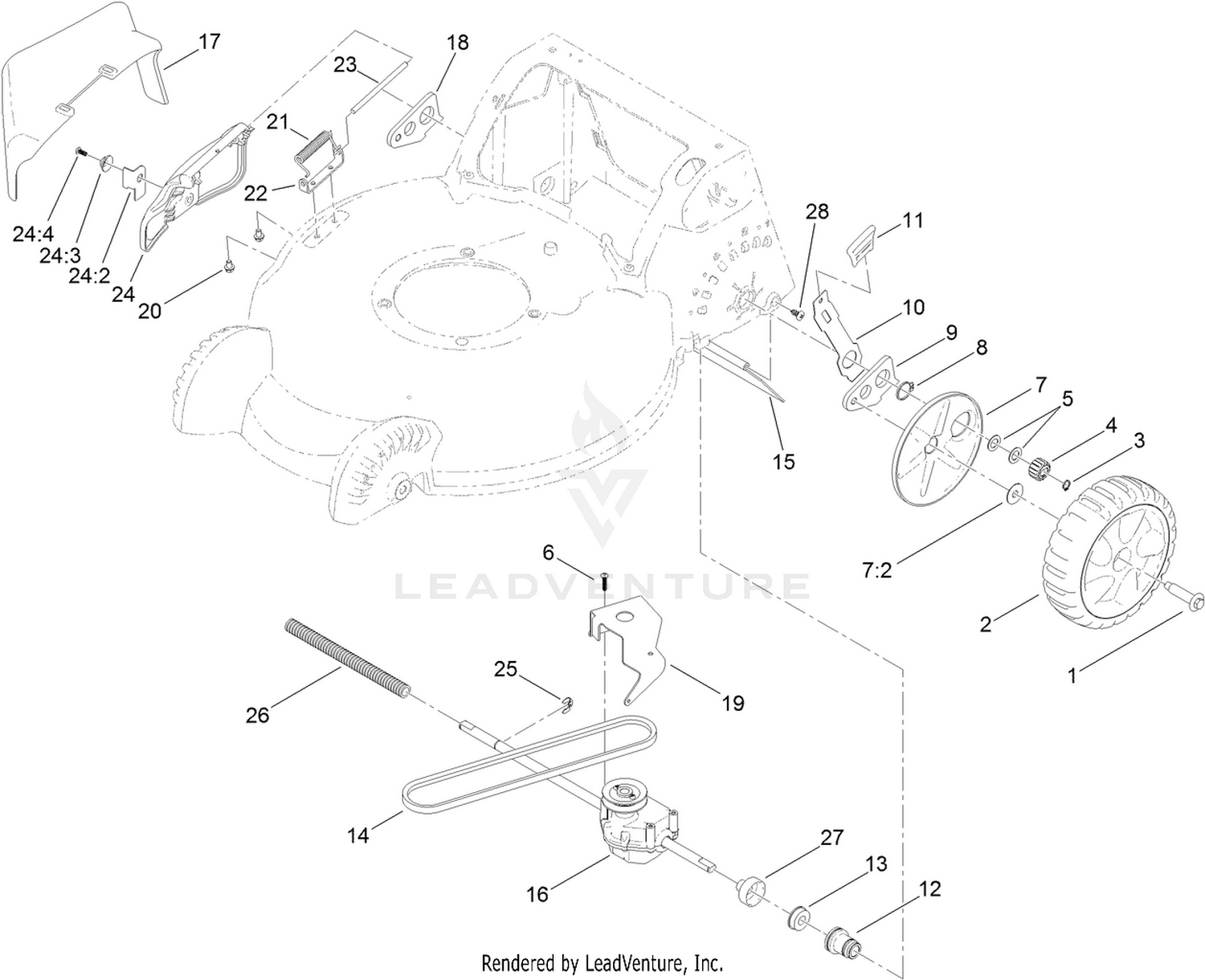

| Ref | Part Number | Description |
|---|
| 1 |
614650 |
BOLT-SHOULDER Price: $3.99 |
| 3 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 4 |
131-5399 |
GEAR-PINION, 15T This part replaces 110-9417. Price: $4.79 |
| 5 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 6 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 7 |
131-4513 |
WHEEL COVER ASM This part replaces 117-4197. Price: $9.99 |
| 8 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 9 |
108-9344 |
ARM-REAR PIVOT, LH Price: $11.99 |
| 10 |
110-9445 |
ARM-SPRING, REAR Price: $11.99 |
| 11 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 12 |
110-9422 |
RETAINER-BEARING Price: $18.99 |
| 13 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 14 |
110-9429 |
V-BELT Price: $15.99 |
| 15 |
120-7010 |
SHIELD-TRAILING Price: $38.99 |
| 16 |
121-9186 |
TRANSMISSION This part replaces 114-2812. Price: $140.99 |
| 17 |
105-3028 |
CHUTE-DISCHARGE, SIDE Price: $10.99 |
| 18 |
108-9343 |
ARM-REAR PIVOT, RH Price: $11.99 |
| 19 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 20 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 21 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 22 |
112-6416 |
BRACKET-COVER Price: $2.49 |
| 23 |
136-8672 |
HINGE PIN-DEFLECTOR This part replaces 99-5291. Price: $2.99 |
| 24 |
106-8376 |
DISCHARGE DOOR ASM Price: $12.99 |
| 25 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 26 |
24-7922 |
CONDUIT-CONVOLUTED, SPLIT Price: $9.99 |
| 27 |
114-2755 |
CAP-BEARING Price: $3.19 |
