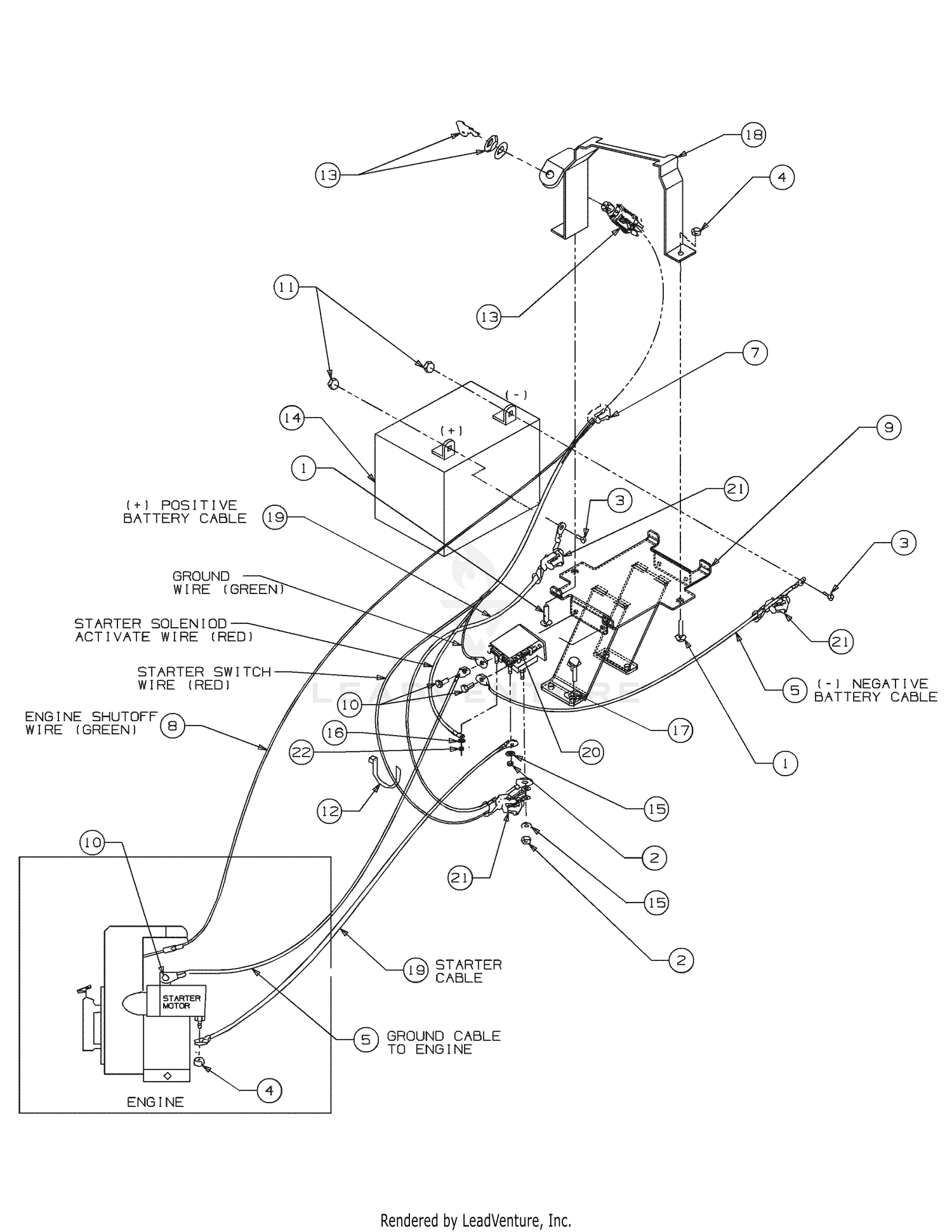

Electric Start Assembly

Electric Start Assembly

Parts (21)

RefPart NumberDescription
1 1186073 Carriage Screw, 1/4-20 x 1.25 Price: $2.67
2 912-3057 NUT-5/16X 24 This part replaces 1186211. Price: $5.94
3 1186309 SCREW-FLANGE Not Available Price:
4 1186389 Hex Locknut, 1/4-20 Price: $3.05
5 1901202 Cable (ground wire to starter motor bracket) Price: $30.69
7 725-04346 Wire Harness Assy. Not Available Price:
8 1917262 ASSM-WIRE SWITCH S Not Available Price:
9 686-04024-0638 BATTERY BRACKET ASSEMBLY (MTD RED) Not Available This part replaces 686-04024. Price:
10 710-0599 Self-tapping Screw, 1/4-20 x .5 Price: $3.86
11 712-3006 HEX NUT Price: $4.05
12 725-0157 Cable Tie Price: $3.46
13 925-0267B Ignition Switch This part replaces 725-0267B. Price: $33.31
14 925-1707D BATTERY Not Available This part replaces 725-1706A. Price:
15 936-0119 LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29
16 936-0147 EXTERNAL WASHER #10 Not Available This part replaces 736-0147. Price:
17 736-0607 External Lock Washer, 5/16 Price: $3.66
18 1900873 KEYSWITCH W/DECAL This part replaces GW-2614. Price: $142.31
19 GW-96510 Cable (solenoid to starter motor) Price: $10.43
20 GW-96514099 Solenoid (Incl. Nuts and Washers for Cables and Wires) This part replaces GW-96514. Price: $42.19
21 GW-97020 BOOT-BATTERY CABLE Not Available Price:
22 GW-9853 Hex Locknut, #10-32 Price: $6.01
