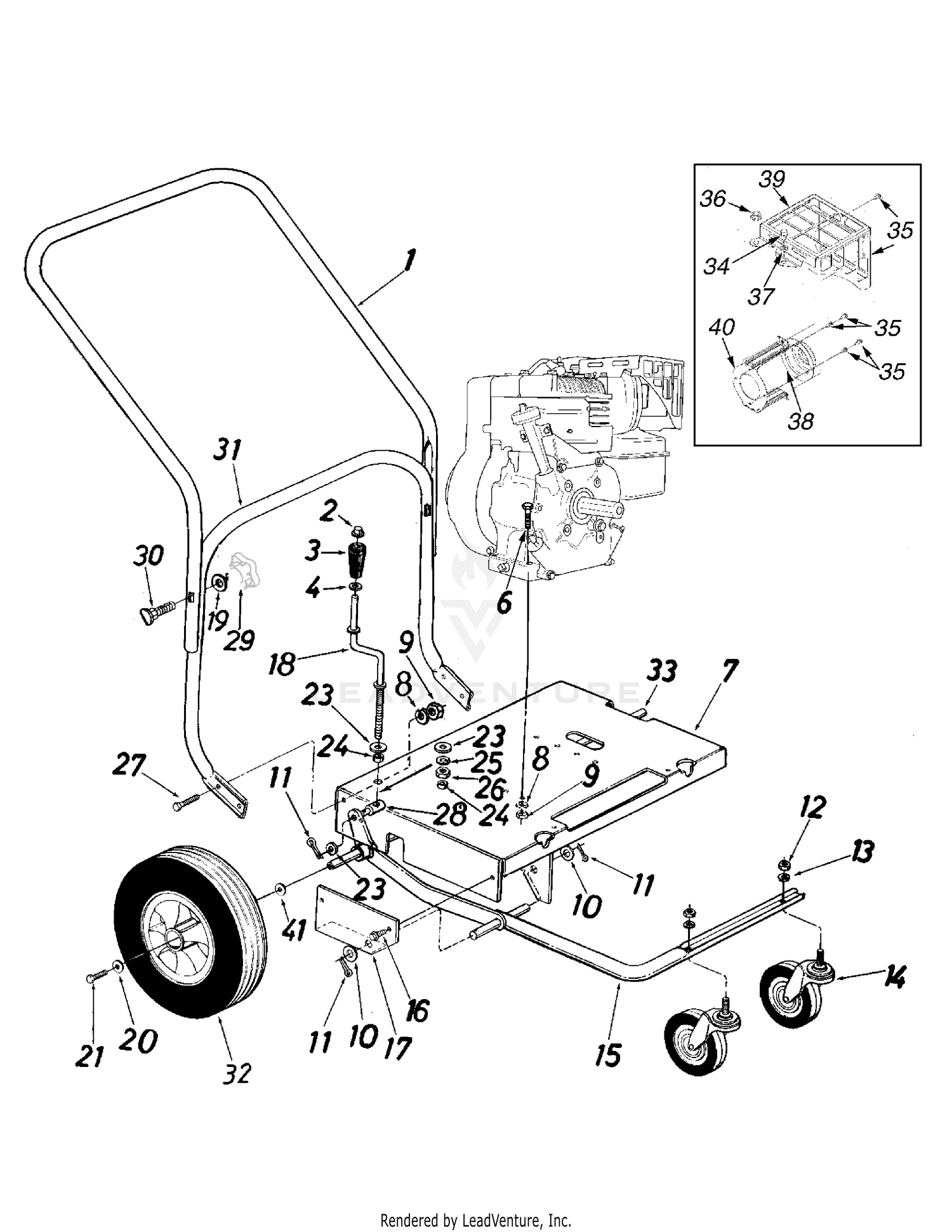

| Ref | Part Number | Description |
|---|
| 1 |
749-0784-0637 |
Upper Handle (Painted) This part replaces 749-0784. Price: $113.84 |
| 2 |
726-0100 |
Push Nut 3/8 Price: $3.75 |
| 3 |
920-0171 |
Knob - Black This part replaces 720-0171. Price: $13.76 |
| 4 |
936-0117 |
FLAT WASHER This part replaces 736-0117. Price: $6.20 |
| 6 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 7 |
16453 |
FRAME ASSEMBLY-ENG MOUNTING Not Available Price: |
| 8 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 9 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 10 |
736-0187 |
Flat Washer.63 ID x 1.25 Price: $4.02 |
| 11 |
714-0115 |
Cotter Pin Price: $3.48 |
| 12 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 13 |
736-0921 |
Lock Washer 1/2 Price: $3.90 |
| 14 |
734-1036 |
Swivel Caster Wheel 5" Dia x 1.25 Price: $66.73 |
| 15 |
16273 |
CASTER ARM ASSEMBLY Not Available Price: |
| 16 |
710-0726 |
Hex Washer Screw 5/16x.75 Price: $3.82 |
| 17 |
14529 |
CASTER ARM BRACKET Not Available Price: |
| 18 |
747-0542 |
HEIGHT ADJUSTMENT CRANK Not Available Price: |
| 19 |
736-0451 |
Saddle Washer.32 ID x.93 OD Price: $3.75 |
| 20 |
736-0159 |
Flat Washer.34 ID x.87 OD Price: $3.71 |
| 21 |
710-0170 |
Hex Lock Bolt 5/16-24 x.64 Price: $5.72 |
| 23 |
736-0300 |
Flat Washer.38 ID x.57 OD Price: $3.93 |
| 24 |
950-0528 |
SPACER Not Available This part replaces 750-0528. Price: |
| 25 |
736-0169 |
Lock Washer 3/8 ID Price: $3.33 |
| 26 |
712-0354 |
HEX NUT Not Available Price: |
| 27 |
710-0118 |
Hex Bolt 5/16-18 x.75 Price: $3.76 |
| 28 |
711-0797 |
FERRULE Not Available Price: |
| 29 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04052. Price: $6.07 |
| 30 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 31 |
749-0785 |
LOWER HANDLE Not Available Price: |
| 32 |
734-1035 |
WHEEL ASSEMBLY W/TIRE 12 x 3 Not Available Price: |
| 33 |
738-0185 |
REAR AXLE Not Available Price: |
| 41 |
736-0162 |
Flat Washer Price: $3.86 |
