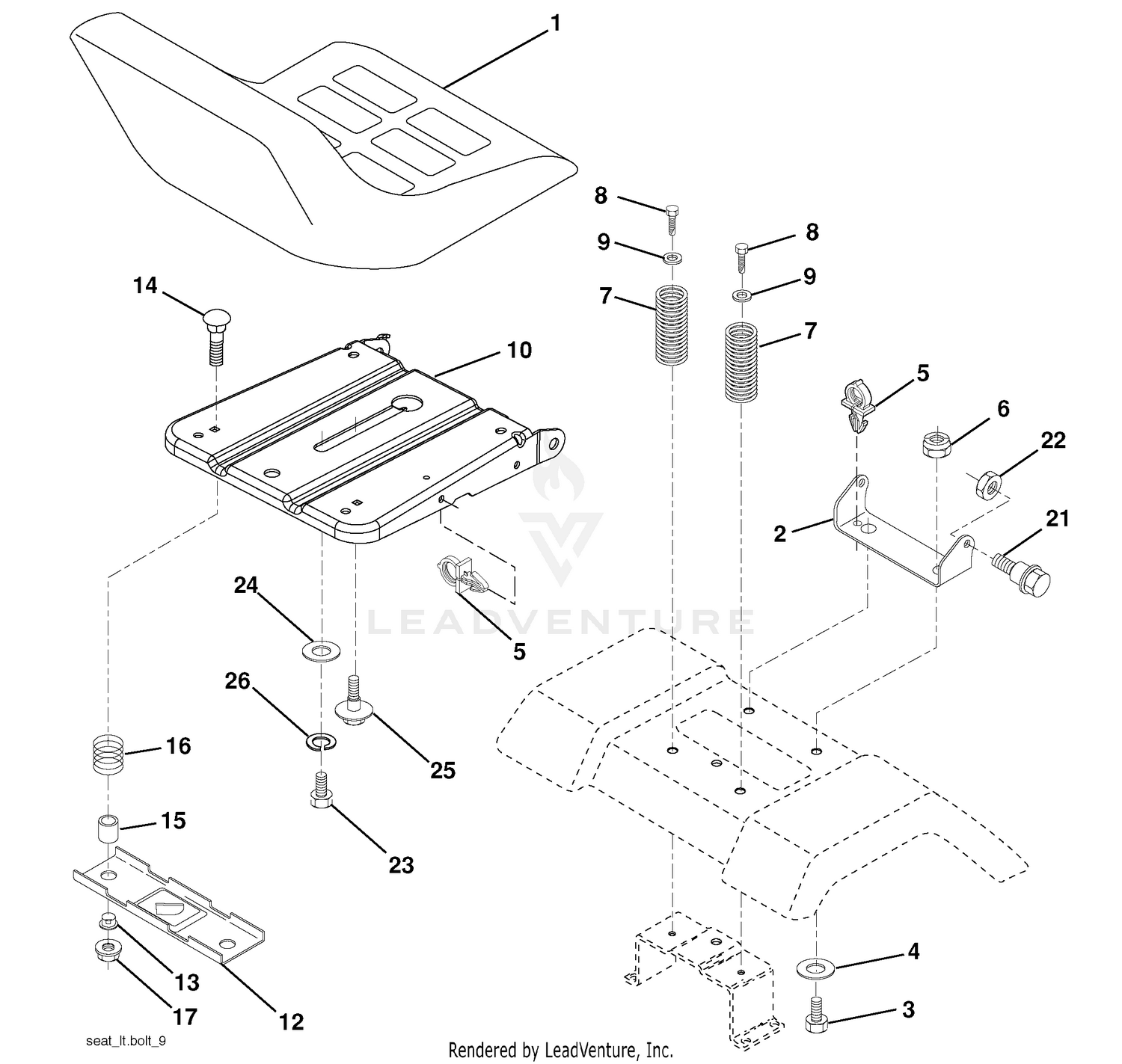

| Ref | Part Number | Description |
|---|
| 1 |
401042 |
Seat Price: Call Us |
| 1 |
42-9250 |
BOLT Price: $1.63 |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 2 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 x 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 1 x10 Ga. Price: Call Us |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 6 |
33114-020 |
SCREW-HH Price: $0.28 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
108-8011 |
ADAPTER PLATE KIT This part replaces 100-5632-03. Price: $495.79 |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
100-5635 |
PIN-PLATE Price: $7.87 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
58-3590 |
DOWEL Price: $5.50 |
| 10 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 10 |
195530 |
Pan Asm. Seat Price: Call Us |
| 11 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 13 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 14 |
70-8470 |
SCREW-HH Price: $1.76 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 21 |
171852 |
Bolt Shoul der 5/16-18 unc-2A Price: Call Us |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 25 |
127018X |
Bolt Shoul der 5/16-18 x .62 Price: Call Us |
