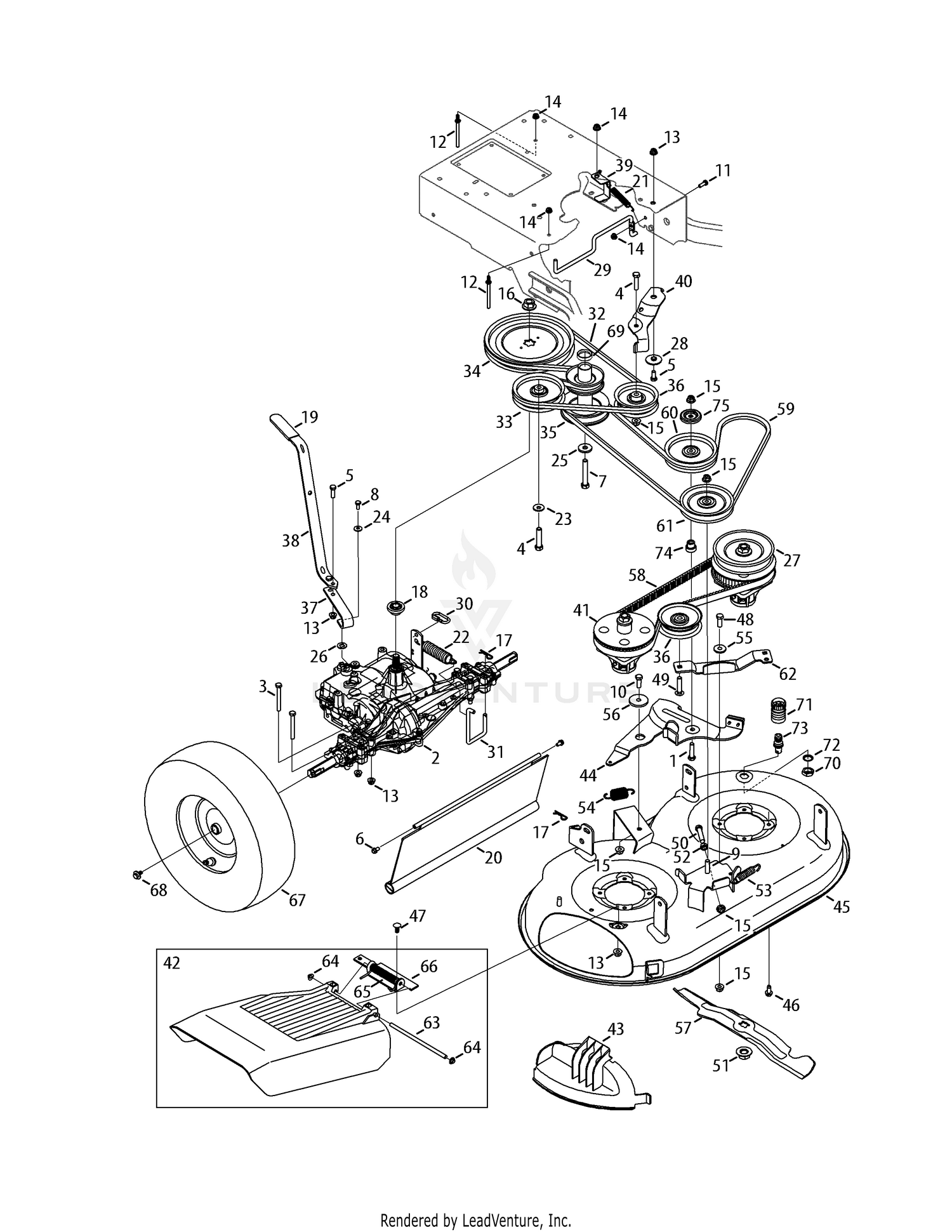

| Ref | Part Number | Description |
|---|
| 1 |
710-3005 |
Hex Head Cap Screw, 3/8-16 x 1.75 Price: $3.61 |
| 3 |
710-0176 |
Hex Head Cap Screw, 5/16-18 x 2.75 Price: $3.89 |
| 4 |
710-0347 |
Hex Head Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 5 |
710-0376 |
Hex Head Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 6 |
710-04669 |
Screw, 10-16 x 0.625 Price: $2.98 |
| 7 |
710-04377 |
HHCS, 7/16-20 x 2.75 Price: $9.74 |
| 8 |
710-0513A |
BOLT 1/4-28 X .625 GR8 This part replaces 710-0513. Price: $4.04 |
| 9 |
710-0520 |
Hex Head Cap Screw, 3/8-16 x 1.50 Price: $3.93 |
| 10 |
710-3005 |
Hex Head Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 11 |
710-3015 |
Hex Head Cap Screw, 1/4-20 x .75 Price: $3.65 |
| 12 |
911-1000 |
Belt Keeper, .25 DIA X 3.0 Price: $9.62 |
| 13 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 15 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 17 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 18 |
718-04407 |
Spline Pulley Hub, 5/8 Price: $11.11 |
| 19 |
720-04191 |
Grip, Red Price: $3.70 |
| 20 |
731-05766 |
Trailshield, 8.35 x 19.17 Price: $31.56 |
| 21 |
732-04409 |
Extension Spring, Wheel Drive Price: $7.78 |
| 22 |
732-04443A |
Extension Spring, Brake Price: $11.50 |
| 23 |
736-0105 |
Washer, Spring, .401 x .870 x .063 Price: $3.96 |
| 24 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 25 |
736-0322 |
Washer, Flat, .450 x 1.250 x .164 Price: $8.42 |
| 26 |
736-04256 |
Washer, Flat, .39 x .87 x .06 Price: $6.01 |
| 27 |
918-04438C |
Drive Spindle Assembly Price: $196.46 |
| 28 |
738-04166 |
Spacer, Shoulder, .5000 x .1475 Price: $5.48 |
| 29 |
747-04635A |
Belt Keeper Rod Price: $43.12 |
| 30 |
747-05571 |
Coupling Link, 3/16 Price: $22.27 |
| 31 |
747-04678A |
Brake Spring Mounting Rod Price: $12.21 |
| 32 |
954-04145A |
V Belt. 4L 64.2 Price: $34.37 |
| 33 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129C. Price: $33.06 |
| 34 |
756-04258 |
Flat Sheave, DIA 7.75 Price: $57.91 |
| 35 |
756-04260 |
Engine Pulley, 3.20 x 4.35 DIA Price: $81.86 |
| 36 |
756-04280A |
Idler Pulley, 3.50 DIA Price: $36.29 |
| 37 |
787-01469B-4033 |
Lower Shaft Lever Price: $41.42 |
| 38 |
787-01470A-4033 |
Upper Shaft Lever Price: $49.86 |
| 39 |
787-01473A-0637 |
Belt Keeper, .375 x 2.00 Price: $21.73 |
| 40 |
787-01523A |
Wheel Drive Idler Bracket Price: $10.24 |
| 41 |
918-04439C |
Spacer Spindle Assembly Price: $179.56 |
| 42 |
931-04244 |
Chute Deflector Assembly Price: $61.70 |
| 43 |
631-04252 |
Mulch Cover Price: $29.62 |
| 44 |
987-02420 |
Idler Arm Assembly Price: $66.18 |
| 45 |
687-02476-4033 |
Deck Assembly Price: $370.21 |
| 46 |
710-1260A |
Screw, 5/16-18 x .750 Price: $3.34 |
| 47 |
710-0451 |
Bolt, Carriage, 5/16-18 x .750 Price: $3.53 |
| 48 |
710-0514 |
Hex Head Cap Screw, 3/8-16 x 1.00 Price: $3.78 |
| 49 |
710-0560 |
Screw, Carriage, 3/8-16 x 1.75 Price: $5.94 |
| 50 |
710-3184A |
Hex Head Cap Screw, 3/8-16 x 2.00 Price: $6.01 |
| 51 |
712-0417A |
HEX NUT Price: $6.50 |
| 52 |
912-3017 |
Hex Nut, 3/8-16 Price: $3.90 |
| 53 |
732-04406 |
Extension Spring, Timing Belt Price: $9.24 |
| 54 |
732-04452 |
Extension Spring, Deck Brake Price: $7.99 |
| 55 |
938-0347 |
Shoulder Spacer, .625 ID x .169 Price: $8.93 |
| 56 |
738-04162C |
Shoulder Spacer, .8840 x .190 Price: $12.76 |
| 58 |
754-04136 |
Timing Belt, .315 x .787 Price: $67.98 |
| 59 |
954-04139 |
Aramid V Belt, 72.2 Price: $31.92 |
| 60 |
756-05042 |
Idler Pulley, 4.25" DIA Price: $25.54 |
| 61 |
756-0616 |
Idler Pulley, V-Type, 5.0 DIA Price: $66.92 |
| 62 |
787-01440-0637 |
Timing Idler Bracket Price: $17.48 |
| 63 |
711-04027 |
Deflector Pin Price: $12.36 |
| 64 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 65 |
732-04012 |
Deflector Torsion Spring Price: $11.20 |
| 66 |
787-01017A-0637 |
Deflector Hinge Bracket Price: $36.45 |
| 67 |
634-04285-0911 |
Wheel, 16 x 4 x 8 Price: $300.23 |
| 68 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 69 |
750-05516 |
Spacer, 1.0 x 1.28 x .31 (420CC) Price: $25.21 |
| 70 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 71 |
921-04041 |
Water Nozzle Adaptor Price: $20.19 |
| 72 |
736-0225 |
Washer, Lock, 5/8 Price: $3.90 |
| 73 |
737-04003D |
Deck Water Nozzle Price: $20.69 |
| 74 |
748-05029A |
Shoulder Spacer Idler This part replaces 748-05029. Price: $4.19 |
| 75 |
783-08389 |
Pulley Cap Price: $5.23 |
