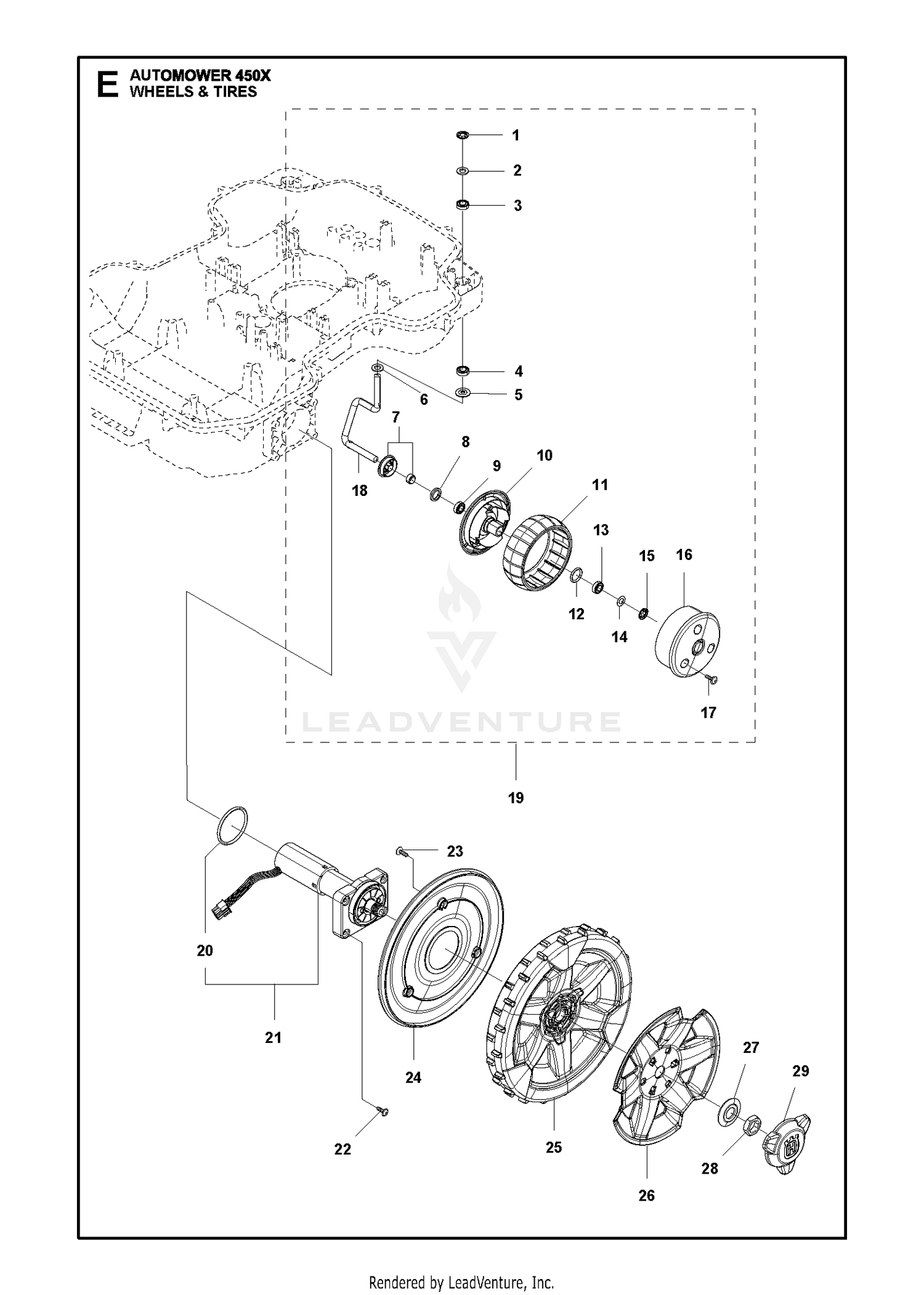

| Ref | Part Number | Description |
|---|
| 1 |
576019302 |
LOCKWASHER PUSH-ON TYPE P 8 BV Price: $3.99 |
| 2 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 3 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 4 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 5 |
535087803 |
WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 6 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 7 |
581621501 |
SHIELD KIT Price: $6.99 |
| 8 |
580487101 |
SEALING 12X18X3 Price: $4.99 |
| 9 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 10 |
579457101 |
WHEEL FRONT WHEEL INSIDE Price: $4.99 |
| 11 |
574449801 |
WHEEL RUBBER TYRE Price: $7.99 |
| 12 |
580445101 |
O-RING 2,62X15,54 Price: $3.99 |
| 13 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 14 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 15 |
576019302 |
LOCKWASHER PUSH-ON TYPE P 8 BV Price: $3.99 |
| 16 |
579457201 |
WHEEL FRONT WHEEL OUTSIDE Price: $5.99 |
| 17 |
575543314 |
SCREW 14MM Price: $3.99 |
| 18 |
580336102 |
SPINDLE This part replaces 580336101. Price: $9.99 |
| 19 |
581621402 |
Wheels This part replaces 581621401. Price: $59.99 |
| 21 |
581621307 |
MOTOR KIT DRIVE WHEEL P2 This part replaces 581621303. Price: $329.99 |
| 22 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 23 |
575543314 |
SCREW 14MM Price: $3.99 |
| 24 |
582280201 |
WHEEL ASSY D249 HVA LIGHT GREY This part replaces 579505602. Price: $29.99 |
| 25 |
582280203 |
NEEDS DESCRIPTION This part replaces 579506003. Price: $44.99 |
| 26 |
579505702 |
COVER REAR WHEEL NO PAINT This part replaces 579505701. Price: $17.99 |
| 27 |
586210601 |
WASHER WASHER REAR WHEEL 16X40 Price: $5.99 |
| 28 |
731432401 |
HEXAGON THIN NUT Price: $6.99 |
| 29 |
579505502 |
HUB CAP REAR WHEEL NO CENTER P Price: $4.99 |
