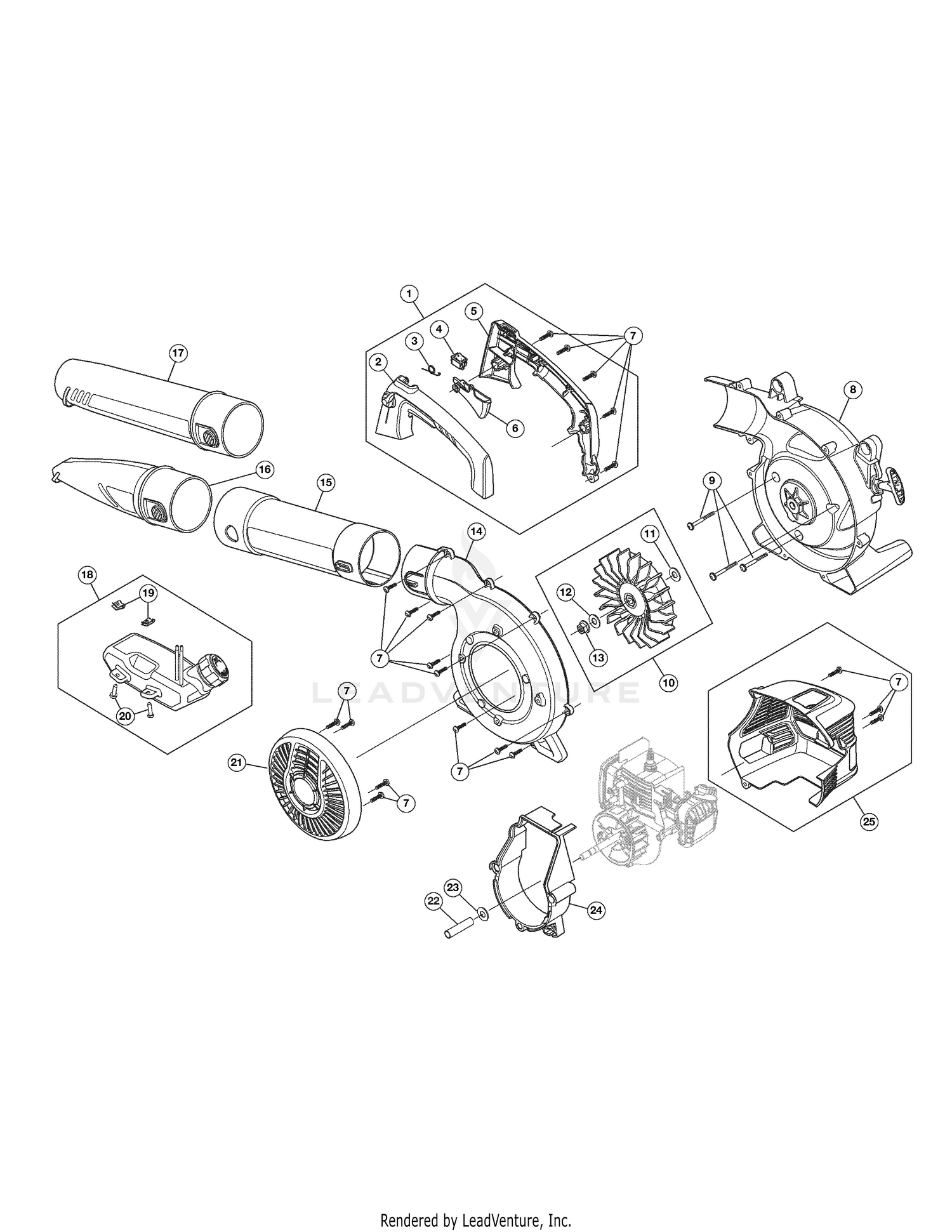

General Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-08532 | Handle Assembly Price: $11.05 |
| 2 | 841-012313S | Handle (LH) Price: $5.17 |
| 3 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 4 | 725-05280 | On/Off Switch Price: $5.52 |
| 5 | 731-10776A-10 | HANDLE (RH) This part replaces 731-10776-10. Price: $2.71 |
| 6 | 731-09987-1 | Throttle Trigger Price: $2.72 |
| 7 | 710-04194 | Screw Price: $3.66 |
| 8 | 753-08534 | Impeller Housing Assembly (RH) (Incl. 9) Price: $28.31 |
| 9 | 710-06341 | Screw Price: $2.72 |
| 10 | 753-08491 | Impeller Assembly Price: $6.86 |
| 11 | 736-05080 | FLAT WASHER .401X.88 Price: $2.72 |
| 12 | 736-04110A | Lock Washer Price: $4.55 |
| 13 | 712-04137 | Nut Price: $6.07 |
| 14 | 753-08533 | Impeller Housing Assembly (LH) (Incl. 7) Price: $10.52 |
| 15 | 731-10598 | Upper Blower Tube Price: $6.38 |
| 16 | 731-11154 | NOZZLE Price: $4.56 |
| 17 | 731-10782 | Lower Blower Tube Price: $6.38 |
| 18 | 753-08508 | Fuel Tank Assembly Price: $19.29 |
| 19 | 791-182366 | U-Shaped Nut Price: $4.90 |
| 20 | 791-181930 | Screw Price: $5.95 |
| 21 | 753-08511 | INTAKE COVER Not Available Price: |
| 22 | 750-06367 | Shaft Spacer Price: $2.72 |
| 23 | 736-05080 | FLAT WASHER .401X.88 Price: $2.72 |
| 24 | 753-08496 | Engine Adapter (Incl. 9) Not Available Price: |
