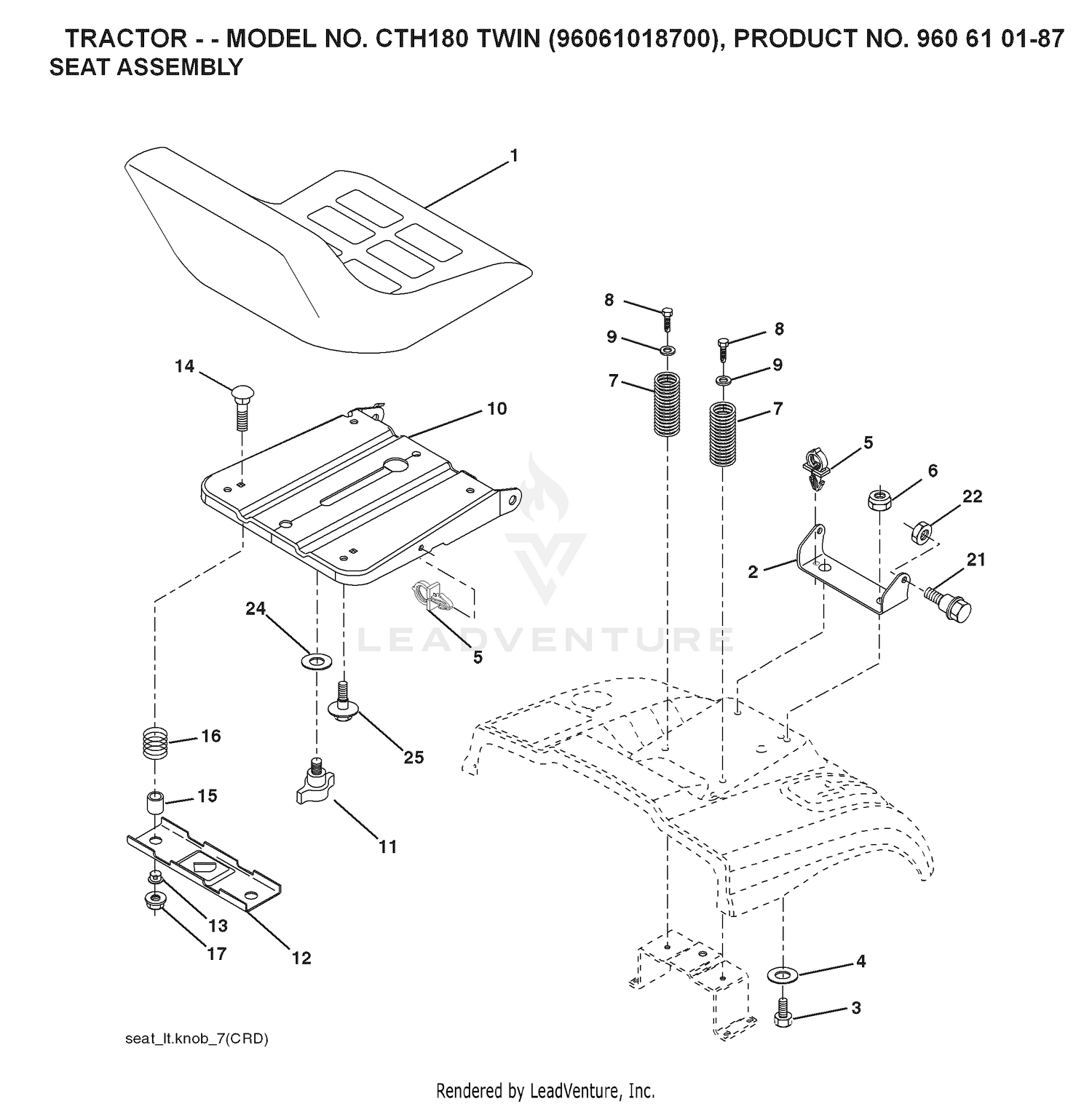

| Ref | Part Number | Description |
|---|
| 1 |
33013-00 |
NUT-HEX Price: $0.25 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
144-6182 |
PLATE-CLUTCH This part replaces 43-6110-03. Price: $25.59 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
43-6320 |
COLLAR Price: $24.71 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
69-9170 |
SHAFT-CRUISE Price: $17.03 |
| 8 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $17.99 |
| 11 |
321-5 |
SCREW-HH Price: $0.22 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
3217-5 |
NUT-HEX Price: $0.25 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
321-9 |
SCREW-HH Price: $0.27 |
| 19 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 20 |
106-5233 |
CABLE-TRACTION Price: $132.81 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
119-9359 |
BRACKET-CABLE, REAR Price: $28.73 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
2412-93 |
CLAMP-R Price: $1.02 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
2412-102 |
CLAMP-R Price: $6.85 |
