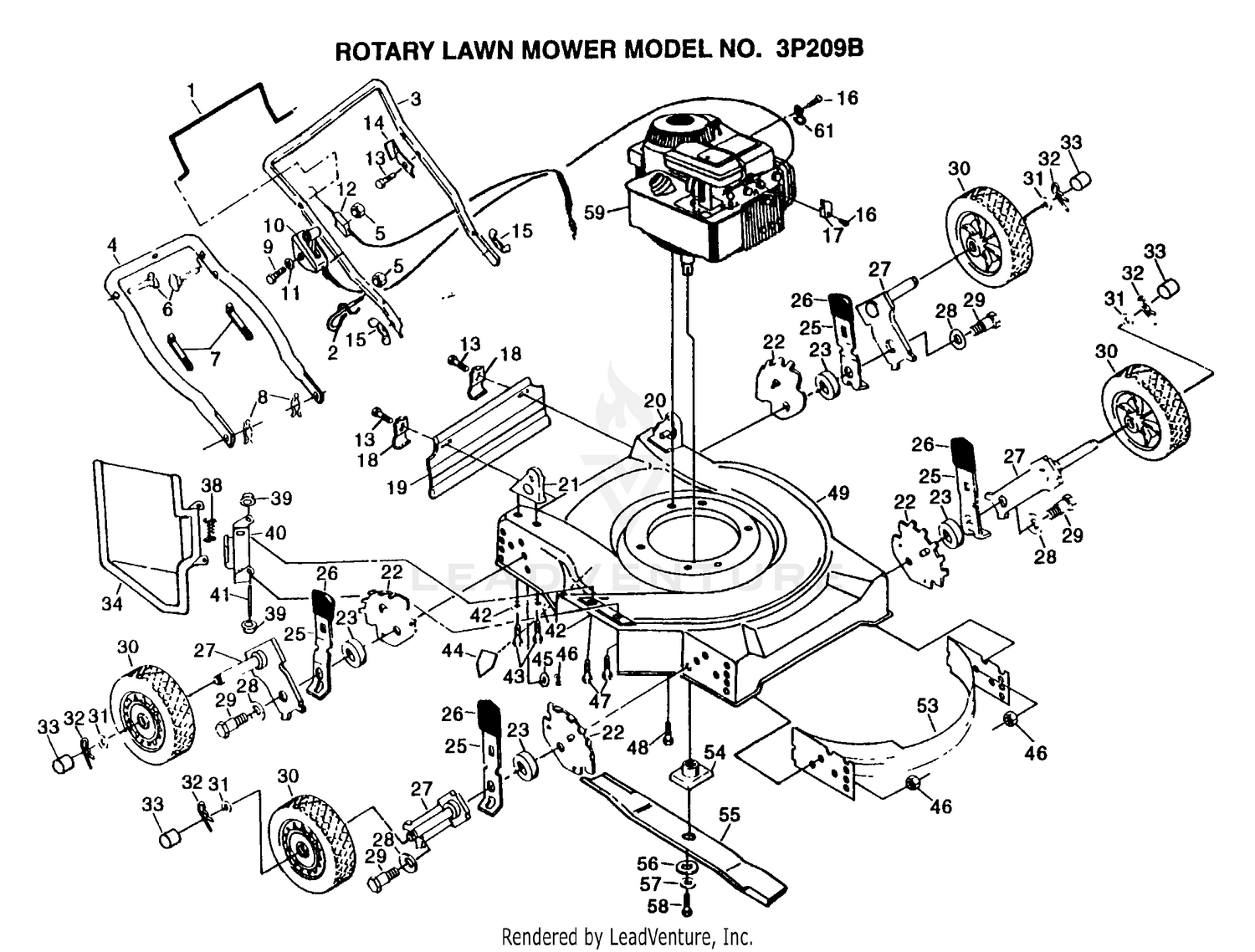

| Ref | Part Number | Description |
|---|
| GCK |
2200 |
SUB= GCK3200A Price: Call Us GCK |
| 1 |
121-4698 |
NUT-KEPS This part replaces 32149-5. Price: $1.15 |
| 1 |
86902 |
CONTROL BAR PM Price: Call Us |
| 2 |
132001 |
ROPE GUIDE Price: Call Us |
| 3 |
132649X479 |
SUB= 160223X479 Price: Call Us |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
84676X479 |
SUB= 151516X479 Price: Call Us |
| 5 |
63601 |
SUB= 73800400 Price: Call Us |
| 6 |
131959 |
BOLT.HANDLE.LM Price: Call Us |
| 7 |
664-26 |
SUB= 7192J Price: Call Us |
| 8 |
51793 |
HAIRPIN COTTER Price: Call Us |
| 9 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
851462 |
CONTROL THROTTLE Price: Call Us |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
750097 |
TAPPING SCREW Price: Call Us |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
83816 |
SCREW PM Price: Call Us |
| 17 |
213146 |
CABLE CLAMP Price: Call Us |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
140540 |
SKIRT.REAR.FGD.22 Price: Call Us |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 20 |
701971X479 |
SUB= 150959 Price: Call Us |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
701969X479 |
SUB= 150959 Price: Call Us |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
700328X007 |
BRACKET.WHL.ADJ.9 Price: Call Us |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3574 |
SHIM-BEARING, FRONT (.102) Price: $23.68 |
| 22 |
72-3575 |
SHIM-BEARING, FRONT (.104) Price: $22.53 |
| 22 |
72-3576 |
SHIM-BEARING, FRONT (.106) Price: $23.68 |
| 22 |
72-3577 |
SHIM-BEARING, FRONT (.108) Price: $22.53 |
| 22 |
72-3578 |
SHIM-BEARING, FRONT (.110) Price: $22.53 |
| 22 |
72-3580 |
SHIM-BEARING, FRONT (.112) Price: $22.53 |
| 22 |
72-3581 |
SHIM-BEARING, FRONT (.114) Price: $22.53 |
| 22 |
72-3582 |
SHIM-BEARING, FRONT (.116) Price: $22.53 |
| 22 |
72-3583 |
SHIM-BEARING, FRONT (.118) Price: $56.93 |
| 22 |
72-3584 |
SHIM-BEARING, FRONT (.120) Price: $24.63 |
| 22 |
72-3585 |
SHIM-BEARING, FRONT (.125) Price: $22.53 |
| 22 |
72-3586 |
SHIM-BEARING, FRONT (.127) Price: $22.53 |
| 22 |
72-3587 |
SHIM-BEARING, FRONT (.129) Price: $23.68 |
| 22 |
72-3588 |
SHIM-BEARING, FRONT (.131) Price: $22.53 |
| 22 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 22 |
72-3591 |
SHIM-BEARING, FRONT (.135) Price: $21.44 |
| 22 |
72-3592 |
SHIM-BEARING, FRONT (.137) Price: $22.53 |
| 22 |
72-3593 |
SHIM-BEARING, FRONT (.139) Price: $23.68 |
| 22 |
72-3594 |
SHIM-BEARING, FRONT (.141) Price: $23.68 |
| 22 |
72-3595 |
SHIM-BEARING, FRONT (.143) Price: $22.53 |
| 22 |
72-3596 |
SHIM-BEARING, FRONT (.145) Price: $22.53 |
| 22 |
72-3597 |
SHIM-BEARING, FRONT (.147) Price: $22.53 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
84920 |
SUB= 146630 Price: Call Us |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
700331X004 |
SPRING SELECTOR Price: Call Us |
| 26 |
87877 |
KNOB PM Price: Call Us |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
85021X004 |
AXLE ARM Price: Call Us |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 29 |
142748 |
BOLT SHLD 3/8-16 Price: Call Us |
| 29 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 30 |
800220 |
WHEEL.ASM Price: Call Us |
| 31 |
110-4136 |
DIFFERENTIAL CASE ASM Price: $796.59 |
| 31 |
52160 |
WASHER Price: Call Us |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
85179 |
RETAINER CLIP PM Price: Call Us |
| 33 |
800090 |
HUB CAP-PLASTIC Price: Call Us |
| 34 |
108-1422-03 |
DISCONTINUED Price: Call Us |
| 34 |
145282 |
GUARD.DISCH.22SD. Price: Call Us |
| 35 |
146365 |
BAIL.PLUG.MUL.22. Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
146343X004 |
LATCH.PLUG.22SD Price: Call Us |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
146345 |
SUB= 150117 Price: Call Us |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
145286 |
SUB= 152186 Price: Call Us |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
147775 |
BRACKET.HINGE.W/F Price: Call Us |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
147286 |
ROD.HINGE.COMBI-C Price: Call Us |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
59289 |
STEEL WASHER Price: Call Us |
| 42 |
93-3618 |
GEAR AND PINION ASM Price: $1,107.66 |
| 43 |
55187 |
SCREW Price: Call Us |
| 44 |
107339X |
DECAL HYT Price: Call Us |
| 45 |
61537 |
SUB= 19132012 Price: Call Us |
| 46 |
751592 |
LOCKNUT PM Price: Call Us |
| 48 |
850998 |
SCREW Price: Call Us |
| 49 |
702208 |
KIT.HSG.22SD.PUSH Price: Call Us |
| 53 |
700929X479 |
BAFFLE.FRT/REAR Price: Call Us |
| 54 |
850977 |
BLADE ADAPTOR Price: Call Us |
| 57 |
850263 |
LOCKWASHER Price: Call Us |
| 58 |
851084 |
SCREW Price: Call Us |
| 61 |
87930 |
GUIDE CLIP PM Price: Call Us |
| 145653 |
MANUAL.OP.GEN.RTA |
Price: Call Us 145653 |
| 145654 |
MANUAL.OP.GEN.RTA |
Price: Call Us 145654 |
| 149346 |
MAN.PTS.3P202B. |
Price: Call Us 149346 |
