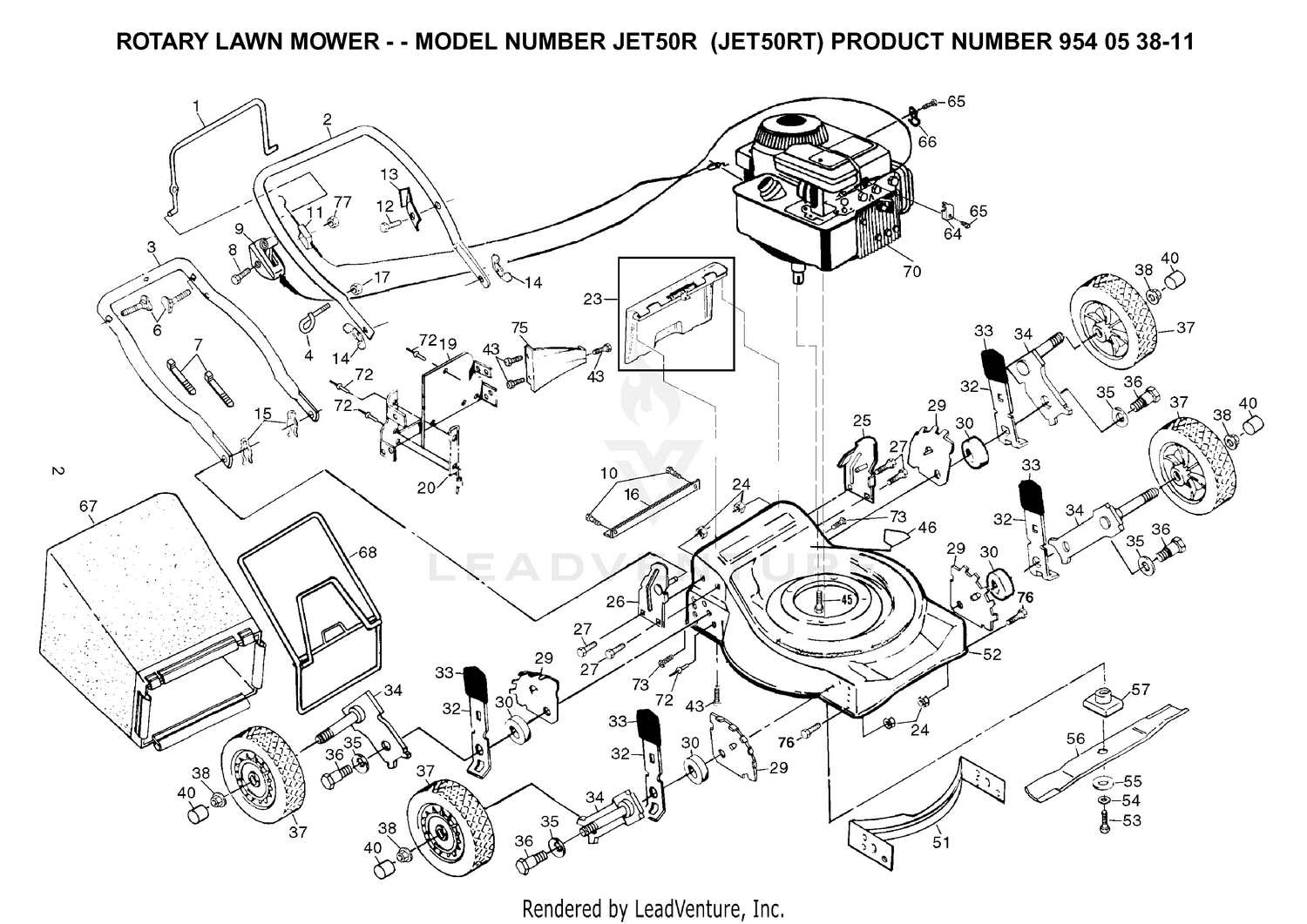

| Ref | Part Number | Description |
|---|
| MA36 |
MA36 |
Clipping Deflector Price: Call Us |
| 1 |
532131696 |
CONTROL BAR Price: $29.99 |
| 2 |
532166860 |
HANDLE.UP.DSTR.FGD/PU.16.BLACK This part replaces 532168730. Price: $14.99 |
| 3 |
532151590 |
HANDLE.LOWR.DLX.20RD.CLIP.BLAC This part replaces 532153406. Price: $19.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532179585. Price: $7.99 |
| 6 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 8 |
532158755 |
SCREW.PAN.HEAD Price: $4.99 |
| 9 |
532182158 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
532146694 |
SCREW Price: $3.99 |
| 12 |
532750634 |
SCREW Price: $2.99 |
| 13 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
532128638 |
NUT WING PM Price: $3.99 |
| 15 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 16 |
532146143 |
PROTECTOR This part replaces 532147625. Price: $17.99 |
| 17 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
532162473 |
PLATE Price: $49.99 |
| 20 |
532700363 |
SIDE BAFFLE This part replaces 532138866. Price: $3.68 |
| 23 |
532147613 |
REAR DOOR ASSEMBLY KIT Price: $20.80 |
| 24 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 25 |
532153030 |
HANDLE BRACKET ASSEMBLY - LEFT Price: $2.99 |
| 26 |
532153029 |
HANDLE BRACKET ASSEMBLY-RIGHT Price: $2.42 |
| 27 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 29 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS This part replaces 532139901. Price: $3.99 |
| 30 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 32 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532141730. Price: $4.99 |
| 33 |
532087877 |
KNOB Price: $3.99 |
| 34 |
532145935 |
ARM.AXLE.ASM.BZP This part replaces 532149857. Price: $4.99 |
| 35 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 36 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 37 |
532436482 |
WHEEL.7X1.5.DMD.3SPK.GREY This part replaces 532800060. Price: $11.99 |
| 38 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 40 |
532800090 |
HUB CAP Price: $1.26 |
| 43 |
532054583 |
SCREW Price: $4.99 |
| 45 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 46 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 51 |
532170635 |
NEEDS DESCRIPTION Price: Call Us |
| 52 |
532182365 |
NEEDS DESCRIPTION Price: Call Us |
| 53 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 54 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 56 |
532145106 |
BLADE.20.MULCH.(50DK,6020MD) Price: $17.99 |
| 57 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532850977. Price: $14.99 |
| 64 |
532125078 |
WASHER.ENGINE.BZP This part replaces 532213146. Price: $4.99 |
| 65 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 66 |
532087930 |
GUIDE CLIP PM Price: $5.99 |
| 67 |
532146896 |
GRASS BAG Price: $48.99 |
| 68 |
532088614 |
CATCHER.FRAME.WALK Price: $44.99 |
| 72 |
532128415 |
RIVET BLIND Price: $3.99 |
| 73 |
532088652 |
HINGE SCREW Price: $3.99 |
| 75 |
532173297 |
NEEDS DESCRIPTION Price: Call Us |
| 76 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 77 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
