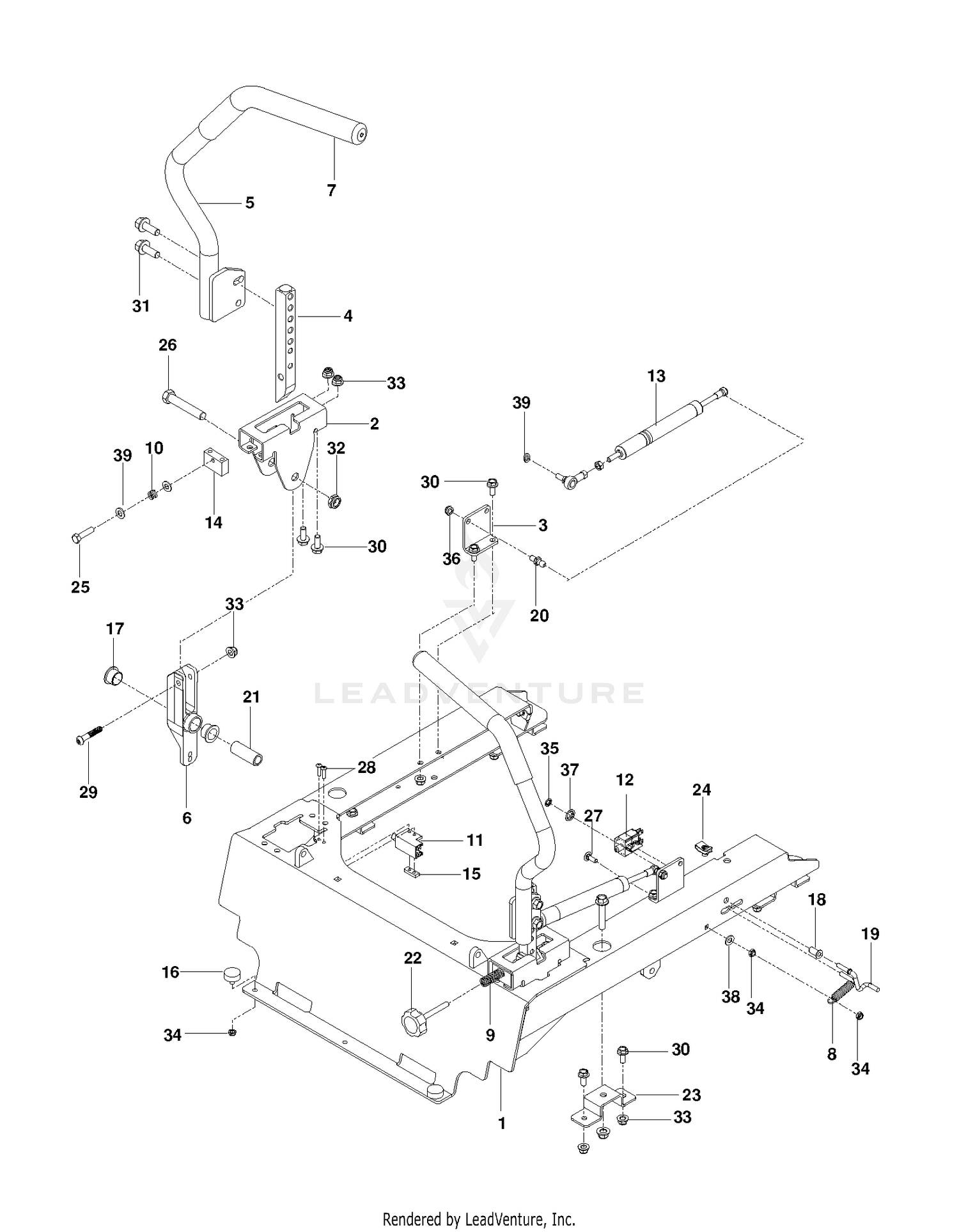

| Ref | Part Number | Description |
|---|
| 1 |
577327702 |
FRAME SEAT MOUNT ORANGE Price: $349.99 |
| 2 |
586737202 |
BRACKET.CONTROL.NARROWSLOT.BLK This part replaces 577251701. Price: $22.99 |
| 3 |
577265801 |
BRACKET.DAMPNER Price: $17.99 |
| 4 |
574269402 |
Levers This part replaces 574269401. Price: $59.99 |
| 5 |
577042403 |
LEVER.WITH GRIP.RT Price: $64.99 |
| 6 |
576140302 |
LEVER.CONTROL.SHORT Price: $49.99 |
| 7 |
539130894 |
GRIP - DRIVE LEVER 12" Price: $6.99 |
| 8 |
540020035 |
SPRING, EXTENSION This part replaces 539020035. Price: $11.99 |
| 9 |
576850301 |
SPRING COMPRESSION 2.0 Price: $3.99 |
| 10 |
539102845 |
SPRING Price: $2.99 |
| 11 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 12 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 13 |
597084601 |
Dampers This part replaces 516020301. Price: $139.99 |
| 14 |
577251801 |
BLOCK.TRACKING Price: $9.99 |
| 15 |
539131519 |
BLOCK, LOWER Price: $12.99 |
| 16 |
575811501 |
BUMPER, 1/4-20 STUD, 1/4 Price: $5.99 |
| 17 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 18 |
511594901 |
BUSHING, 1/4 FLANGE Price: $2.99 |
| 19 |
511595002 |
Links This part replaces 511595001. Price: $2.99 |
| 20 |
594056301 |
Studs This part replaces 539110607. Price: $2.99 |
| 21 |
584927201 |
SPACER.PIVOT.CONTROL This part replaces 577252401. Price: $4.99 |
| 22 |
596400701 |
Knobs This part replaces 539131799. Price: $8.99 |
| 23 |
522849702 |
MOUNT, MID-SECTION, BLK Price: $19.99 |
| 24 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 25 |
539990627 |
HCS 5/16C X 1 1/4 This part replaces 539100469. Price: $3.99 |
| 26 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 27 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 28 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 29 |
576850402 |
SCREW 5/16-18 X 1 3/4 BTN-HD Price: $3.99 |
| 30 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 31 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 32 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 33 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 34 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 35 |
596436201 |
Nuts This part replaces 539102234. Price: $1.99 |
| 36 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 37 |
539913847 |
NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99 |
| 38 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
