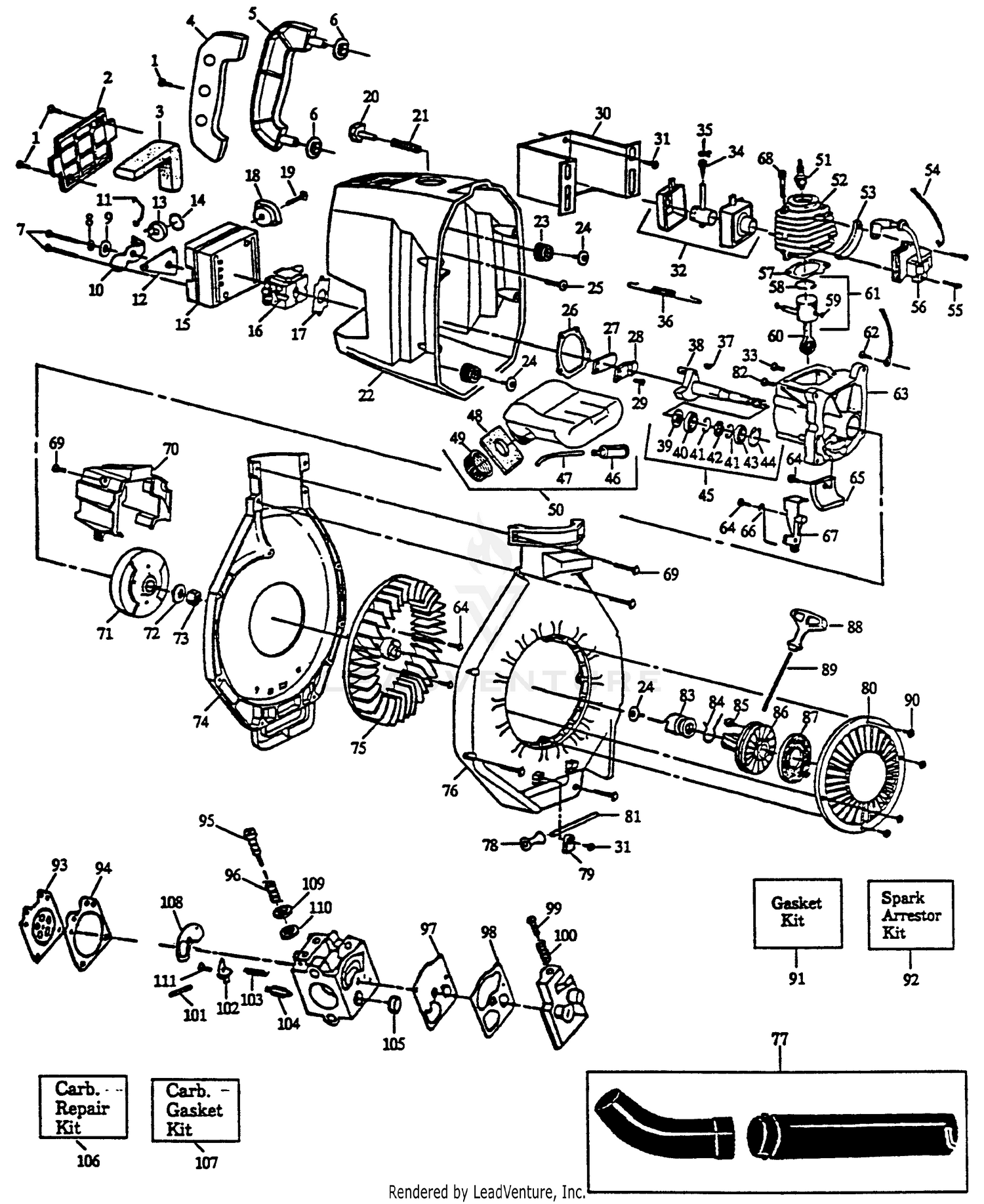

| Ref | Part Number | Description |
|---|
| 1 |
530015635 |
SCREW-10-14X5/8 PHIL.FI Price: $4.99 |
| 2 |
530029708 |
AIR FILTER COVER Price: $1.44 |
| 3 |
530029611 |
FOAM AIR FILTER Price: $2.99 |
| 4 |
530029615 |
HANDLE COVER Price: $2.99 |
| 5 |
530029614 |
HANDLE Price: $3.97 |
| 6 |
530029608 |
HANDLE ISOLATOR Price: $1.99 |
| 7 |
530015887 |
SCREW Price: $3.99 |
| 8 |
530015852 |
CHOKE SPACER Price: $2.99 |
| 9 |
530015254 |
WASHER Price: $2.99 |
| 10 |
530029480 |
CHOKE SHUTTER Price: $1.99 |
| 11 |
530029485 |
THROTTLE WIRE Price: $2.99 |
| 12 |
530029481 |
CHOKE MTG PLATE Price: $0.99 |
| 13 |
530029486 |
RETAINER Price: $1.99 |
| 14 |
530015147 |
WAVE WASHER Price: $3.99 |
| 15 |
530037846 |
AIR BOX This part replaces 530029707. Price: $1.87 |
| 16 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530035290. Price: $54.99 |
| 17 |
530019164 |
GASKET-CARB Price: $3.99 |
| 18 |
530029484 |
Throttle Knob Price: $0.75 |
| 19 |
530015880 |
SCREW Price: $2.99 |
| 20 |
530029600 |
KILL SWITCH BUTTON Price: $0.99 |
| 21 |
530029607 |
SPRING-BUTTON Price: $0.99 |
| 22 |
530029709 |
Shroud Price: $19.69 |
| 23 |
530029434 |
SPRING Price: $0.65 |
| 24 |
530015879 |
SCREW Price: $2.99 |
| 25 |
530015876 |
SCREW Price: $0.99 |
| 26 |
530019154 |
GASKET-C'CASE/SHROUD Price: $2.99 |
| 27 |
530027593 |
VALVE-REED Price: $4.99 |
| 28 |
530029781 |
REED STOP Price: $2.99 |
| 29 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 30 |
530029597 |
HEAT SHIELD Price: $1.92 |
| 31 |
530015805 |
SCREW-10-14 X 1/2 PLASTITE Price: $2.99 |
| 32 |
530069293 |
MUFFLER Price: $9.99 |
| 33 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 34 |
530029227 |
SCREEN-SPARK ARRESTOR Price: $15.99 |
| 35 |
530029228 |
CLAMP-SPARK ARRESTOR Price: $0.62 |
| 36 |
530029116 |
SPRING-MUFFLER Price: $1.99 |
| 37 |
530015126 |
KEY-FLYWHEEL Price: $2.99 |
| 38 |
530010945 |
ASSY-CRANKSHAFT Price: $49.19 |
| 39 |
530015788 |
SPACER-BEARING Price: $0.99 |
| 40 |
530032103 |
Inner Bearing Price: $10.86 |
| 41 |
530015787 |
RING-RETAINING Price: $2.99 |
| 42 |
530019158 |
SEAL-CRANKSHAFT Price: $4.99 |
| 43 |
530032102 |
BEARING-R8 (OUTER) Price: $9.99 |
| 44 |
530015789 |
RING-RETAINING (SHAFT) Price: $3.99 |
| 45 |
530014004 |
Crankcase/Crankshaft Ass'y. Price: $57.80 |
| 46 |
530095646 |
FUEL PICK-UP ASSY This part replaces 530010897. Price: $5.99 |
| 47 |
530069247 |
HOSE. FUEL Price: $6.99 |
| 48 |
530029602 |
FOAM-FUEL TANK Price: $2.99 |
| 49 |
530014347 |
CAP ASSY W/ RETAINER This part replaces 530010807. Price: $7.99 |
| 50 |
530014267 |
Fuel Tank Ass'y. Price: $12.44 |
| 51 |
530030075 |
Spark Plug Price: $2.39 |
| 52 |
530012349 |
CYLINDER This part replaces 530012244. Price: $44.99 |
| 53 |
530027525 |
SPACER-IGNITION MODULE Price: $0.99 |
| 54 |
530029606 |
LEADWIRE SWITCH Price: $0.81 |
| 55 |
530015776 |
SCREW 8-32 X 1-9/32 Price: $0.99 |
| 56 |
530039137 |
IGNITION MODULE Price: $44.99 |
| 57 |
530019267 |
GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $3.99 |
| 58 |
530026413 |
RING-PISTON (22.2CC) Price: $4.99 |
| 59 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 60 |
530014005 |
Piston Rod Price: $14.25 |
| 62 |
530015775 |
SCREW 8-16 X 9/16 (PLAS Price: $2.99 |
| 63 |
530014016 |
Crankcase Ass'y. Price: $29.51 |
| 64 |
530015918 |
SCREW Price: $2.99 |
| 65 |
530029603 |
ISOLATOR Price: $2.99 |
| 66 |
530029613 |
SPRING Price: $2.99 |
| 67 |
530029601 |
INSULATOR Price: $0.60 |
| 68 |
530015239 |
SCREW-1/4-20 X 13/16 Price: $2.99 |
| 69 |
530015814 |
SCREW This part replaces 530015872. Price: $0.17 |
| 70 |
530029433 |
BAFFLE Price: $3.99 |
| 71 |
530039139 |
FLYWHEEL Price: $26.63 |
| 72 |
530015149 |
WASHER Price: $2.99 |
| 73 |
530626605 |
NUT Price: $4.99 |
| 74 |
530029432 |
BLOWER HOUSING (UPPER) Price: $12.99 |
| 75 |
530094865 |
IMPELLER Price: $9.99 |
| 76 |
530014265 |
Blower Housing (Lower) Price: $10.31 |
| 77 |
530069684 |
BLOWER TUBE KIT This part replaces 530069271. Price: $21.00 |
| 78 |
530029575 |
ROLLER Price: $4.99 |
| 79 |
530027523 |
RETAINER Price: $3.99 |
| 80 |
530094867 |
PULLEY HOUSING Price: $6.99 |
| 81 |
530015851 |
PIN ROLLER Price: $2.99 |
| 82 |
530015772 |
SCREW-10-24 X 1" (TAP.) Price: $2.99 |
| 83 |
530029448 |
PINION Price: $2.99 |
| 84 |
530037716 |
DRAG ELEMENT This part replaces 530029449. Price: $0.39 |
| 85 |
530015882 |
SCREW Price: $1.99 |
| 86 |
530069306 |
KIT-STARTER PULLEY Price: $5.99 |
| 87 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $7.99 |
| 88 |
530027569 |
HANDLE-STARTER Price: $3.99 |
| 89 |
530069232 |
KIT-ROPE Price: $4.99 |
| 90 |
530015886 |
SCREW-10-14 X 13/16 (PL Price: $2.99 |
| 91 |
530069302 |
GASKET KIT Price: $3.99 |
| 92 |
530069348 |
SPARK ARRESTOR KIT Price: $17.99 |
| 93 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $44.99 |
| 94 |
530035151 |
GASKET-METER DIAP Price: $3.99 |
| 95 |
530035212 |
Mixture Needle Price: $5.50 |
| 96 |
530035293 |
NEEDLE SPRING This part replaces 530035214. Price: $2.99 |
| 97 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $27.99 |
| 98 |
504130906 |
GASKET This part replaces 530035164. Price: $9.99 |
| 99 |
530035203 |
SCREW-IDLE SPEED Price: $6.99 |
| 100 |
530035121 |
IDLE SCREW SPRING This part replaces 530035208. Price: $2.99 |
| 101 |
505520125 |
FULCRUM PIN This part replaces 530035028. Price: $6.99 |
| 102 |
505520127 |
LEVER This part replaces 530035031. Price: $4.99 |
| 103 |
530035188 |
SPRING-METERING LEVER Price: $3.99 |
| 104 |
503117001 |
VALVE/INLET. This part replaces 530035106. Price: $19.99 |
| 105 |
530035178 |
SCREEN-DUTCH TWILL INLE Price: $2.99 |
| 108 |
530035211 |
GASKET Price: $2.99 |
| 109 |
530035217 |
Mixture Needle Washer Price: $1.44 |
| 111 |
530035016 |
SCREW Price: $3.99 |
