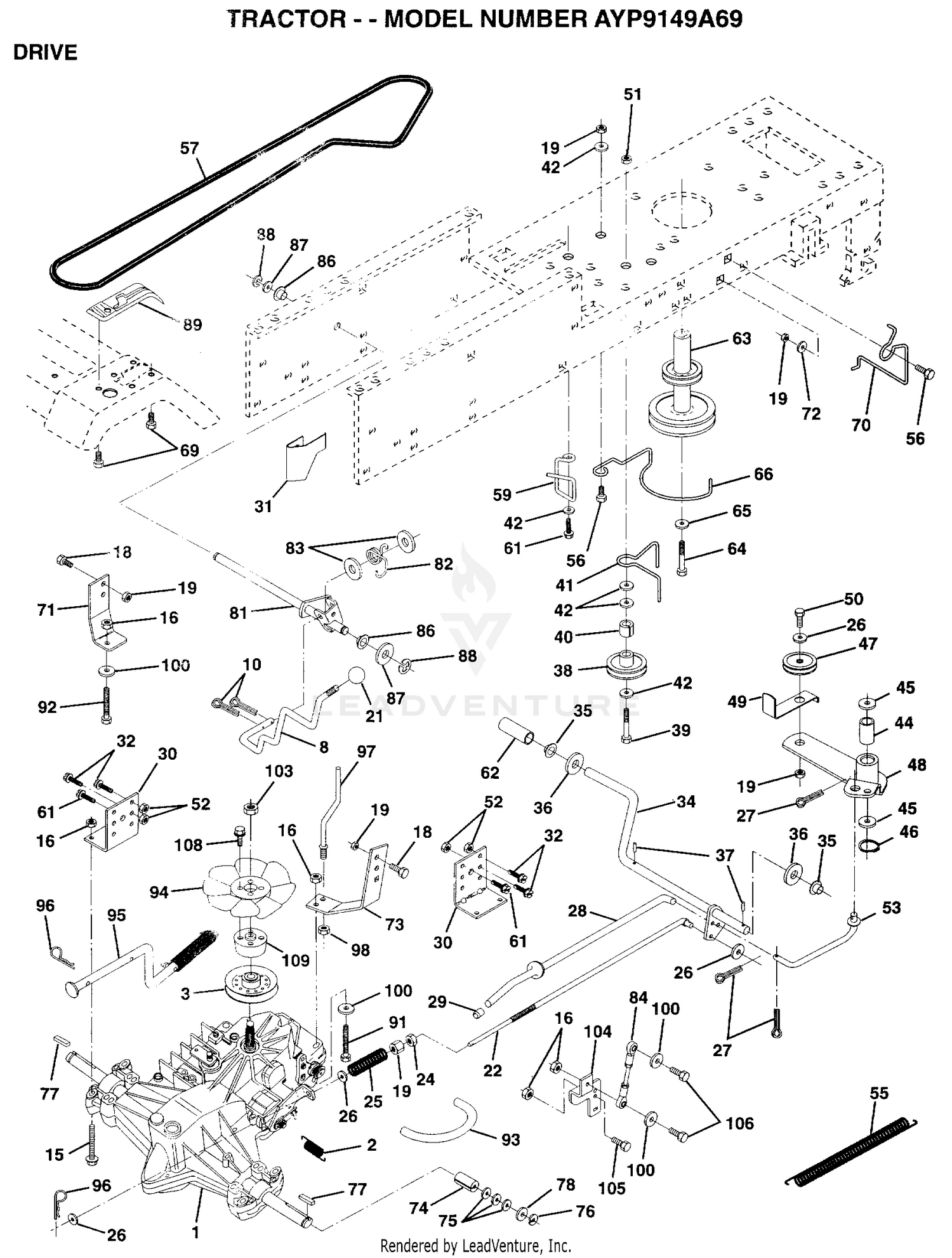

| Ref | Part Number | Description |
|---|
| 1 |
140607 |
TRANSAXLE HYD 0319-0500 Price: Call Us |
| 1 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 2 |
142431 |
SPRING RET BRAKE Price: Call Us |
| 2 |
21-3000-01 |
NUT-JAM, PUSH ARM Price: $37.02 |
| 3 |
144698 |
PULLEY.4.20.HYDRO Price: Call Us |
| 3 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 4 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 5 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 6 |
69-9570 |
RH FRONT LIFT ARM ASM Price: $1,410.77 |
| 7 |
71-2570 |
SHAFT-PIVOT Price: $431.51 |
| 8 |
141003 |
ROD SHIFT FEND LT Price: Call Us |
| 8 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
69-7940-01 |
SUPPORT-LIFT ARM, RH Price: $234.45 |
| 10 |
340-57 |
FITTING-HYD Price: $9.11 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
69-5440 |
HOSE ASM Price: $73.25 |
| 12 |
92-4971 |
CYLINDER-HYD Price: $718.13 |
| 13 |
93-1397 |
VALVE-CONTROL, FLOW Price: $142.88 |
| 14 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 15 |
93-7427 |
TUBE ASM Price: $53.80 |
| 16 |
340-70 |
NUT-LOCK Price: $2.10 |
| 16 |
73800500 |
NUT Price: Call Us |
| 17 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 18 |
98-7346 |
SPACER Price: $30.67 |
| 19 |
20-4360-03 |
SPACER Price: $8.01 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
69-9180 |
PIN-CYLINDER Price: $25.38 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 22 |
145627 |
ROD.BRAKE.HYDRO. Price: Call Us |
| 22 |
325-6 |
SCREW-HH Price: $1.42 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 24 |
3217-9 |
NUT-HH Price: $0.37 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 27 |
69-7920-01 |
SUPPORT-LIFT ARM, LH Price: $214.14 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 29 |
328-5 |
SCREW-HH Price: $3.60 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 31 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 32 |
111-1290 |
ENGINE - KUBOTA V1505-E2B-HAYTER-1 This part replaces 92-4806. Price: $3,715.61 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
69-8470-03 |
SPRING-TORSION Price: $92.60 |
| 34 |
149001 |
SHAFT.PEDAL.FOOT Price: Call Us |
| 34 |
76-1670-03 |
SPRING-EXTENSION Price: $24.92 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
69-1540-03 |
PIVOT-SPRING, TORSION Price: $122.27 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 36 |
69-9580 |
LH FRONT LIFT ARM ASM Price: $1,165.75 |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 38 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
| 39 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 40 |
93-7426 |
TUBE-HYD Price: $86.55 |
| 41 |
109070X |
BELT KEEPER LT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760602 |
BOLT Price: Call Us |
| 57 |
141416 |
BELT-V.HYDR.84.61 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
129921 |
KEEPER.BELT.ENG.L Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 71 |
141417 |
STRAP.TORQ.LH.HYD Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 73 |
141418 |
STRAP.TORQ.RH.HYD Price: Call Us |
| 74 |
121199X |
SPACER SPLIT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 81 |
141420 |
SHAFT.CROSS.HYD Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
141423 |
ROD.TIE.BALL.HYD. Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
139988 |
SUB= 153764 Price: Call Us |
| 91 |
74780536 |
NLA Price: Call Us |
| 92 |
74780524 |
HEX BOLT Price: Call Us |
| 95 |
144643 |
SUB= 918144643 Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 97 |
144201 |
KEEPER.BELT.RH.HY Price: Call Us |
| 98 |
73510600 |
NUT Price: Call Us |
| 100 |
19111216 |
WASHER M Price: Call Us |
| 103 |
73940800 |
SUB= 73360800 Price: Call Us |
| 104 |
141421 |
ARM.CONTROL.PUMP Price: Call Us |
| 105 |
71070516 |
SCREW CAP 5/16-18 Price: Call Us |
| 106 |
74780520 |
BOLT Price: Call Us |
| 108 |
17541026 |
SCREW.HXHD.10-20 Price: Call Us |
