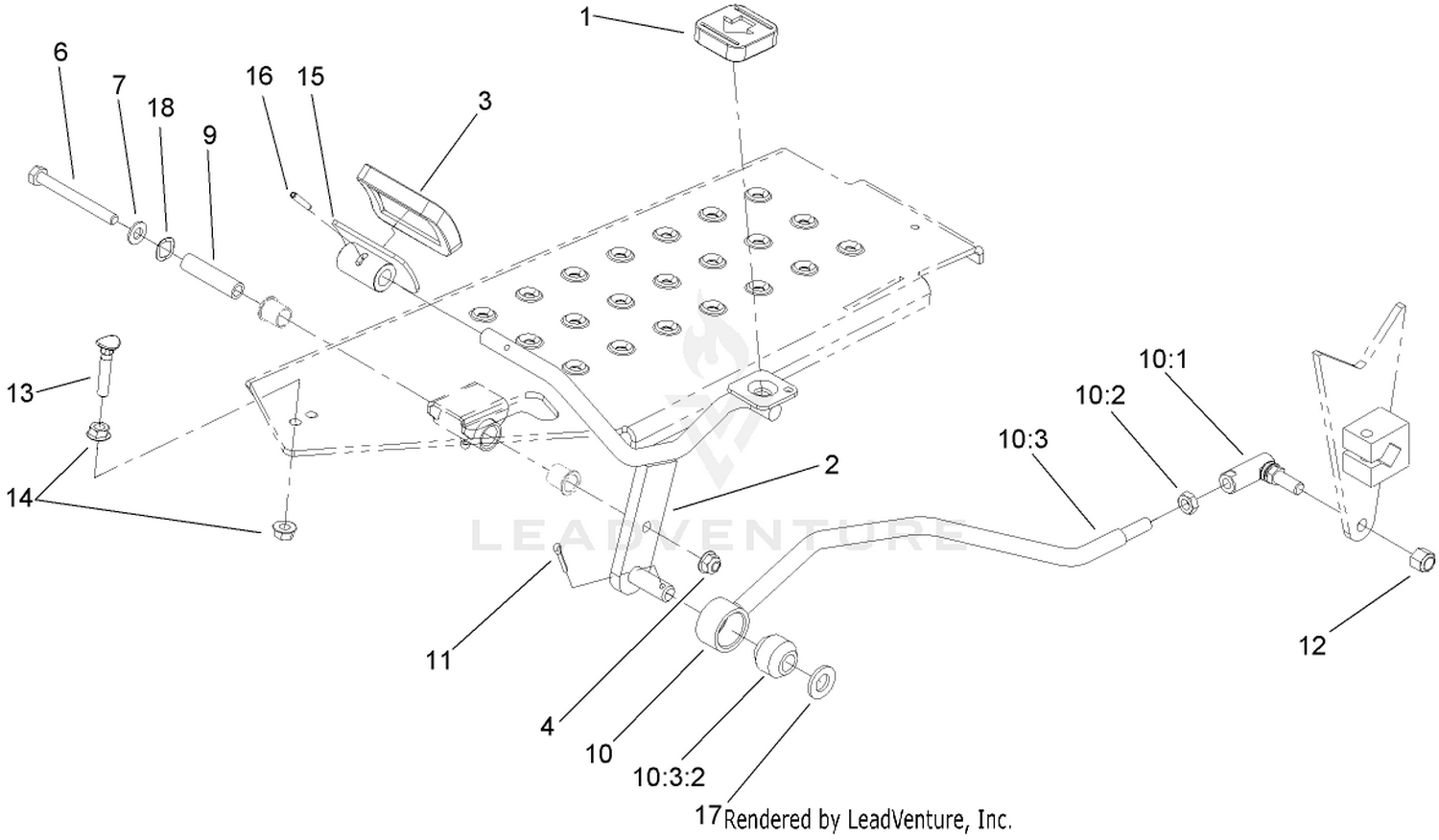

Traction Pedal Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 74-9110 | PAD-PEDAL, REVERSE Price: $13.49 |
| 2 | 108-5498-01 | PEDAL Price: $107.90 |
| 3 | 74-9100 | PAD-PEDAL, FORWARD Price: $27.08 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 322-14 | SCREW-HH Price: $1.01 |
| 7 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 9 | 85-8960 | SPACER Price: $11.44 |
| 11 | 3272-10 | PIN-COTTER Price: $0.25 |
| 12 | 3296-6 | NUT-LOCK Price: $1.49 |
| 13 | 17-9420 | SCREW-HANDLE Price: $3.49 |
| 14 | 32128-20 | NUT-HF Price: $0.99 |
| 15 | 49-6440-03 | PEDAL-FORWARD Price: $84.90 |
| 16 | 32121-45 | PIN-SPRING Price: $0.27 |
| 17 | 106-9888 | WASHER-FLAT Price: $0.49 |
