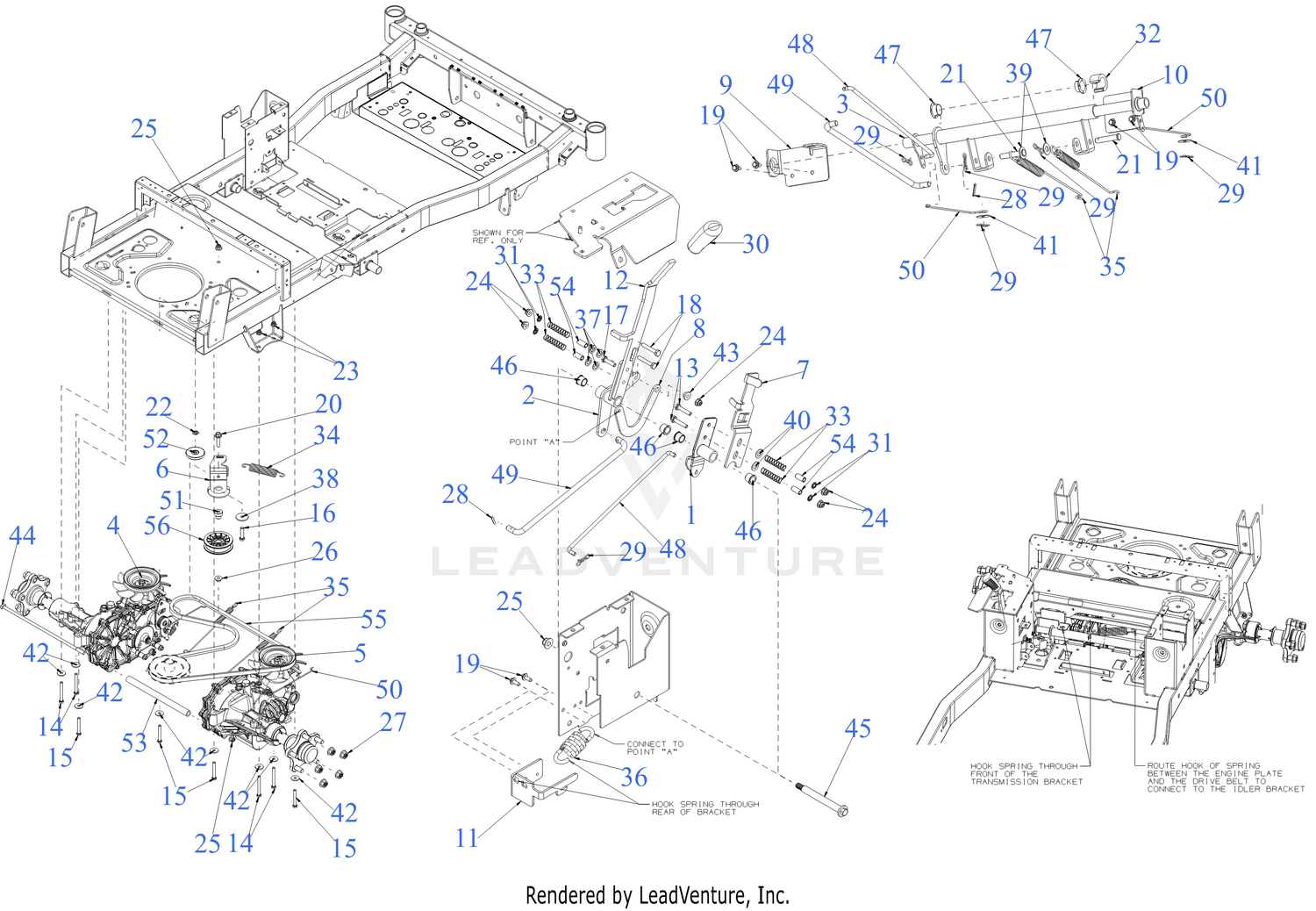

| Ref | Part Number | Description |
|---|
| 1 |
603Z08714A |
BYPASS LEVER PIVOT ARM Price: $40.41 |
| 2 |
603Z08802 |
PARK BRAKE PIVOT ARM Price: $45.30 |
| 3 |
603E08816A |
BRAKE PIVOT SHAFT Price: $91.15 |
| 6 |
703E26186 |
HYDRO DRIVE IDLER BRACKET Price: $22.82 |
| 12 |
703Z28136A |
PARK BRAKE LEVER Price: $31.90 |
| 13 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 14 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 15 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 16 |
710-0520 |
SCREW 3/8-16 x 1.50 Price: $3.93 |
| 17 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 18 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 19 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 20 |
710-06749 |
HEX HEAD BOLT (3/8-16:1.50 GR8) Price: $5.95 |
| 21 |
711-04469A |
CLEVIS PIN 3/8 x 1.87 Price: $5.15 |
| 22 |
712-0229 |
PUSH NUT Price: $3.14 |
| 23 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 24 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 25 |
712-04065 |
NUT Price: $3.68 |
| 26 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 27 |
712-05381 |
HEX FLANGE NUT 1/2-20 GR8 Price: $3.04 |
| 28 |
714-0474 |
COTTER PIN Price: $4.08 |
| 29 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 30 |
720-04163 |
GRIP Price: $8.03 |
| 31 |
726-0233 |
RETAINER-BOLT .25ID x .50OD Price: $3.93 |
| 32 |
731-05297 |
SPACER: .76ID x .75 Price: $8.47 |
| 33 |
732-0962 |
COMPRESSION SPRING Price: $3.75 |
| 34 |
732-07926A |
EXTENSION SPRING .925 x 5.37 Price: $9.13 |
| 35 |
732-08320A |
EXTENSION SPRING .60 DIAx9.09 Price: $9.17 |
| 36 |
732-08386 |
EXTENSION SPRING 1.09x3.25 Price: $20.50 |
| 37 |
736-0140 |
FLAT WASHER Price: $6.20 |
| 38 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 39 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 40 |
736-0314 |
WASHER THRUST .375X.70X.030 Price: $6.01 |
| 41 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 42 |
736-04117 |
FLAT WASHER 1.0 OD:.331 ID Price: $2.85 |
| 43 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 44 |
738-05554A |
SUPPORT TUBE ROD Price: $11.73 |
| 45 |
738-05694 |
SHOULDER SCREW .491x3.937 3/8-16 Price: $4.69 |
| 46 |
741-0748 |
FLANGE BUSHING Price: $10.38 |
| 47 |
741-3084 |
FLANGE BEARING .75 x 1.125 x .375 Price: $4.55 |
| 48 |
747-11727 |
BYPASS LINK Price: $10.81 |
| 49 |
747-11740 |
BRAKE LINK Price: $11.38 |
| 50 |
747-11763 |
HYDRO BYPASS ROD .100 DIA Price: $2.27 |
| 51 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 52 |
748-06624 |
SHOULDER SPACER Price: $8.60 |
| 53 |
750-07350 |
SUPPORT TUBE Price: $21.16 |
| 54 |
750-10995 |
SPACER .252x.350x.760 Price: $1.82 |
| 55 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
