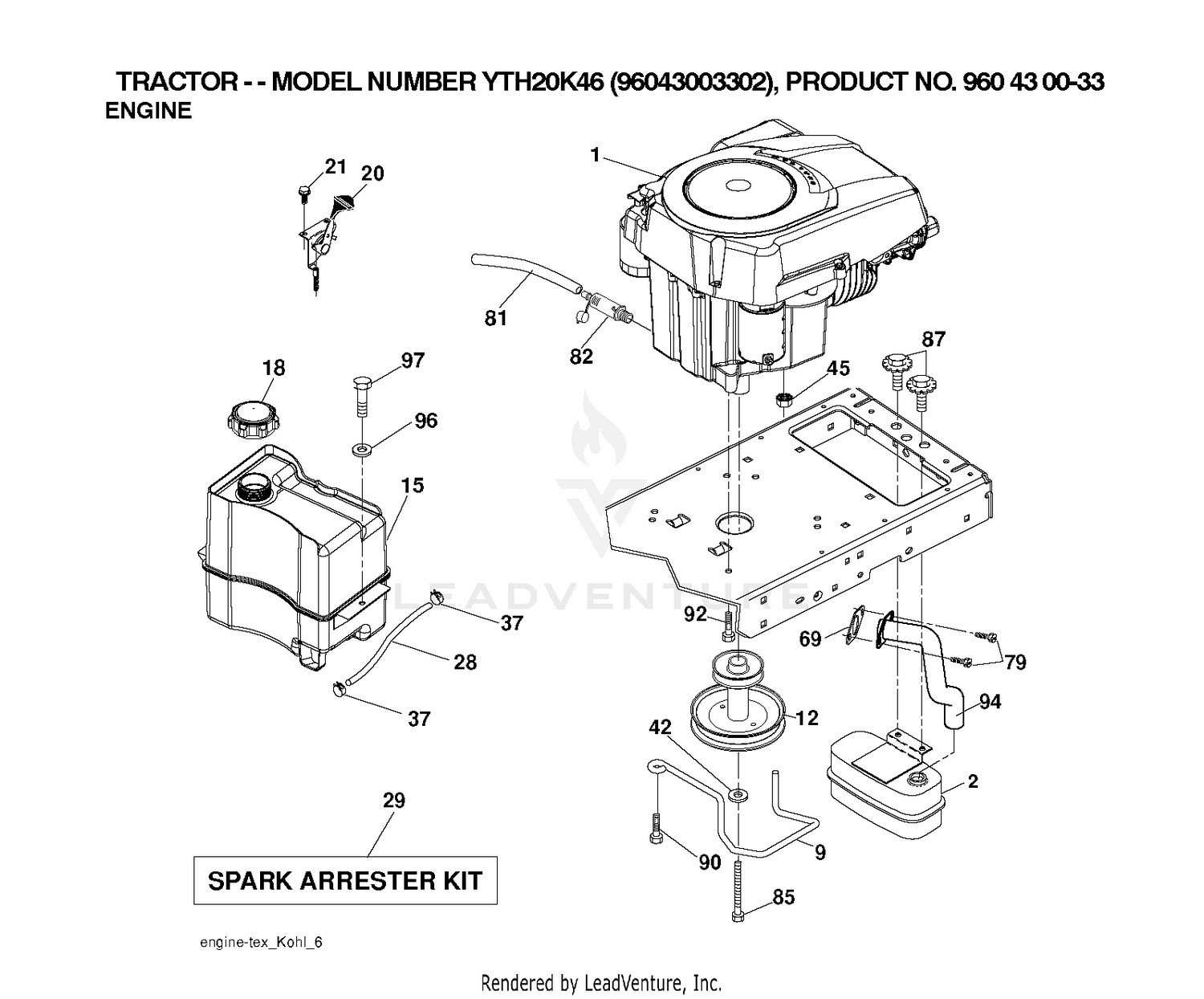

| Ref | Part Number | Description |
|---|
| 1 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 2 |
100-4932 |
TRIM-SEAL Price: $82.50 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
104-4853-03 |
SCREEN-HOOD Price: $961.57 |
| 5 |
121-3631 |
HOOD ASM This part replaces 100-4855. Price: $1,819.89 |
| 6 |
95-8728 |
BRACKET-PIVOT, HOOD Price: $19.32 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 9 |
107-0333 |
RIVET-POP Price: $0.34 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
3290-55 |
RIVET-POP Price: $0.25 |
| 11 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 12 |
104-5152 |
DECAL-HOOD Price: $36.51 |
| 12 |
532405140 |
PULLEY.ENGINE.5.0.PD Price: $44.99 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 15 |
121-3642 |
DECAL-SERVICE This part replaces 117-5103. Price: $51.12 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
3269-21 |
RIVET-POP Price: $0.47 |
| 17 |
119-2004 |
CE LATCH KIT Price: $25.85 |
| 18 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
