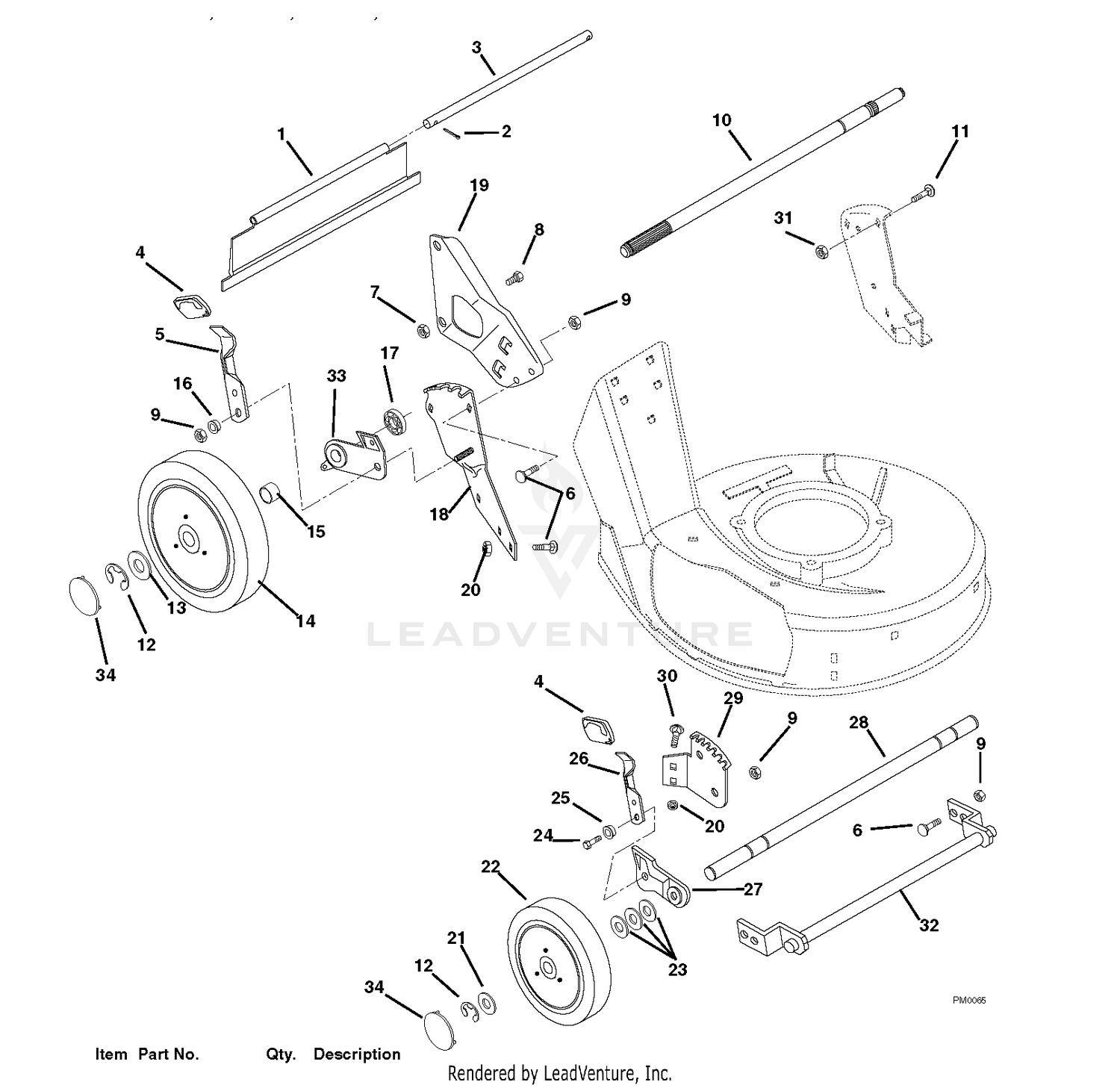

| Ref | Part Number | Description |
|---|
| 1 |
606000142 |
REAR PRTCTV GUARD, SELF PRPLLD Price: $20.99 |
| 2 |
606000051 |
Pin-Cotter .06 x .50 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C) Price: $0.84 |
| 3 |
606000108 |
ROD Price: $28.99 |
| 4 |
606000141 |
KNOB Price: $3.99 |
| 5 |
606000104 |
HEIGHT ADJUSTMENT LEVER. Price: $10.99 |
| 6 |
606000127 |
BOLT RD HD SQ NECK .31-18X.62 Price: $1.99 |
| 7 |
606000048 |
Nut-Locking-Center .38-16 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C) Price: $1.37 |
| 8 |
606000119 |
HANDLEBAR STUD Price: $11.99 |
| 9 |
606000243 |
NUT LOCKING CENTER .31-18 This part replaces 606000050. Price: $2.99 |
| 10 |
606000109 |
REAR AXLE. Price: $79.99 |
| 11 |
606000128 |
BOLT RD HD SQ NECK .31-18X1.00 Price: $3.99 |
| 12 |
606000125 |
RING-RETAINING-EXTNL .500X.042 Price: $1.99 |
| 13 |
606000130 |
WASHER-FLT STL .505X.880X.072 Price: $1.99 |
| 14 |
606000331 |
WHEEL KIT LEFT & RIGHT DRIVE This part replaces 606000278. Price: $119.99 |
| 15 |
606000110 |
SPACER TUBE Price: $2.99 |
| 16 |
606000123 |
BSHNG FLNG .312X.500X.344X.880 Price: $2.99 |
| 17 |
606000122 |
BEARING-BALL .625X1.382X.50 Price: $24.99 |
| 18 |
606000114 |
REAR QUADRANT LEFT HAND Price: $24.99 |
| 19 |
606000107 |
BRKT - HANDLEBAR - RH Price: $22.99 |
| 20 |
606000136 |
Nut-Locking-Flanged .31-18 (580 R, 580 RS, 580 RSE, 580 BBC, 600 C) Price: $0.96 |
| 21 |
606000130 |
WASHER-FLT STL .505X.880X.072 Price: $1.99 |
| 22 |
606000277 |
IDLER WHEEL/7.5 X 1.75 Price: $16.99 |
| 23 |
606000132 |
WASHER-FLAT STL .520X.827X.062 Price: $0.99 |
| 24 |
606000126 |
BOLT-HEX .31-18X1.00 GRADE 5 Price: $1.99 |
| 25 |
606000123 |
BSHNG FLNG .312X.500X.344X.880 Price: $2.99 |
| 26 |
606000103 |
LEVER, FRONT HEIGHT ADJUSTMENT Price: $5.99 |
| 27 |
606000101 |
LEFT-HAND BRACKET ASSEMBLY Price: $23.99 |
| 29 |
606000112 |
FRONT QUADRANT- LEFT HAND Price: $12.99 |
| 30 |
606000082 |
Bolt-Round Head Square Neck .31-18 x .50 Grade 5 (580 R, 580 RS, 580 RSE, 580 BBC, 600 C) Price: $1.52 |
| 31 |
606000089 |
Nut-Locking-Nylon .312-18 Price: $0.84 |
| 32 |
606000116 |
De-Thatcher Retainer Weldment (600 C) Price: $44.91 |
| 33 |
606000117 |
REAR ADJUSTER BRACKET-RT HAND Price: $27.99 |
| 34 |
532008508 |
HUB CAP PM Price: $3.99 |
