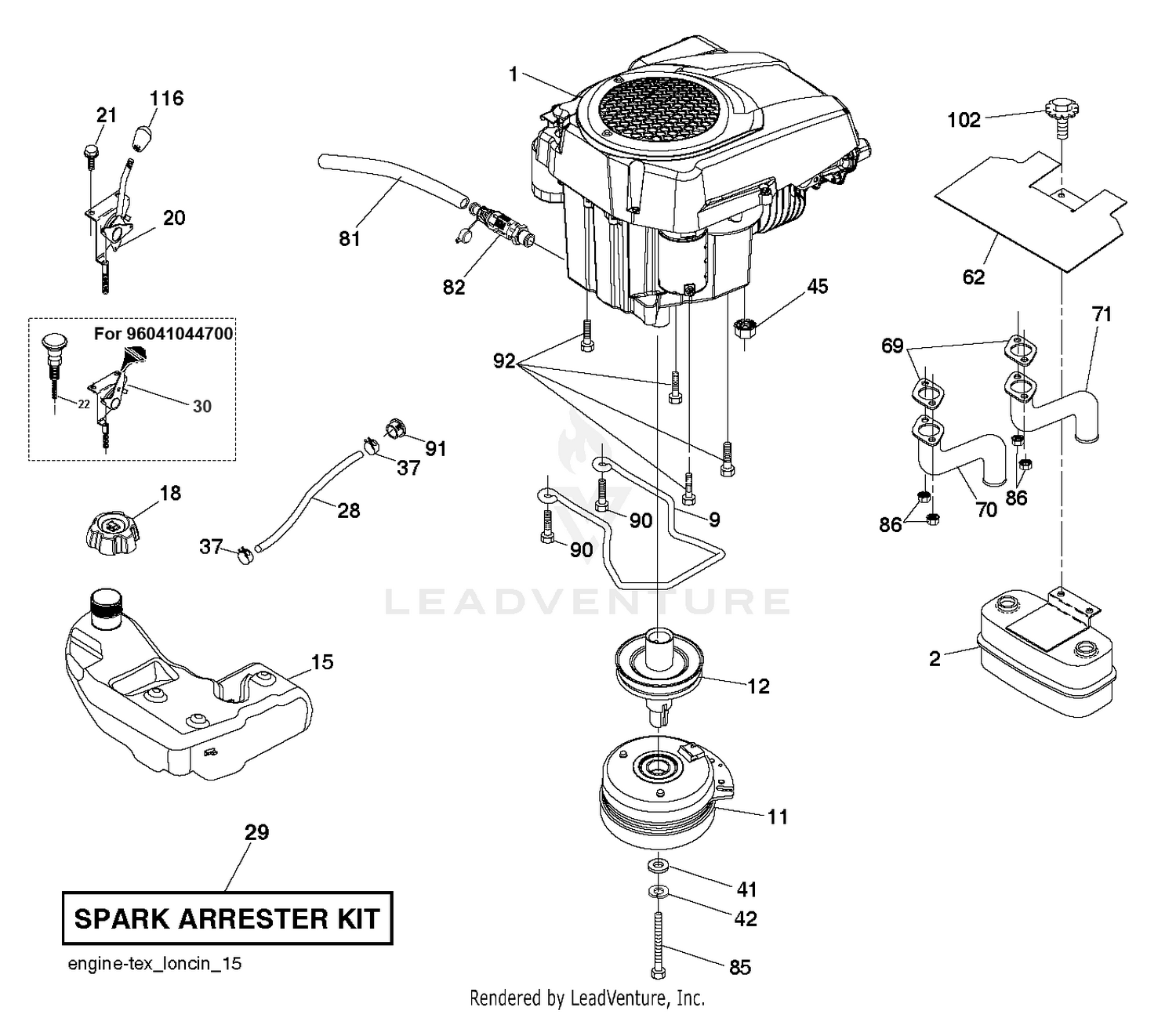

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM This part replaces 115-3479. Price: $1,496.66 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 115-3435. Price: $391.32 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 20 |
586219601 |
CONTROL.THROTTLE/CHOKE.PRO.45 Price: $54.99 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
