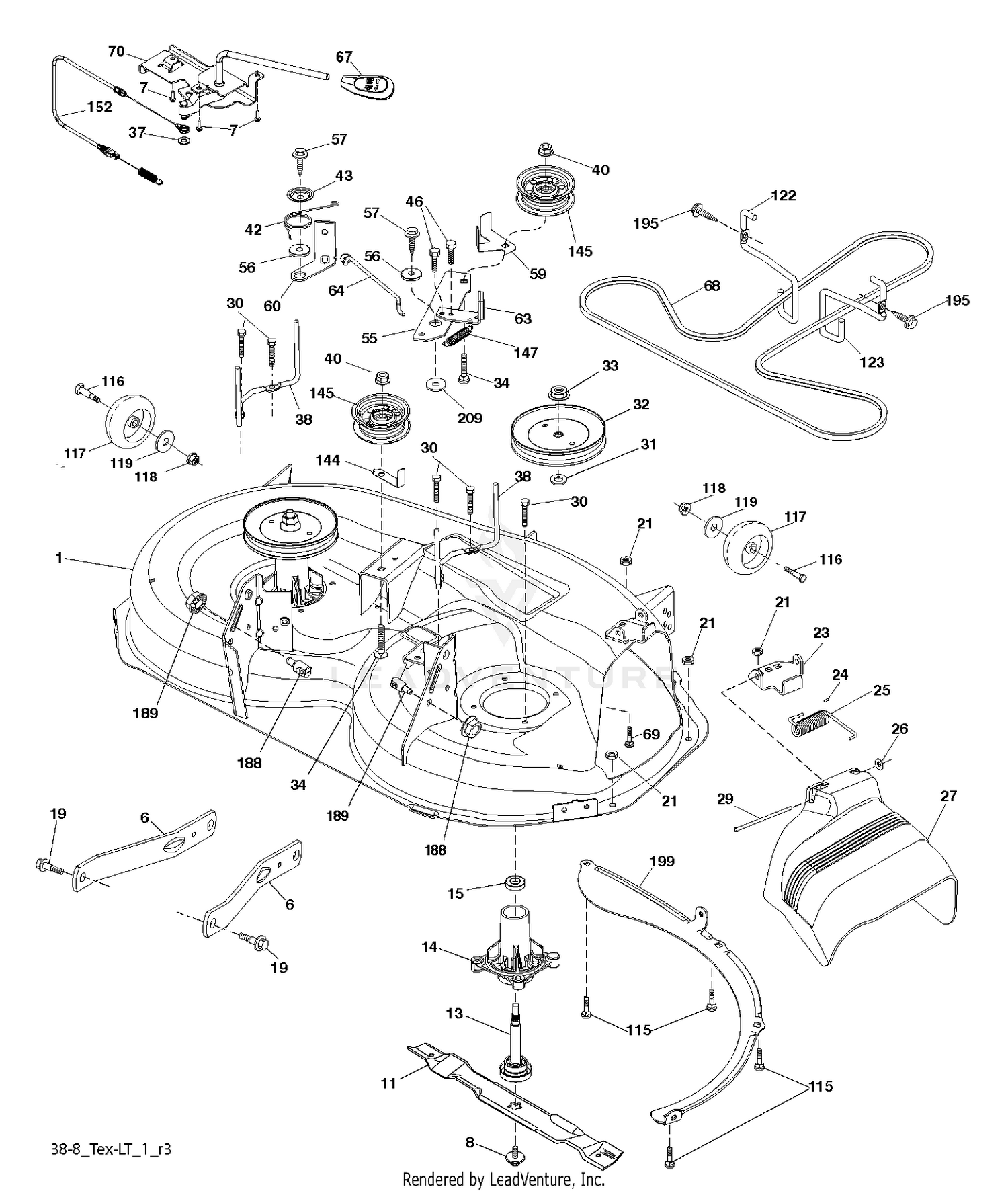

| Ref | Part Number | Description |
|---|
| 1 |
547565001 |
SERVICE KIT DECK 38" X428 This part replaces 532411483. Price: $379.99 |
| 1 |
60-5860 |
PLUG Price: $27.34 |
| 2 |
60-5720 |
O-RING Price: $1.86 |
| 4 |
60-5760 |
PIN Price: $2.58 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
60-5710 |
PLUG Price: $13.84 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 7 |
60-5780 |
GEAR Price: $268.84 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
60-5730 |
DISC Price: $1.52 |
| 9 |
60-5820 |
SPRING Price: $12.04 |
| 10 |
60-5770 |
DISCONTINUED Price: Call Us |
| 11 |
42-3140 |
CAPSCREW Price: $9.42 |
| 12 |
49-2640 |
SEAL-SHAFT Price: $14.83 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
60-5890 |
WASHER Price: $4.68 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
49-2660 |
FRONT PLT ASM RH Price: $449.50 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
56-6710 |
O-RING This part replaces 42-3120. Price: $3.82 |
| 17 |
49-2680 |
MOLDED O-RING Price: $4.51 |
| 18 |
49-2700 |
DISCONTINUED Price: Call Us |
| 19 |
49-2690 |
DISCONTINUED Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
49-2670 |
WEAR PLATE Price: $66.47 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
60-5740 |
DISCONTINUED Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
92-9253 |
VALVE-RELIEF Price: $461.84 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
92-9255 |
O-RING Price: $2.27 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
92-9256 |
WASHER-BACKUP Price: $4.18 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
92-9254 |
O-RING Price: $7.70 |
| 27 |
532192572 |
SHIELD.DEFLECTOR.MOWER.38" This part replaces 532193968. Price: $32.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
532408381 |
V-BELT Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. This part replaces 532408714. Price: $29.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
