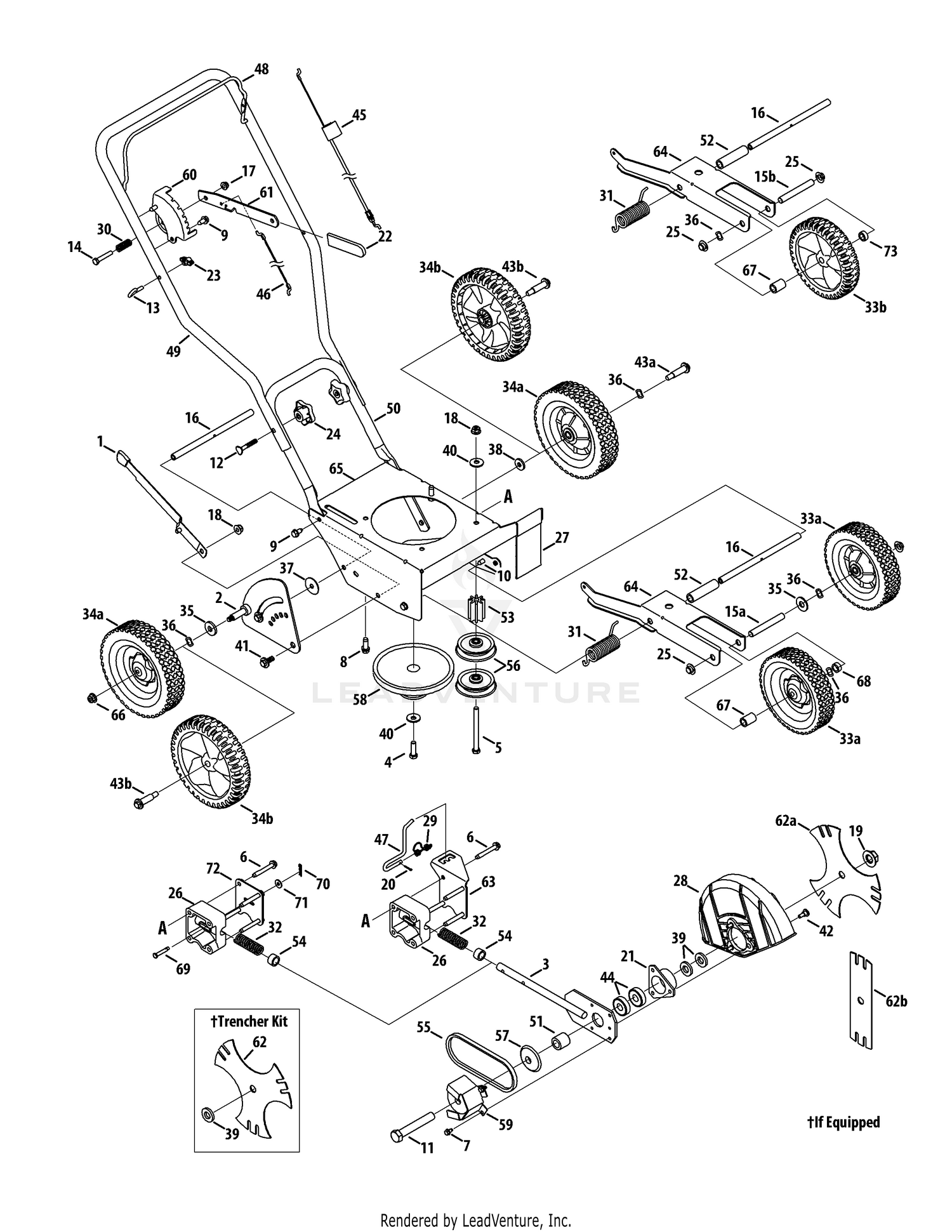

General Assembly

General Assembly

Parts (72)

RefPart NumberDescription
1 687-02022 Curb Height Adjustment Lever Price: $62.12
2 687-02585 Curb Height Adjuster Plate Price: $26.86
3 687-02126 Blade Plate Assembly Price: $49.22
4 710-0191 Screw 3/8-24 Price: $4.02
5 710-0411 Screw 3/8-16 Price: $7.16
6 710-04389 SCREW Price: $6.01
7 710-0599 Self-tapping Screw, 1/4-20 Price: $3.86
8 710-0654A Screw, 3/8-16 Price: $3.75
9 710-0726 Hex Screw, 5/16-12 Price: $3.82
10 710-0870 Hex Screw 5/16-18 Price: $5.44
11 710-1143A Hex Screw, 5/8-18 Price: $10.02
12 710-1174 Carriage Bolt, 5/16-18 Price: $6.28
13 710-1205 Rope Guide (Eye Bolt) Price: $3.53
14 710-3180 Hex Screw, 5/16-18 Price: $4.93
15a 711-05696 Axle Shaft .50x6.65 Price: $4.83
16 711-04440 Frame Spacer .50x9.25 Price: $25.81
17 712-04063 Lock Flange Nut, 5/16-18 Price: $3.56
18 712-04065 Flange Nut 3/8-16 Price: $3.68
19 712-0417A HEX NUT Price: $6.50
20 714-3010 Clevis Pin 3/32 x .625 Price: $4.08
21 718-04012 Bearing Cup Price: $19.55
22 720-0142 Grip Price: $3.22
23 720-0279 Wing Nut Price: $3.93
24 720-04072A Star Knob Price: $6.07
25 726-0299 Push Cap 1/2" rod Price: $7.03
26 931-04207 Bearing Block Price: $24.30
27 731-05063 Debris Guard Price: $5.34
28 731P05064 EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87
29 732-0188A Double Torsion Spring Price: $11.77
30 932-0369 Compression Spring Price: $8.84
31 732-04045 Torsion Spring Price: $13.38
32 932-04169 Compression Spring Price: $9.41
33a 734-1264 Wheel 7 x 1.75 T-Tread Price: $48.53
34a 734-1268 Wheel 8 x 1.75 T-Tread Price: $66.45
35 736-04019 Flat Washer, .531 x 1.25 x .181 Price: $7.02
36 736-0232 Wave Washer,.531 ID x.781 OD This part replaces 936-0232. Price: $4.02
37 736-0234 Flat Washer, .385 x 1.5 x .075 Price: $5.29
38 736-0258 Flat Washer .385 x 1.0 x .135 Price: $3.93
39 736-04088 Flat Washer .635x1.24x.181 This part replaces 936-04088. Price: $3.90
40 736-0452 Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05
41 738-04149 Shoulder Screw, 3/8-16 Price: $3.89
42 738-0706D Screw This part replaces 738-0706C. Price: $3.89
43a 738-0929 Shoulder Screw, 3/8-16 Price: $6.99
44 941-0524A Bearing, .625 ID x 1.57 OD Price: $20.36
46 946-04036 Wheel Adjustment Cable Price: $16.05
47 747-04110A Blade Adjustment Rod Price: $15.95
48 747-0976B BLADE CONTROL BAIL This part replaces 747-0976A-0637. Price: $22.23
49 749-04183A Upper Handle Price: $61.13
50 749-04234 Lower Handle Price: $44.54
51 950-04105 Spacer, .63 x 1.12 x 1.06 Price: $13.42
52 750-04129 Spacer Price: $4.02
53 950-04142 Pulley Mount Spacer Price: $12.57
54 750-0547 Spacer, .64 x.88 x .50 Price: $4.83
55 954-04032B Belt Price: $23.31
56 756-04148 Flat Idler Pulley, 2.5 OD Price: $36.64
57 956-0449 Sheave Price: $13.09
58 756-1150A Combination Flywheel Pulley Price: $144.01
59 781-0427-0637 Belt Guard Price: $19.06
60 781-0741A Depth Index Bracket Price: $6.66
61 781-0742-0637 Depth Index Lever Price: $34.94
62a 781-0748-0637 Tri-Star Blade Price: $19.07
62b 781-0080-0637 Standard Blade Price: $7.95
63 787-01081A-0637 Bracket Plate This part replaces 787-01081A-0638. Price: $5.34
64 787-01240-0638 Dual Wheel Bracket Price: $27.75
65 787-01304-0691 FRAME (BLACK JACK) This part replaces 787-01304-0638. Price: $60.67
66 712-04217 Flange Lock Nut, 3/8-16 Price: $3.75
67 750-05548 Spacer., .525 x .775 x .93 Price: $3.24
68 750-0664 Spacer., .505ID x .88OD x .440 Price: $6.01
69 711-1017 Clevis Pin, .250 x 1.53 Price: $6.57
70 714-0104 Hairpin Clip This part replaces 914-0104. Price: $3.90
71 736-0342 Flat Washer, .283 x .75 x .030 Price: $6.24
72 787-01075A-0637 Cover Plate Price: $17.04
