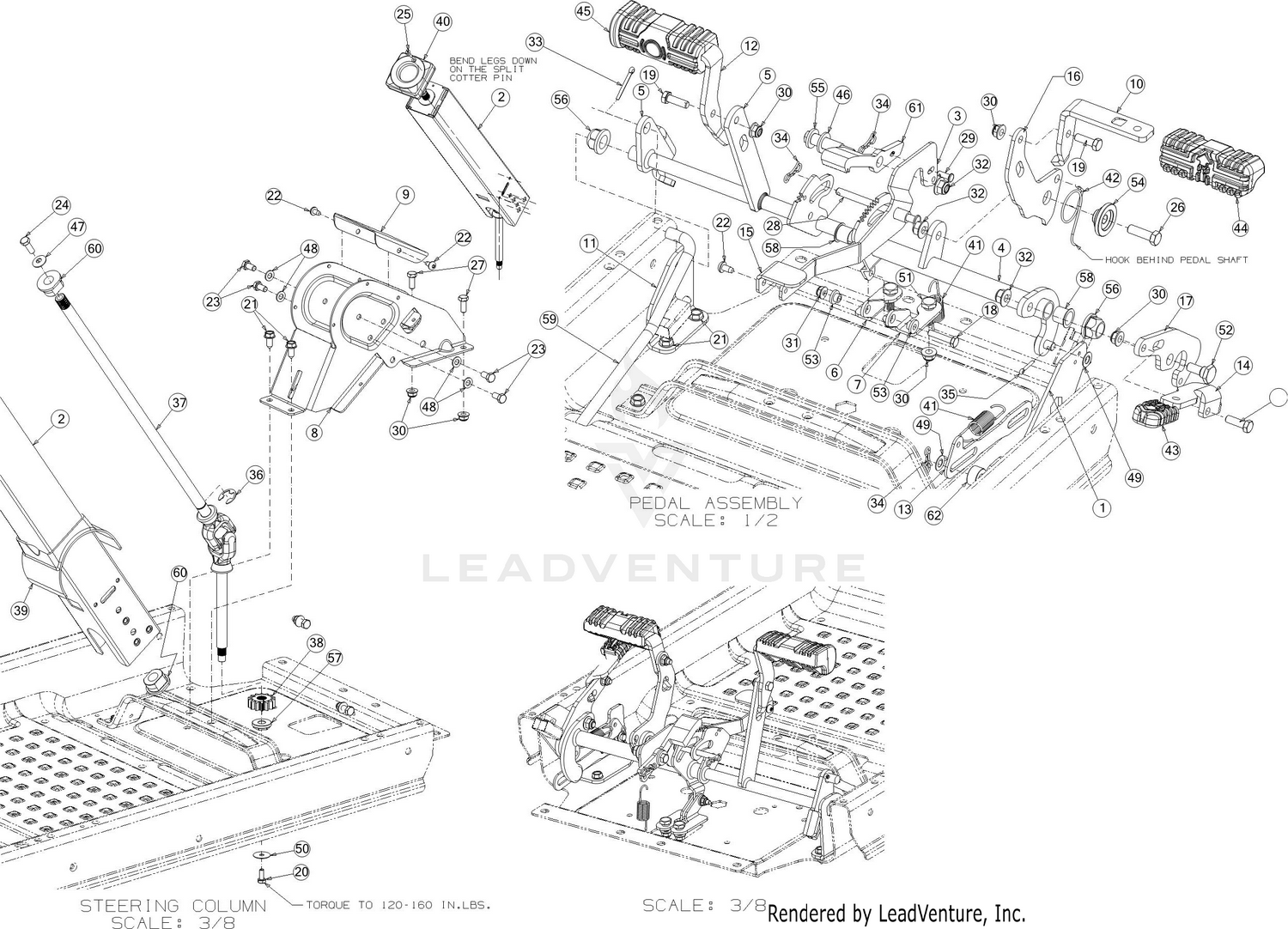

| Ref | Part Number | Description |
|---|
| 1 |
603-04931A-0637 |
BEARING SUPPORT BRACKET (RH) Price: $37.25 |
| 1 |
703-08693-0637 |
PEDAL BRACKET (RH ) Price: $31.44 |
| 2 |
603-04938C-0637 |
STEERING COLUMN ASSEMBLY (POWDER BLACK) This part replaces 603-04938A-0637. Price: $130.78 |
| 3 |
603-05040-0637 |
CRUISE/BRAKE ARM (POWDER BLACK) Price: $40.44 |
| 4 |
947-04270C |
FORWARD PEDAL SHAFT ASSEMBLY This part replaces 947-04270A. Price: $72.06 |
| 5 |
947-05042A |
BRAKE SHAFT ASSEMBLY Price: $86.46 |
| 6 |
703-08604A-0637 |
PEDAL SHAFT BRACKET (LH) (POWDER BLACK) This part replaces 703-08604-0637. Price: $9.59 |
| 7 |
703-08606A-0637 |
PEDAL SHAFT BRACKET (RH) (POWDER BLACK) This part replaces 703-08606-0637. Price: $9.59 |
| 8 |
703-08621B-0637 |
LOWER STEERING COLUMN Price: $77.98 |
| 9 |
703-08622-0637 |
LOWER STEERING COLUMN Price: $6.77 |
| 10 |
703-08646B-0637 |
FORWARD DRIVE PEDAL Price: $21.61 |
| 11 |
703-08656-0637 |
BEARING SUPPORT BRACKET Price: $26.25 |
| 12 |
703-08675A-0637 |
BRAKE PEDAL Price: $35.19 |
| 13 |
703-08678B |
NEUTRAL RETURN LINK Price: $10.24 |
| 14 |
703-08694B-0637 |
REVERSE PEDAL Price: $18.82 |
| 15 |
703-09147-0637 |
TILT STEERING PEDAL Price: $11.27 |
| 16 |
903-10338A |
FORWARD PEDAL BRACKET This part replaces 703-10338A. Price: $15.04 |
| 17 |
703-10350 |
REVERSE PEDAL PIVOT PLATE Price: $21.40 |
| 18 |
710-0106 |
HEX SCREW 1/4-20 X 1.25 Price: $3.66 |
| 19 |
710-0376 |
HEX SCREW 5/16-18 X 1.00 GR5 Price: $3.66 |
| 20 |
710-0433 |
SCREW 1/4-20 X .62 SPEC GR5 Price: $4.02 |
| 21 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 22 |
710-05070A |
SCREW 1/4-20 X .5 Price: $6.01 |
| 23 |
710-0538 |
SCREW 5/16-18 X .62 GR5 Price: $4.02 |
| 24 |
710-1245B |
SCREW 5/16-24 X .875 GR5 Price: $7.21 |
| 25 |
710-1331 |
SCREW #10-16 X 1.250 Price: $3.91 |
| 26 |
710-3005 |
SCREW 3/8-16 X 1.25 GR5 Price: $3.61 |
| 27 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 28 |
711-05068A |
CLEVIS PIN 5/16 X 4.135 Price: $6.64 |
| 29 |
711-05670 |
CLEVIS PIN .224 X .625 Price: $4.69 |
| 30 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 31 |
712-04064 |
FLANGE LOCK NUT 1/4-20 Price: $3.64 |
| 33 |
712-04065 |
NUT Price: $3.68 |
| 34 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 35 |
914-0474 |
COTTER PIN Price: $4.08 |
| 36 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 37 |
717-04954 |
STEERING SHAFT ASSEMBLY Price: $223.58 |
| 38 |
717-04960 |
STEERING GEAR 14T Price: $11.71 |
| 39 |
731-07358C |
LOWER STEERING COLUMN COVER This part replaces 731-07358B. Price: $19.71 |
| 40 |
731-11491A |
STEERING COLUMN COVER This part replaces 731-11491. Price: $12.77 |
| 41 |
732-04748 |
EXTENSION SPRING Price: $3.52 |
| 42 |
732-04949 |
TORSION SPRING Price: $4.69 |
| 43 |
735-04117 |
REVERSE PEDAL PAD Price: $5.68 |
| 44 |
735-04118A |
FORWARD PEDAL PAD Price: $12.95 |
| 45 |
735-04136 |
BRAKE PEDAL PAD Price: $13.49 |
| 46 |
936-0192 |
FLAT WASHER .535 X .930 X .090 Price: $3.75 |
| 47 |
736-0242 |
BELL WASHER .337 X.867 X .057 Price: $3.75 |
| 48 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 49 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 50 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 51 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 52 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 53 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 54 |
738-04552B |
SHOULDER SPACER 1.5X.38X.38 Price: $6.51 |
| 55 |
738-0929 |
SHOULDER SCREW .496X1.44 3/8-16 Price: $6.99 |
| 56 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 57 |
741-04543 |
HEX FLANGE BEARING 7/16 Price: $4.83 |
| 58 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 59 |
747-05654A |
FRONT BRAKE ROD Price: $37.59 |
| 60 |
948-0209 |
FLANGE BEARING Price: $19.32 |
| 61 |
748-04203 |
CRUISE LATCH Price: $12.39 |
