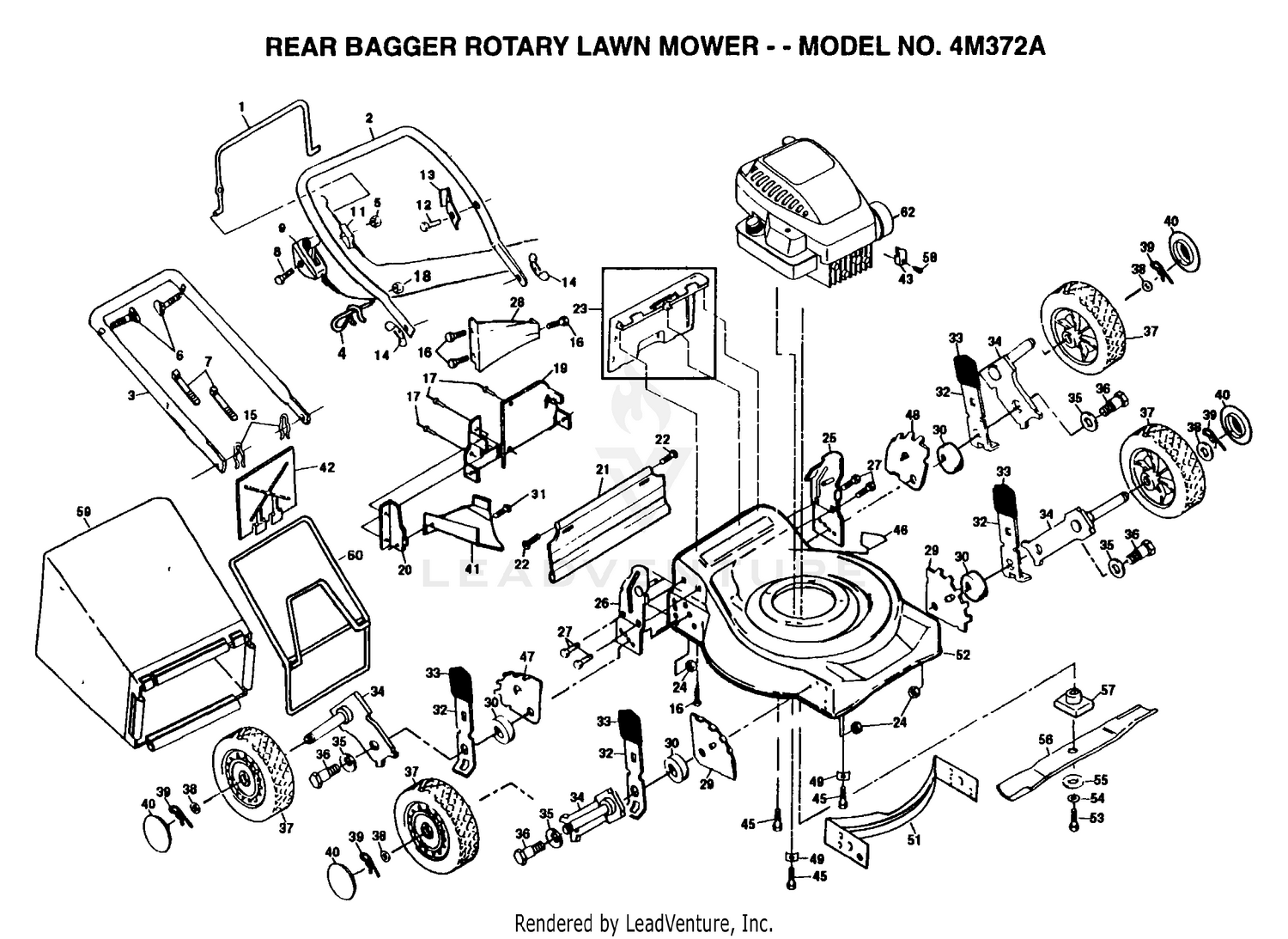

| Ref | Part Number | Description |
|---|
| 1 |
131696 |
CONTROL BAR Price: Call Us |
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
131697X479 |
SUB= 154480X479 Price: Call Us |
| 2 |
321-9 |
SCREW-HH Price: $0.27 |
| 3 |
115-6668 |
LEVER-PUMP This part replaces 108-6555-03. Price: $209.01 |
| 3 |
132813X479 |
SUB= 151721X479 Price: Call Us |
| 4 |
132001 |
ROPE GUIDE Price: Call Us |
| 4 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 5 |
32105-21 |
SCREW-HH Price: $1.09 |
| 5 |
63601 |
SUB= 73800400 Price: Call Us |
| 6 |
131959 |
BOLT.HANDLE.LM Price: Call Us |
| 6 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 7 |
3219-2 |
NUT-HEX Price: $0.37 |
| 7 |
664-26 |
SUB= 7192J Price: Call Us |
| 8 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 8 |
29-6120-03 |
PUMP PLATE ASM Price: $93.02 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 10 |
87930 |
GUIDE CLIP PM Price: Call Us |
| 12 |
110-9650 |
LEAF SPRING ASM Price: $33.06 |
| 12 |
750097 |
TAPPING SCREW Price: Call Us |
| 13 |
321-6 |
SCREW-HH Price: $0.25 |
| 15 |
251-259 |
BEARING-BALL Price: $13.67 |
| 15 |
51793 |
HAIRPIN COTTER Price: Call Us |
| 16 |
3210-7 |
SCREW-HH Price: $0.61 |
| 16 |
54583 |
SCREW Price: Call Us |
| 17 |
128415 |
BLIND RIVET Price: Call Us |
| 17 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 18 |
73510400 |
NUT Price: Call Us |
| 19 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 19 |
700360X479 |
PLATE.BACK Price: Call Us |
| 20 |
700365X479 |
BAFFLE.SIDE Price: Call Us |
| 21 |
140540 |
SKIRT.REAR.FGD.22 Price: Call Us |
| 21 |
3296-9 |
NUT-HEX Price: $0.25 |
| 22 |
88652 |
HINGE SCREW Price: Call Us |
| 23 |
48137 |
SUB= 91848137 Price: Call Us |
| 24 |
751592 |
LOCKNUT PM Price: Call Us |
| 25 |
700913X479 |
SUB= 150956 Price: Call Us |
| 26 |
700915X479 |
SUB= 150956 Price: Call Us |
| 27 |
55187 |
SCREW Price: Call Us |
| 28 |
133040X479 |
REAR BAFFLE Price: Call Us |
| 29 |
700325X007 |
BRACKET.ADJ.9POS. Price: Call Us |
| 30 |
84920 |
SUB= 146630 Price: Call Us |
| 31 |
86344 |
SCREW PM Price: Call Us |
| 32 |
700331X004 |
SPRING SELECTOR Price: Call Us |
| 33 |
87877 |
KNOB PM Price: Call Us |
| 34 |
85021X004 |
AXLE ARM Price: Call Us |
| 36 |
142748 |
BOLT SHLD 3/8-16 Price: Call Us |
| 37 |
800390 |
SUB= 146247 Price: Call Us |
| 38 |
52160 |
WASHER Price: Call Us |
| 39 |
85179 |
RETAINER CLIP PM Price: Call Us |
| 40 |
77400 |
HUB CAP Price: Call Us |
| 41 |
133190X479 |
DISCHARGE BAFFLE Price: Call Us |
| 42 |
133170X479 |
MULCHER PLATE Price: Call Us |
| 43 |
213146 |
CABLE CLAMP Price: Call Us |
| 45 |
850998 |
SCREW Price: Call Us |
| 46 |
107339X |
DECAL HYT Price: Call Us |
| 47 |
700327X007 |
BRACKET.ADJ.9.RH Price: Call Us |
| 48 |
700326X007 |
BRACKET.ADJ.9.LH Price: Call Us |
| 49 |
851201X004 |
WASHER Price: Call Us |
| 51 |
132255X479 |
SUB= 144964 Price: Call Us |
| 52 |
701997 |
KIT.HSG.22RD.PUSH Price: Call Us |
| 53 |
851084 |
SCREW Price: Call Us |
| 54 |
850263 |
LOCKWASHER Price: Call Us |
| 57 |
851514 |
ADAPTOR.BLADE.LM Price: Call Us |
| 58 |
83816 |
SCREW PM Price: Call Us |
| 59 |
132655 |
GRASS BAG Price: Call Us |
| 60 |
133413 |
CATCHER FRAME Price: Call Us |
| 145655 |
MANUAL.OP.GEN.PUS |
Price: Call Us 145655 |
| 147136 |
MAN.PTS.4M372A.EN |
Price: Call Us 147136 |
