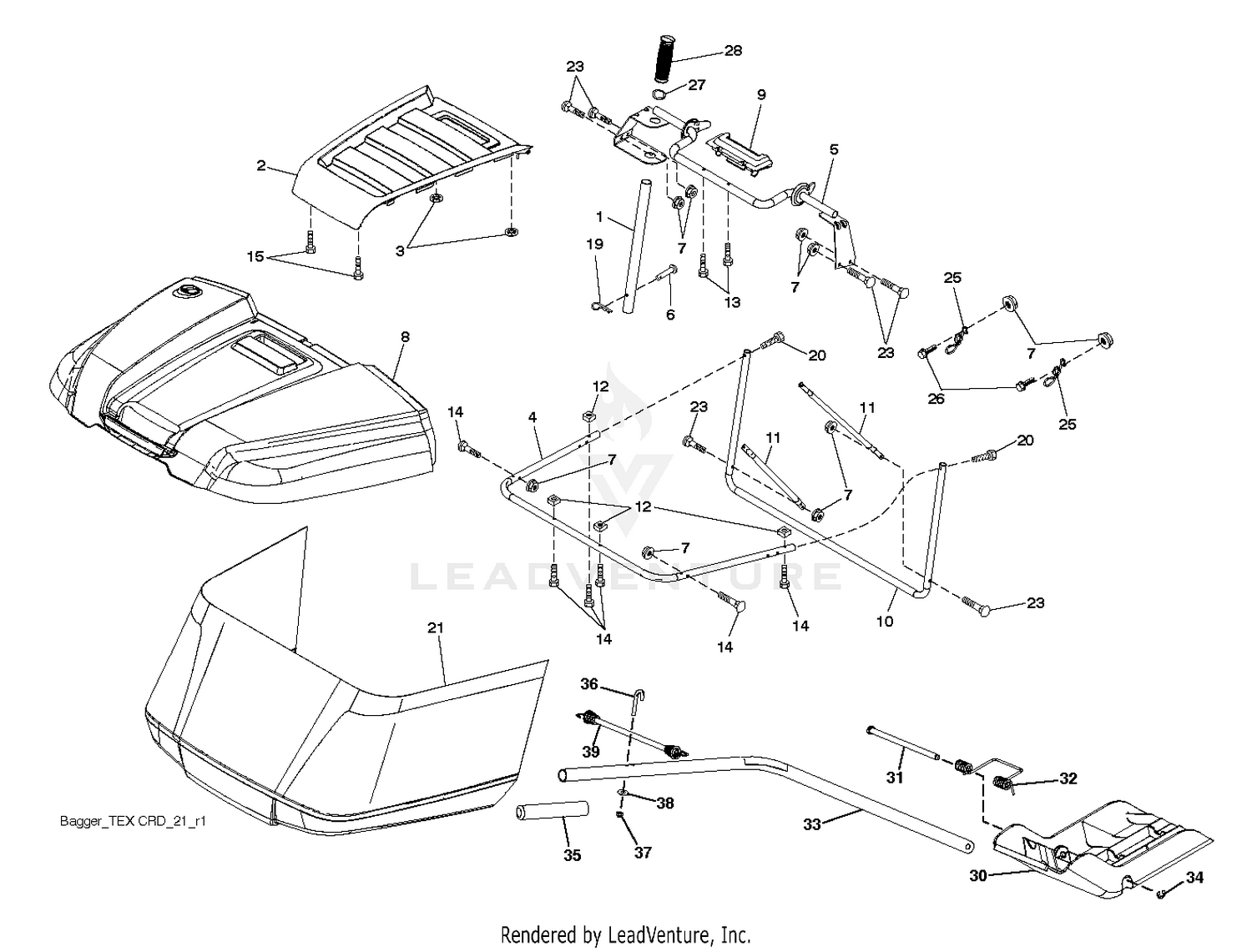

| Ref | Part Number | Description |
|---|
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 2 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 532439612. Price: $44.99 |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532441261. Price: $119.99 |
| 9 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 10 |
585384501 |
FRAME FRONT TUBE TEX CRD BLACK This part replaces 532436770. Price: $37.99 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 11 |
583511601 |
BRACE.SIDE.TUBE.TEX/CRD.BLACK This part replaces 532436771. Price: $11.99 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 14 |
583392001 |
BOLT.SHOULDER.HX.WSH.1/4X1.150 This part replaces 532421800. Price: $6.99 |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
2412-4 |
CLAMP-R Price: $4.22 |
| 20 |
585368801 |
SCREW.HEXCAP.1/4-20X1.375(2 2) Price: $2.99 |
| 21 |
583595201 |
SUBASM.TCRD2 GEN.HUSQ.BAGGER This part replaces 532448306. Price: $119.99 |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 26 |
105-2564 |
BATTERY COVER ASM Price: $78.84 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 30 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 30 |
583519701 |
PLUG.97CM.TEX.CRD.MULCH This part replaces 532437452. Price: $19.99 |
| 31 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 32 |
584455101 |
SPRING.DOUBLE.TORSION.SPRING This part replaces 532437454. Price: $11.99 |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 33 |
583531101 |
SHAFT.TEX.CRD.MULCH.PLUG This part replaces 532438451. Price: $29.99 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 34 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 35 |
583539101 |
GRIP.MULCH.PLUG.HAND. This part replaces 532439139. Price: $11.99 |
| 36 |
594093401 |
Bolts This part replaces 532439098. Price: $5.99 |
| 36 |
72-3560 |
DECAL Price: $12.52 |
| 37 |
532069180 |
LOCKNUT Price: $2.99 |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 38 |
819070818 |
WASHER Price: $5.99 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 39 |
583539501 |
BUNGEE.TEX.CRD This part replaces 532439242. Price: $12.99 |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 42 |
72-3700 |
DECAL-DANGER Price: $38.02 |
| 44 |
93-3177-03 |
COVER-BOX, TOOL Price: $56.35 |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 50 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 52 |
3234-11 |
SCREW-HHF Price: $1.23 |
