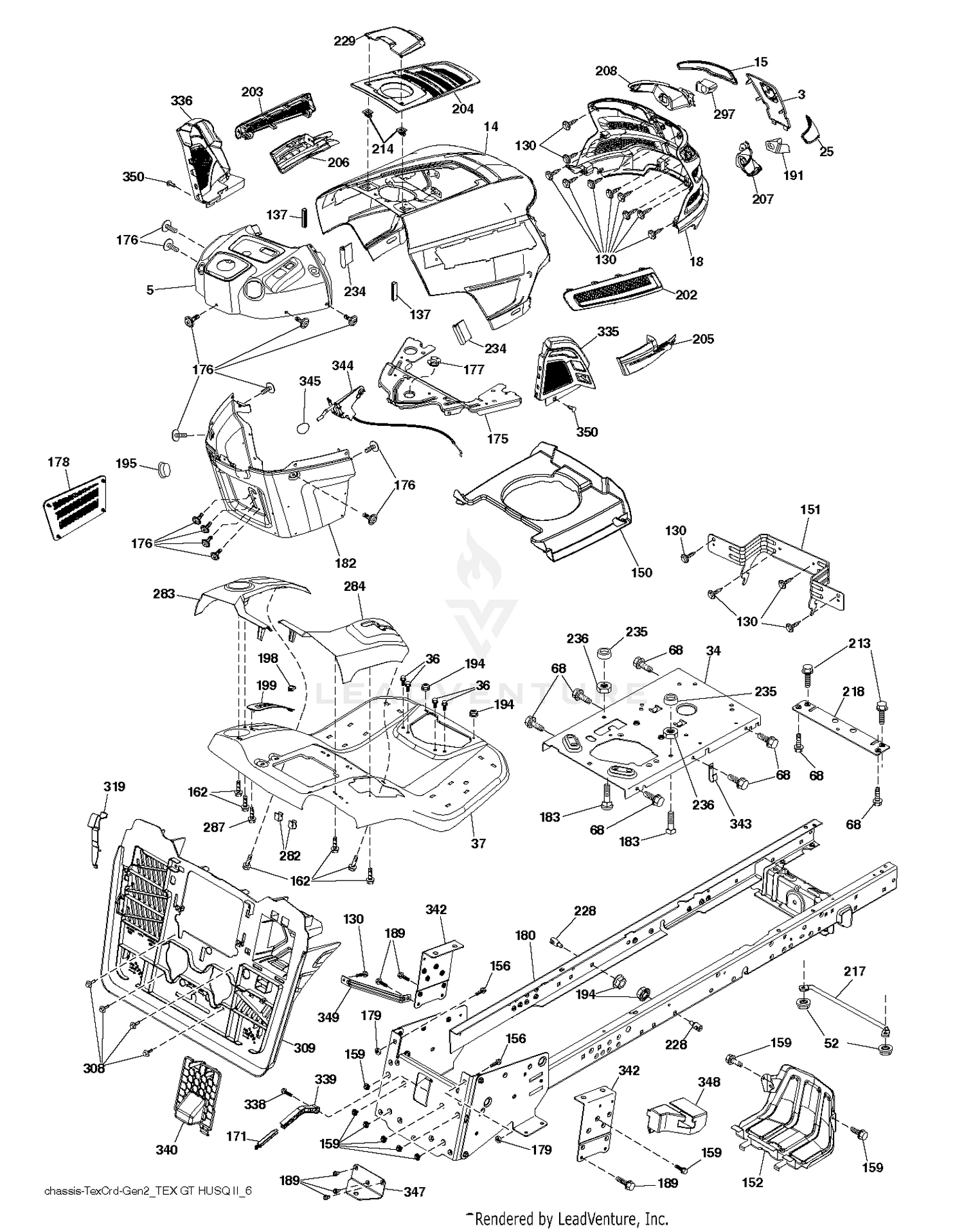

| Ref | Part Number | Description |
|---|
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
74-8080 |
WASHER Price: $4.77 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II This part replaces 532439752. Price: $22.99 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
532437484 |
Price: Call Us |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 12 |
74-8180 |
BEARING SET (.30MM OS) SET OF 10 Price: $209.92 |
| 13 |
74-8200 |
THRUST BEARING SET Price: $92.03 |
| 13 |
74-8210 |
THRUST BEARING SET Price: $108.36 |
| 13 |
74-8220 |
THRUST BEARING SET Price: $27.91 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 15 |
74-8240 |
DISCONTINUED Price: Call Us |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
597247201 |
Grilles This part replaces 532437762. Price: $84.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
74-8320 |
DISCONTINUED Price: Call Us |
| 23 |
74-8330 |
PISTON RING SET Price: $277.15 |
| 23 |
74-8340 |
PISTON RING SET Price: $173.77 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 27 |
74-8390 |
BRG - CONNECTING ROD This part replaces 94-3155. Price: $427.80 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING Price: $23.09 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
74-8430 |
PISTON SET Price: $3,570.53 |
| 29 |
74-8440 |
PISTON SET Price: $2,151.01 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532447253. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441419 |
FENDER.TEX.SRD.CRD.BASE Price: $159.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 156 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 171 |
583510301 |
SUBASM.BAGGER.FULL.LVER.(2 2) This part replaces 532441289. Price: $5.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 179 |
532168937 |
NUT Price: $2.99 |
| 180 |
532442892 |
Price: Call Us |
| 182 |
583536501 |
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT This part replaces 532438967. Price: $69.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 198 |
532441552 |
INDICATOR.DECK.LIFT.RED Price: $11.99 |
| 199 |
583371401 |
PLATE.DECKLIFT.SRD This part replaces 532418739. Price: $7.99 |
| 202 |
532439728 |
VENT.SIDE.RH.GT.HUSQ.II. Price: $14.99 |
| 203 |
532439727 |
VENT.SIDE.LH.GT.HUSQ.II.498 Price: $14.99 |
| 204 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532440665. Price: $24.99 |
| 205 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 206 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 207 |
587464801 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH This part replaces 532439734. Price: $11.99 |
| 208 |
587464501 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH This part replaces 532439735. Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 229 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532441463. Price: $24.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532447212 |
CONSOLE.DECKLIFT.CRDII.498 Price: $129.99 |
| 284 |
532447317 |
Price: Call Us |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 308 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 309 |
532447779 |
Price: Call Us |
| 319 |
532446876 |
Price: Call Us |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 338 |
583510201 |
BOLT.SHOULDER.5/16-18.X.88 This part replaces 532436640. Price: $4.99 |
| 339 |
583510301 |
SUBASM.BAGGER.FULL.LVER.(2 2) This part replaces 532441288. Price: $5.99 |
| 340 |
532447478 |
Price: Call Us |
| 342 |
582826802 |
SUPPORT.PNT.FENDER.CRD.TEX This part replaces 532435938. Price: $17.99 |
| 343 |
582671501 |
CLIP This part replaces 532440749. Price: $2.99 |
| 344 |
583536701 |
CONTROL.EZ.MULCH.TEX/CRD This part replaces 532438970. Price: $79.99 |
| 345 |
539132624 |
KNOB - SHIFT This part replaces 532440639. Price: $6.99 |
| 347 |
583581301 |
SUBASM.HITCH.TOW This part replaces 532445832. Price: $14.99 |
| 348 |
532444926 |
Price: Call Us |
| 349 |
583509701 |
LRVB.FUEL.TANK.SUPPORT.BRACKET This part replaces 532436606. Price: $5.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
