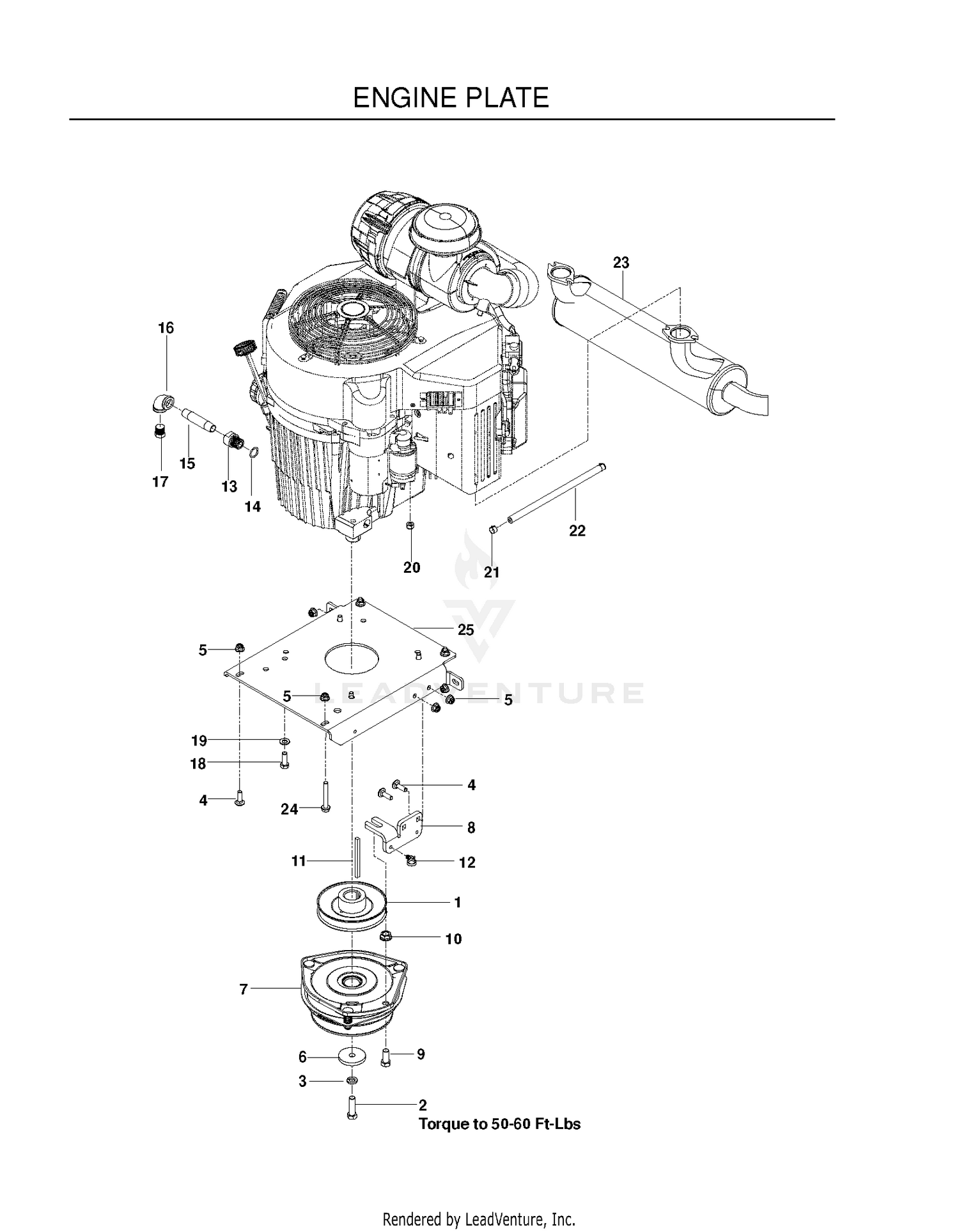

| Ref | Part Number | Description |
|---|
| 1 |
510019801 |
PULLEY, ENGINE Price: $49.99 |
| 1 |
5676217 |
Nut-Adjuster Lock Price: Call Us |
| 2 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 2 |
7840888 |
Assembly-Adjuster Price: Call Us |
| 3 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 3 |
7812946 |
Steering Worm Assembly Price: Call Us |
| 4 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 4 |
7801626 |
Seal Price: Call Us |
| 5 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 5 |
7802160 |
Seal Price: Call Us |
| 6 |
539125626 |
BLADE WASHER Price: $6.99 |
| 6 |
7807009 |
Bolt-Flange Hex. Hd. Price: Call Us |
| 7 |
114495 |
Nut Price: Call Us |
| 7 |
525749501 |
CLUTCH, GT3.5 Price: $599.99 |
| 8 |
597180803 |
Stop This part replaces 522676702. Price: $11.99 |
| 8 |
7806748 |
Side Cover Service Kit (Incl. Ref. #6, 9, 11 13) Price: Call Us |
| 9 |
596238601 |
Bolts This part replaces 539100143. Price: $2.99 |
| 10 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 10 |
605142 |
Kit-Shim Price: Call Us |
| 11 |
525749901 |
KEY, 1/4 SQ X 3.5 Price: $3.99 |
| 11 |
7802482 |
Adjuster Price: Call Us |
| 12 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 12 |
7812834 |
Gear-Pitman Shaft Price: Call Us |
| 13 |
539119680 |
ADAPTER, OIL DRAIN Price: $17.99 |
| 13 |
5666734 |
Gasket Price: Call Us |
| 14 |
539109618 |
O-RING Price: $3.99 |
| 14 |
5679292 |
Housing-Steering Gear Price: Call Us |
| 15 |
539118911 |
PIPE NIPPLE 3/8 X 3 Price: $5.99 |
| 15 |
5666693 |
Assembly-Thrust Bearing Price: Call Us |
| 17 |
522837001 |
PLUG, DRAIN 3/8 NPTF Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 19 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 20 |
539103153 |
NUT M8-1.25 TOP NYL GR10 ZD Price: $2.99 |
| 21 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 22 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 23 |
525750401 |
MUFFLER, 34HP KAW FX921V-1000V Price: $279.99 |
| 24 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 25 |
510004602 |
PLATE.ENGINE.BLACK Price: $99.99 |
