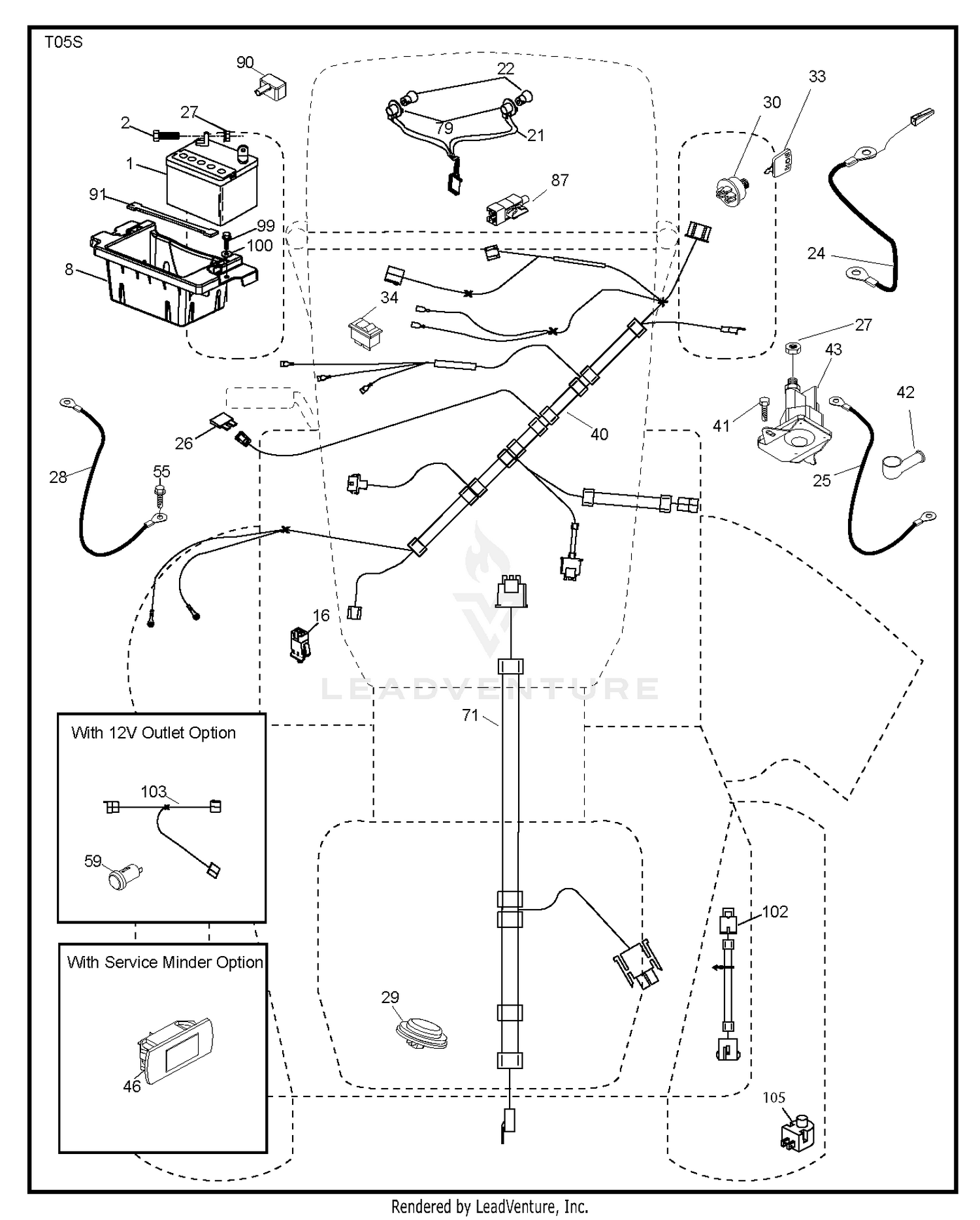

| Ref | Part Number | Description |
|---|
| 1 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
67-4360 |
PULLEY Price: $42.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
67-4470 |
DISCONTINUED Price: Call Us |
| 4 |
67-2330 |
BOLT Price: $2.25 |
| 5 |
67-4450 |
FITTING-THERMOSTAT Price: $266.48 |
| 6 |
43-2710 |
O-RING Price: $6.47 |
| 7 |
72-6740 |
DISCONTINUED Price: Call Us |
| 8 |
532414126 |
TRAY.ASM.BATTERY.FRT.TEX.CARB Price: $32.99 |
| 8 |
99-2169 |
CLIP This part replaces 72-7080. Price: $1.34 |
| 9 |
72-7090 |
FUEL HOSE Price: $7.80 |
| 10 |
67-4510 |
GUAGE-TEMP, WATER Price: $151.90 |
| 11 |
67-4440 |
THERMOSTAT Price: $87.79 |
| 12 |
67-4430 |
GASKET-FITTING, WATER OUTLET Price: $4.75 |
| 13 |
67-4420 |
DISCONTINUED Price: Call Us |
| 14 |
72-7120 |
FUEL HOSE Price: $12.69 |
| 15 |
72-7110 |
CLIP Price: $1.93 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
72-7100 |
BOLT Price: $1.11 |
| 17 |
93-3527 |
GASKET This part replaces 67-4490. Price: $4.82 |
| 18 |
93-3526 |
SWITCH This part replaces 67-4500. Price: $177.42 |
| 19 |
67-4460 |
GASKET-FITTING, THERMOSTAT Price: $4.73 |
| 20 |
67-4400 |
BOLT Price: $3.16 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
67-2600 |
BOLT Price: $2.41 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
67-4380 |
WATER PUMP Price: $508.44 |
| 23 |
67-4390 |
GASKET Price: $5.58 |
| 24 |
67-7380 |
BRACKET-SWITCH Price: $47.43 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 25 |
71-1520 |
RESERVOIR CAP Price: $21.69 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
67-4350 |
OIL PRESSURE SWITCH ASM Price: $49.17 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
67-2610 |
BOLT Price: $3.64 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
