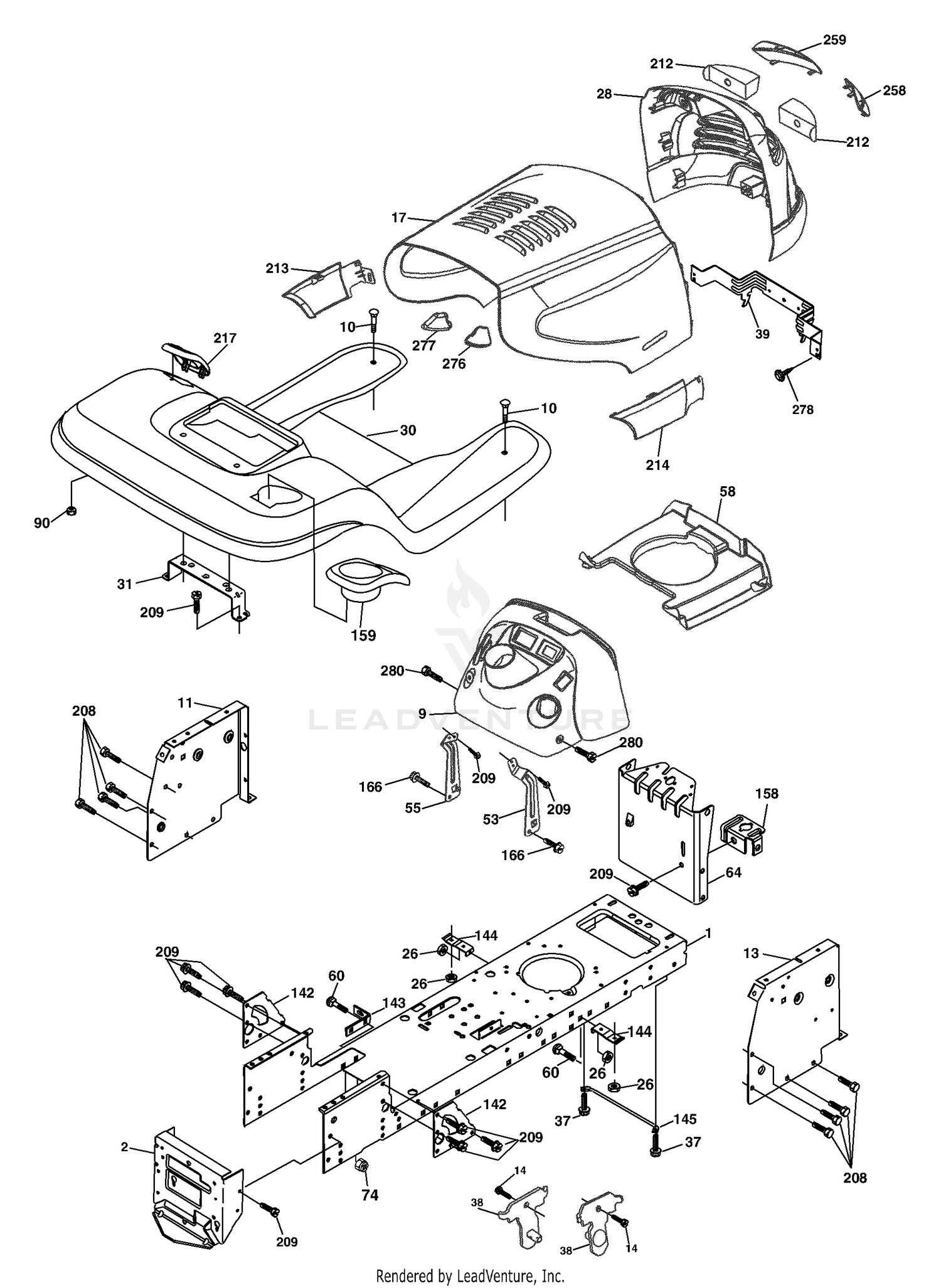

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
58-2800 |
BUSHING Price: $16.22 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 2 |
60-3720 |
PIN-ROLL Price: $2.43 |
| 3 |
58-2810 |
ROD Price: $77.22 |
| 4 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 5 |
48-6780 |
SPRING-COMPRESSION Price: $28.08 |
| 6 |
60-1240 |
SPRING Price: $37.47 |
| 7 |
60-6660 |
NUT Price: $4.07 |
| 8 |
76-3470-03 |
EXHAUST ASM This part replaces 76-3470. Price: $781.13 |
| 9 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 9 |
532193641 |
DASH This part replaces 532190251. Price: $47.99 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
74-2850 |
SILENCER ASM Price: $669.97 |
| 12 |
323-18 |
SCREW-HH Price: $0.82 |
| 13 |
2412-132 |
CLAMP, T-BOLT Price: $15.50 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 16 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 17 |
532188374 |
HOOD.ELITE.HUSQ-STEEL This part replaces 532189977. Price: $89.99 |
| 17 |
58-5910 |
DISCONTINUED Price: Call Us |
| 18 |
33116-030 |
SCREW-HH This part replaces 60-6870. Price: $1.56 |
| 19 |
48-7080 |
GRIP-PLASTIC Price: $7.04 |
| 20 |
58-3800 |
LATCH *R Price: $151.93 |
| 21 |
51-2070 |
NUT Price: $0.68 |
| 22 |
82-4910 |
ROLLER Price: $26.42 |
| 23 |
51-2060 |
WASHER Price: $0.68 |
| 24 |
60-0160 |
PIN Price: $39.08 |
| 25 |
60-2110 |
PIN Price: $1.42 |
| 26 |
48-8830 |
PIN-EXPANSION Price: $1.52 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
48-8850 |
SPRING-DISC Price: $4.79 |
| 28 |
48-8540 |
DISCONTINUED Price: Call Us |
| 28 |
532188269 |
GRILL/LENS ASSY ( YT MODEL) Price: $129.99 |
| 29 |
92-4761 |
DISCONTINUED Price: Call Us |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532191815. Price: $219.99 |
| 30 |
60-4190-03 |
SHIELD-GRASS, LH This part replaces 60-4190. Price: $45.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 31 |
60-4200-03 |
SHIELD-GRASS, RH This part replaces 60-4200. Price: $49.14 |
| 32 |
48-6900 |
SCREW Price: $1.52 |
| 33 |
33093-00 |
WASHER-FLAT This part replaces 48-8010. Price: $0.70 |
| 34 |
60-2080 |
CLAMP-HOSE Price: $21.62 |
| 35 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 36 |
48-7680 |
SCREW-HH Price: $0.61 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 40 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
76-3560 |
CLAMP Price: $5.32 |
| 42 |
3289-25 |
SCREW-SFH Price: $25.39 |
| 43 |
92-4768-03 |
TIEDOWN ASM This part replaces 92-4768. Price: $97.23 |
| 44 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 45 |
92-6059 |
PLUG-BUTTON Price: $0.88 |
| 46 |
92-3044 |
DISCONTINUED Price: Call Us |
| 47 |
92-2950 |
DISCONTINUED Price: Call Us |
| 48 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 49 |
321-9 |
SCREW-HH Price: $0.27 |
| 50 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 53 |
532188372 |
BRACKET DASH RH Price: $9.99 |
| 55 |
532188373 |
BRACKET DASH LH Price: $7.99 |
| 58 |
532189352 |
AIR DUCT ENGINE Price: $20.99 |
| 60 |
872140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532185434. Price: $8.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532188267 |
INSERT LENS Price: $8.99 |
| 213 |
532188266 |
SKIRT.SIDE.ELITE.LH This part replaces 532189979. Price: $7.99 |
| 214 |
532188265 |
SKIRT.SIDE.ELITE.RH.GREY This part replaces 532189978. Price: $7.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 258 |
532188263 |
LENS ELITE CLEAR RH This part replaces 532189981. Price: $14.99 |
| 259 |
532188264 |
LENS.ELITE.HUSQ.CLEAR.LH This part replaces 532189982. Price: $14.99 |
| 276 |
532189274 |
BUMPER HOOD RH Price: $7.99 |
| 277 |
532189275 |
BUMPER HOOD LH Price: $5.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
