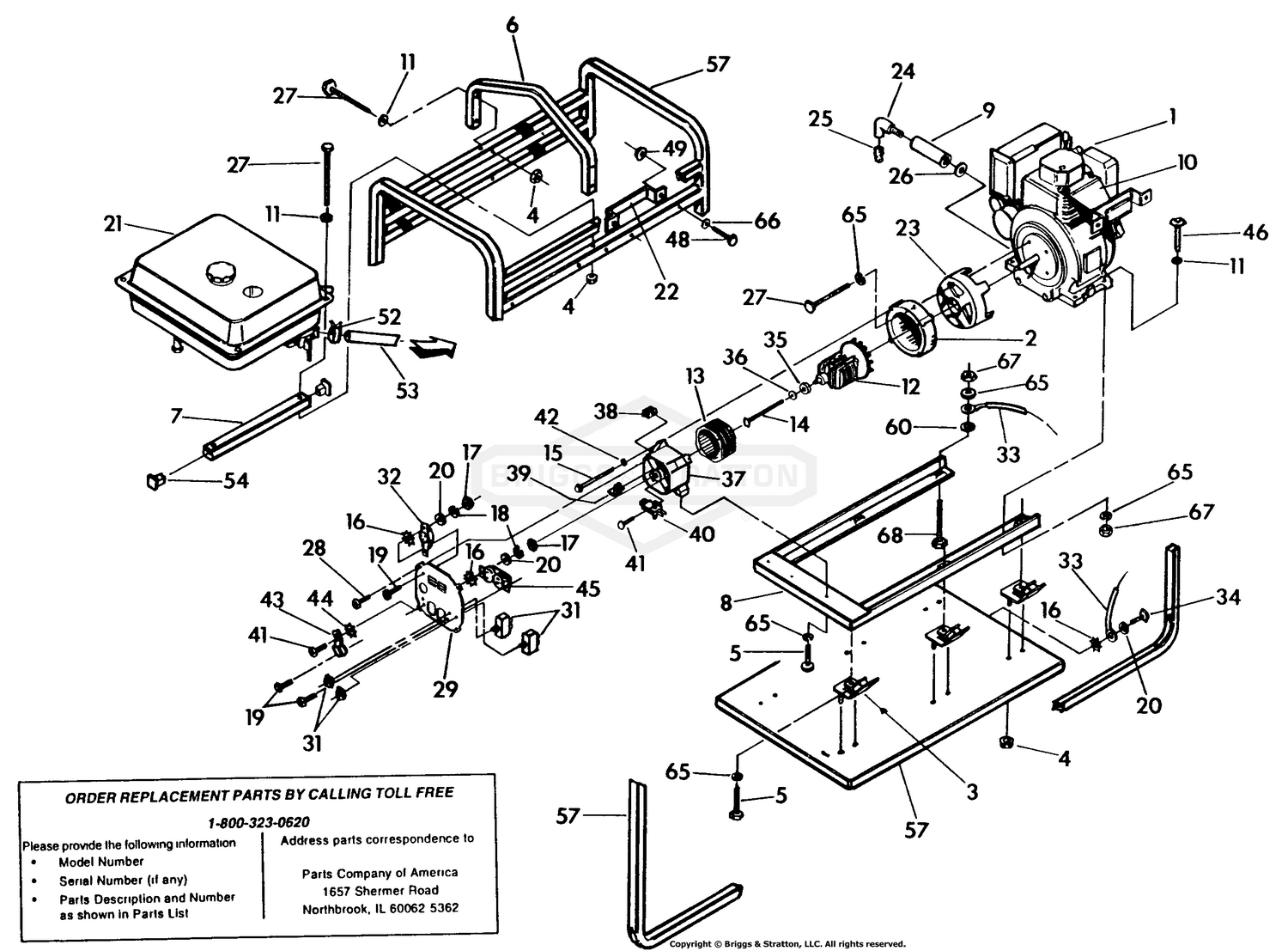

| Ref | Part Number | Description |
|---|
| 1 |
82100 |
Yanmar engine Price: $11.73 |
| 2 |
66365DGS |
ADPTR, HSNG, 8 HP This part replaces 66365D. Price: $56.99 |
| 3 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 4 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 5 |
70644GS |
SCREW This part replaces 70644. Price: $3.79 |
| 6 |
82104 |
Lifting eye Price: $52.98 |
| 8 |
82101 |
Sub base Price: $33.93 |
| 9 |
73536 |
Yanmar drain tube Price: Call Us |
| 10 |
7073504YP |
DECAL WARNING This part replaces 73504. Price: $6.09 |
| 12 |
74715 |
Rotor assembly Price: Call Us |
| 13 |
77259 |
Stator assembly Price: Call Us |
| 14 |
24823GS |
HHCS, 5/16" - 24 x 7-7/8" This part replaces 24823. Price: $16.09 |
| 15 |
66449E |
M6-115mm Stator bolt Price: Call Us |
| 16 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 17 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 18 |
22264 |
No. 8 Lock washer Price: $8.99 |
| 19 |
75475 |
M4-0.7 x 10mm Screw Price: $24.95 |
| 20 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 21 |
71886GS |
TANK, FUEL This part replaces 71886. Price: $321.75 |
| 22 |
71885 |
Retaining bracket Price: Call Us |
| 23 |
68342 |
Engine spacer Price: Call Us |
| 26 |
29910 |
Nylon washer Price: Call Us |
| 27 |
52265GS |
HHCS, M8-1.25 X 65 This part replaces 52265. Price: Call Us |
| 28 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 29 |
72098 |
Control panel Price: $26.25 |
| 31 |
77247GS |
BRKR, CRCT, 20A, 2P This part replaces 77247. Price: $6.90 |
| 33 |
10953621 |
Ground wire Price: Call Us |
| 34 |
24911GS |
TRILOBLAR, 8-32 x 3/8 This part replaces 24911. Price: $2.64 |
| 35 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 36 |
67451 |
M8 Special flat washer Price: Call Us |
| 37 |
66825 |
Rear bearing carrier Price: Call Us |
| 38 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 39 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 40 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 41 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 42 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 43 |
25433 |
Ground lug Price: Call Us |
| 44 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 45 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 46 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 48 |
51753GS |
HHCS, M6-1 0 X 40 This part replaces 51753. Price: $2.19 |
| 49 |
52857GS |
NUT-M6 FLANGE This part replaces 52857. Price: $3.06 |
| 52 |
48031D |
Hose clamps Price: Call Us |
| 54 |
81895GS |
CAP, Plug This part replaces 81895. Price: Call Us |
| 60 |
27482GS |
WASHER, 5/16" Ext. Shakeproof This part replaces 27482. Price: $2.19 |
| 65 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 67 |
5045771B |
SKID PLATE This part replaces 45771. Price: $55.95 |
