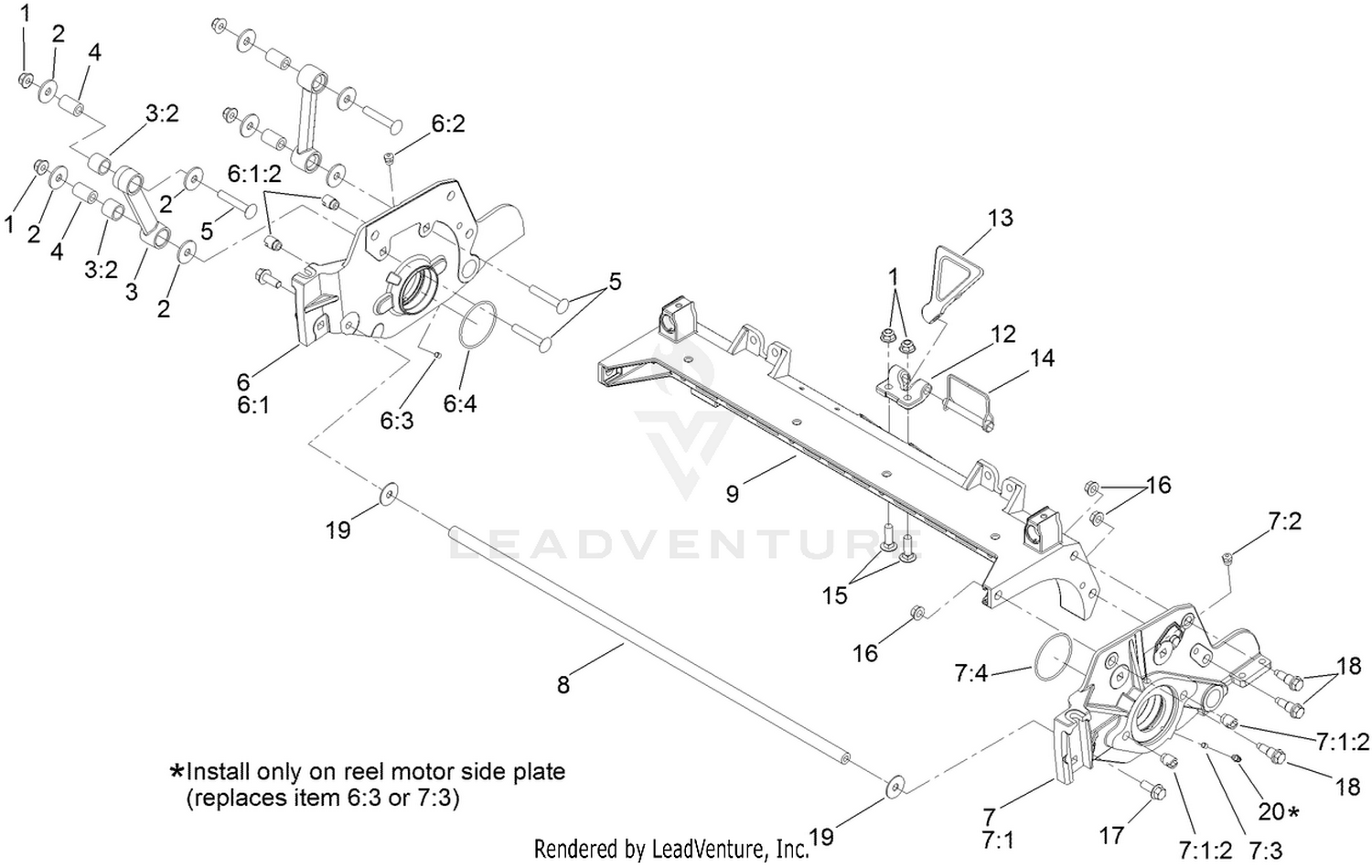

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 6 |
137-5973 |
RH SIDE PLATE ASM Price: $405.77 |
| 7 |
137-5970 |
LH SIDE PLATE ASM Price: $405.77 |
| 8 |
112-8936 |
TUBE-SUPPORT Price: $46.12 |
| 9 |
112-8935 |
FRAME-CENTER Price: $455.11 |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 13 |
119-8010-03 |
KICKSTAND Price: $34.60 |
| 14 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 19 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
