| Ref | Part Number | Description |
|---|
| 1 |
47-3650 |
CHAIN-LIFT, NO. 2 AND 3 Price: $119.48 |
| 1 |
532439819 |

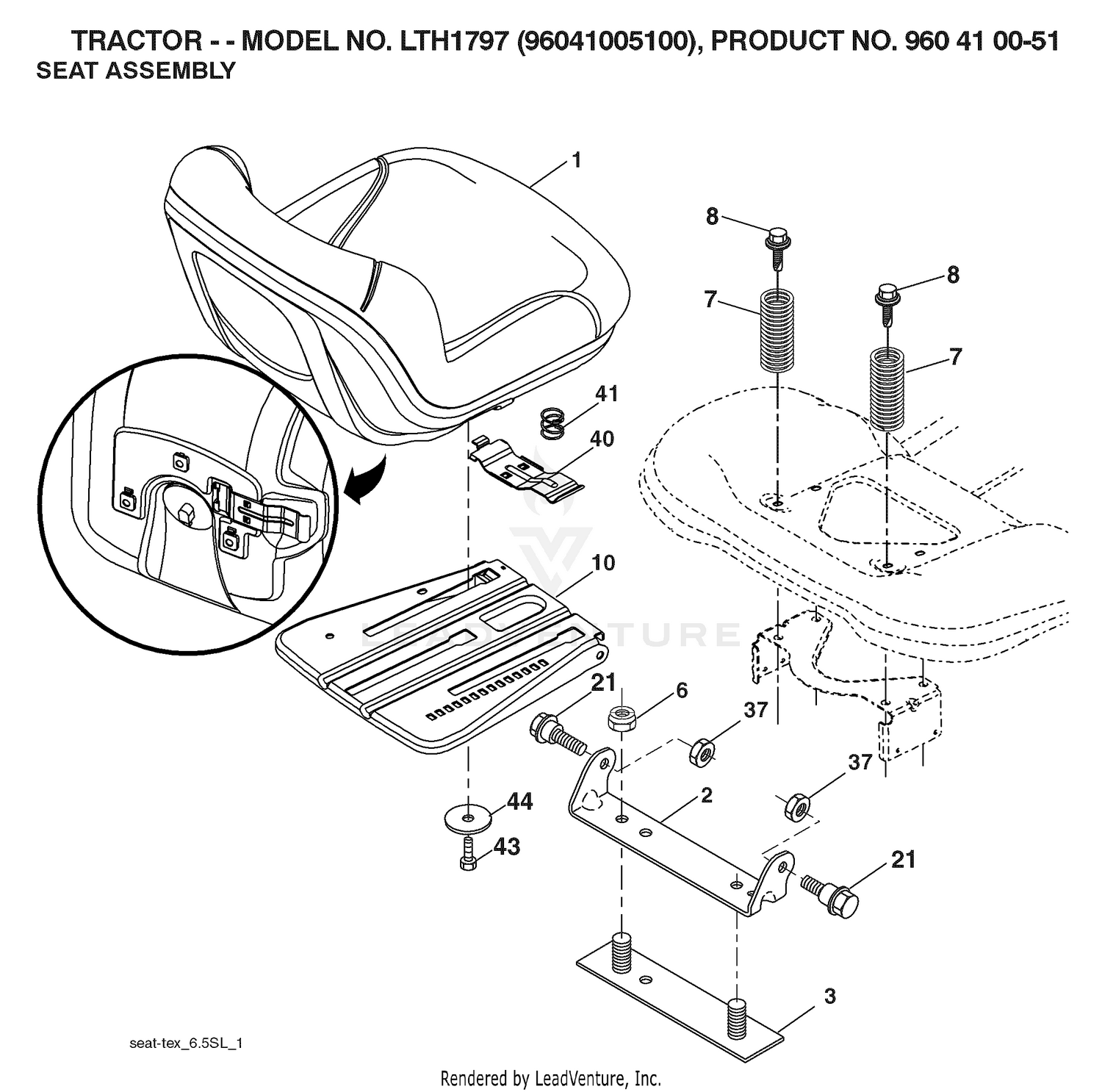

SEAT.TH130.GREY.HUSQ.TEX This part replaces 532197518. Price: $209.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
8-0280 |
DISCONTINUED Price: Call Us |
| 3 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
51-0850-01 |
SUPPORT-PULLEY This part replaces 51-0850. Price: $306.47 |
| 5 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
47-3930-01 |
LOCKUP BRACKET ASM This part replaces 47-3930. Price: $270.92 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
32128-23 |
NUT-HF Price: $1.51 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
47-3640-01 |
CYLINDER REST ASM This part replaces 47-3640. Price: $44.42 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3290-216 |
WASHER Price: $3.83 |
| 10 |
325-6 |
SCREW-HH Price: $1.42 |
| 11 |
47-3870-01 |
RH CHANNEL ASM This part replaces 47-3870. Price: $235.39 |
| 12 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 13 |
26-8590 |
PIN-CYLINDER Price: $23.00 |
| 14 |
237-79 |
O-RING Price: $5.46 |
| 15 |
353-537 |
FITTING-ELBOW, 90 DEG Price: $12.91 |
| 16 |
115-4949-01 |
HYDRAULIC CYLINDER ASM (14.00 STROKE) This part replaces 47-3720. Price: $1,376.05 |
| 17 |
20-4390 |
SPACER Price: $12.54 |
| 18 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 19 |
42-3550-01 |
COVER-MOUNT, CYLINDER This part replaces 42-3550. Price: $108.41 |
| 20 |
3-0144 |
SHAFT Price: $53.89 |
| 21 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
47-3860-01 |
LH CHANNEL ASM This part replaces 47-3860. Price: $215.68 |
| 23 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 24 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 25 |
47-3010-01 |
TRAILER ASM This part replaces 47-3010. Price: $3,956.22 |
| 26 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
60-9110-01 |
LIFT BAIL PIN ASM This part replaces 60-9110. Price: $84.41 |
| 29 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
47-3230-01 |
NO. 1 LIFT ARM ASM This part replaces 47-3230. Price: $907.15 |
| 32 |
32513-5 |
Nut-Lock Price: Call Us |
| 33 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 34 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 35 |
47-3660 |
CHAIN-LIFT, NO. 1 Price: $197.71 |
| 36 |
5-2942 |
SHACKLE Price: $16.99 |
| 37 |
325-7 |
SCREW-HH Price: $1.53 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
