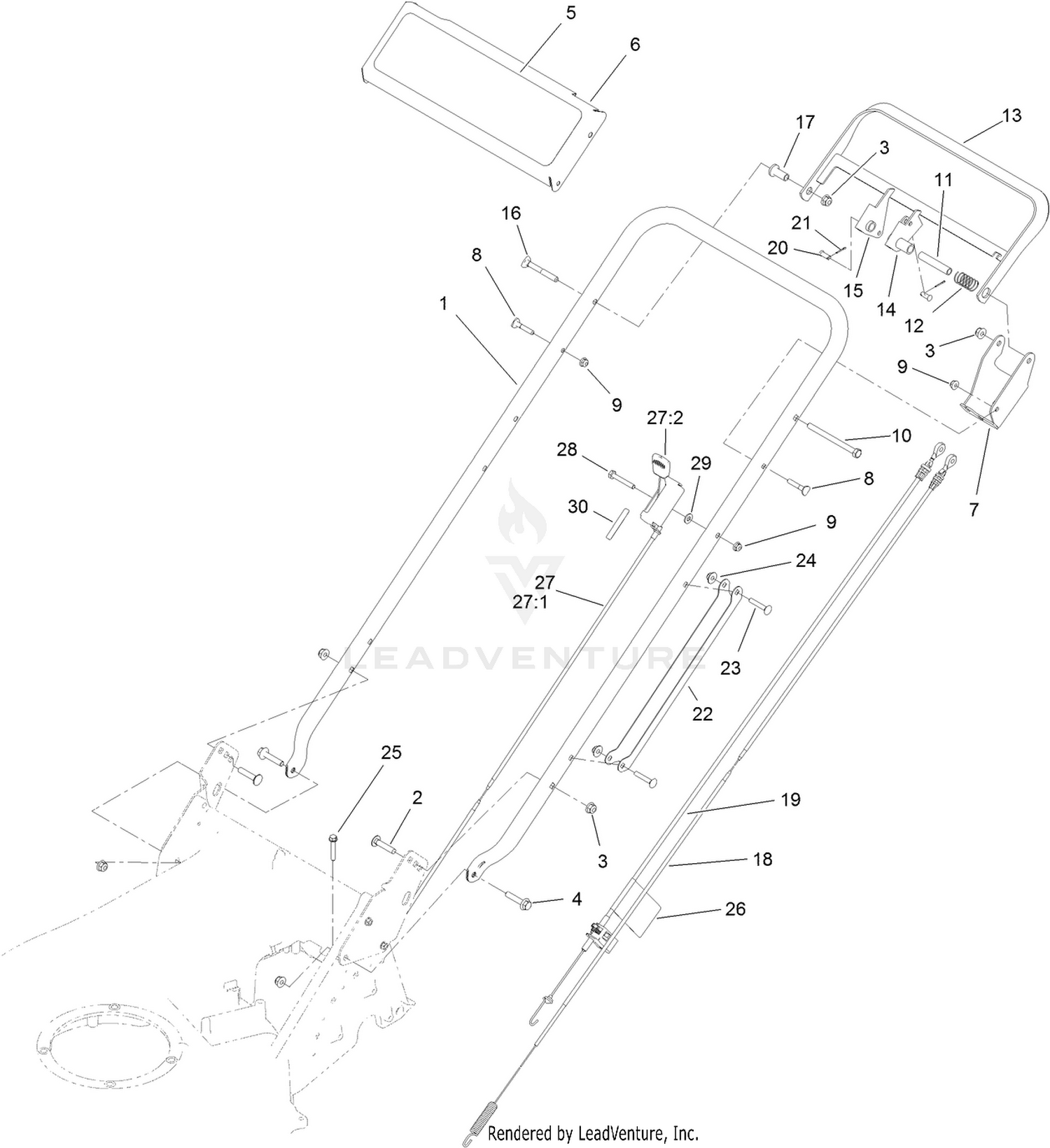

Handle and Control Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5861-03 | HANDLE This part replaces 125-1016-03. Price: $106.99 |
| 2 | 3230-4 | BOLT-CARR Price: $0.47 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-1794 | SCREW-HHF Price: $1.73 |
| 5 | 125-8421 | DECAL-TORO, COMMERCIAL Price: $13.99 |
| 6 | 125-8350-01 | PANEL-CONTROL Price: $35.99 |
| 7 | 125-8358-03 | BRACKET-CONTROL Price: $69.99 |
| 8 | 117-7737 | SCREW-HANDLE Price: $1.99 |
| 9 | 104-7201 | NUT-HF Price: $0.69 |
| 10 | 322-19 | SCREW-HH Price: $5.99 |
| 11 | 125-8424 | SPACER Price: $7.59 |
| 12 | 85-6750 | SPRING-CONTROL Price: $9.99 |
| 13 | 125-8357-03 | BAR-CONTROL Price: $59.99 |
| 14 | 125-8352 | LEVER-CONTROL Price: $32.99 |
| 15 | 125-8354 | LEVER-TRACTION Price: $35.99 |
| 16 | 125-8408 | SCREW-HANDLE Price: $2.09 |
| 17 | 125-8359 | SPACER-FLANGE Price: $4.19 |
| 18 | 130-9702 | CABLE-BBC Price: $36.99 |
| 19 | 130-9703 | CABLE-TRACTION, BBC Price: $54.99 |
| 20 | 84-9040 | PIN-CABLE Price: $11.99 |
| 21 | 3272-1 | PIN-COTTER Price: $0.25 |
| 22 | 127-6897-03 | GUARD-CABLE, HANDLE Price: $8.99 |
| 23 | 108-0988 | SCREW-CARR Price: $0.79 |
| 24 | 114-3778 | NUT-HF Price: $1.29 |
| 25 | 94-2691 | SCREW-HWH Price: $1.02 |
| 26 | 130-6722 | DECAL Price: $4.39 |
| 27 | 125-8374 | CONTROL-THROTTLE/CHOKE Price: $54.99 |
| 28 | 321-10 | SCREW-HH Price: $1.29 |
| 29 | 3256-22 | WASHER-FLAT Price: $0.39 |
