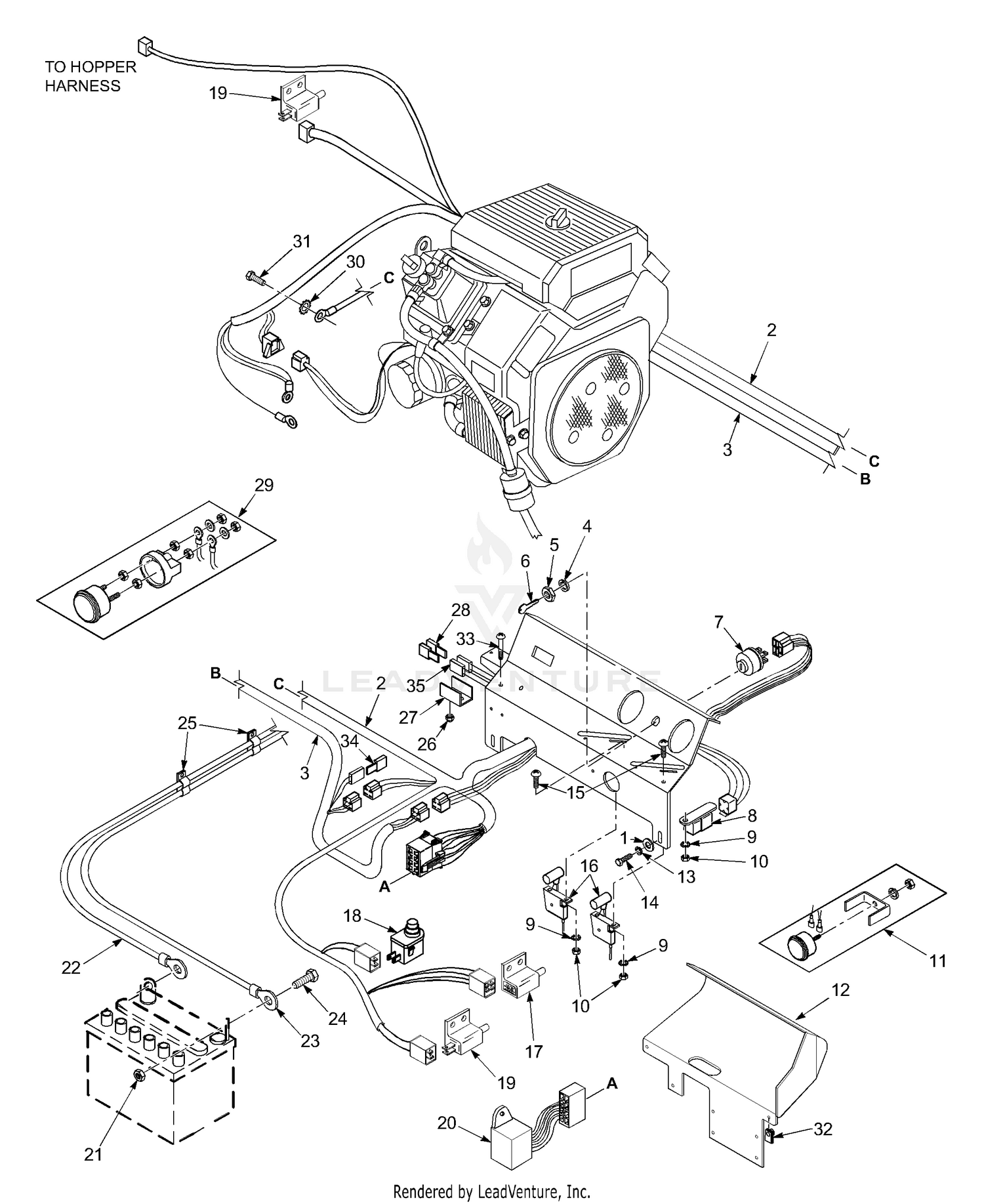

| Ref | Part Number | Description |
|---|
| 1 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 2 |
482318 |
Wire Harness, SCR Price: Call Us |
| 3 |
482319 |
Wire Harness, Hopper Price: Call Us |
| 4 |
48017-03 |
Lockwasher, Internal 5/8" Price: Call Us |
| 5 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 7 |
48798 |
Keyswitch w/hardware Price: Call Us |
| 8 |
48788 |
Relay Price: Call Us |
| 9 |
04031-01 |
Lockwasher, #10 external tooth Price: Call Us |
| 10 |
04020-01 |
Nut, #10-32 UNF Price: Call Us |
| 11 |
48023 |
Hour Meter Price: Call Us |
| 12 |
451185 |
Instrument Panel, Lower Price: Call Us |
| 13 |
04030-03 |
Lockwasher, 5/16 Price: Call Us |
| 14 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 15 |
04010-01 |
Screw, #10-32 x 1/2" Price: Call Us |
| 16 |
482032 |
Control Cable Price: Call Us |
| 17 |
481545 |
Switch, PTO Price: Call Us |
| 18 |
481638 |
Switch, Seat Price: Call Us |
| 19 |
481637 |
Switch, Brake & Hopper Price: Call Us |
| 20 |
483599 |
Electric Module This part replaces 482313. Price: Call Us |
| 21 |
04020-02 |
Nut, 1/4-20 Price: Call Us |
| 22 |
48029-19 |
Battery Cable, Black Price: Call Us |
| 23 |
48029-20 |
Battery Cable, Red Price: Call Us |
| 24 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 25 |
48030-18 |
Cable Clamp, Double Price: Call Us |
| 26 |
04021-01 |
Nut, Elastic Stop #10 Price: Call Us |
| 27 |
42413 |
Bracket, Fuse Holder Price: Call Us |
| 28 |
48298 |
Fuse, 20 Amp Price: Call Us |
| 29 |
481755 |
Ammeter Price: Call Us |
| 30 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 31 |
04001-18 |
Bolt, Hex Head Price: Call Us |
| 32 |
04110-02 |
U-Nut, 5/16-18 Price: Call Us |
| 33 |
04010-11 |
Screw, #10-32 x 1-1/2" Price: Call Us |
| 34 |
482157 |
Fuse, 15 Amp Price: Call Us |
