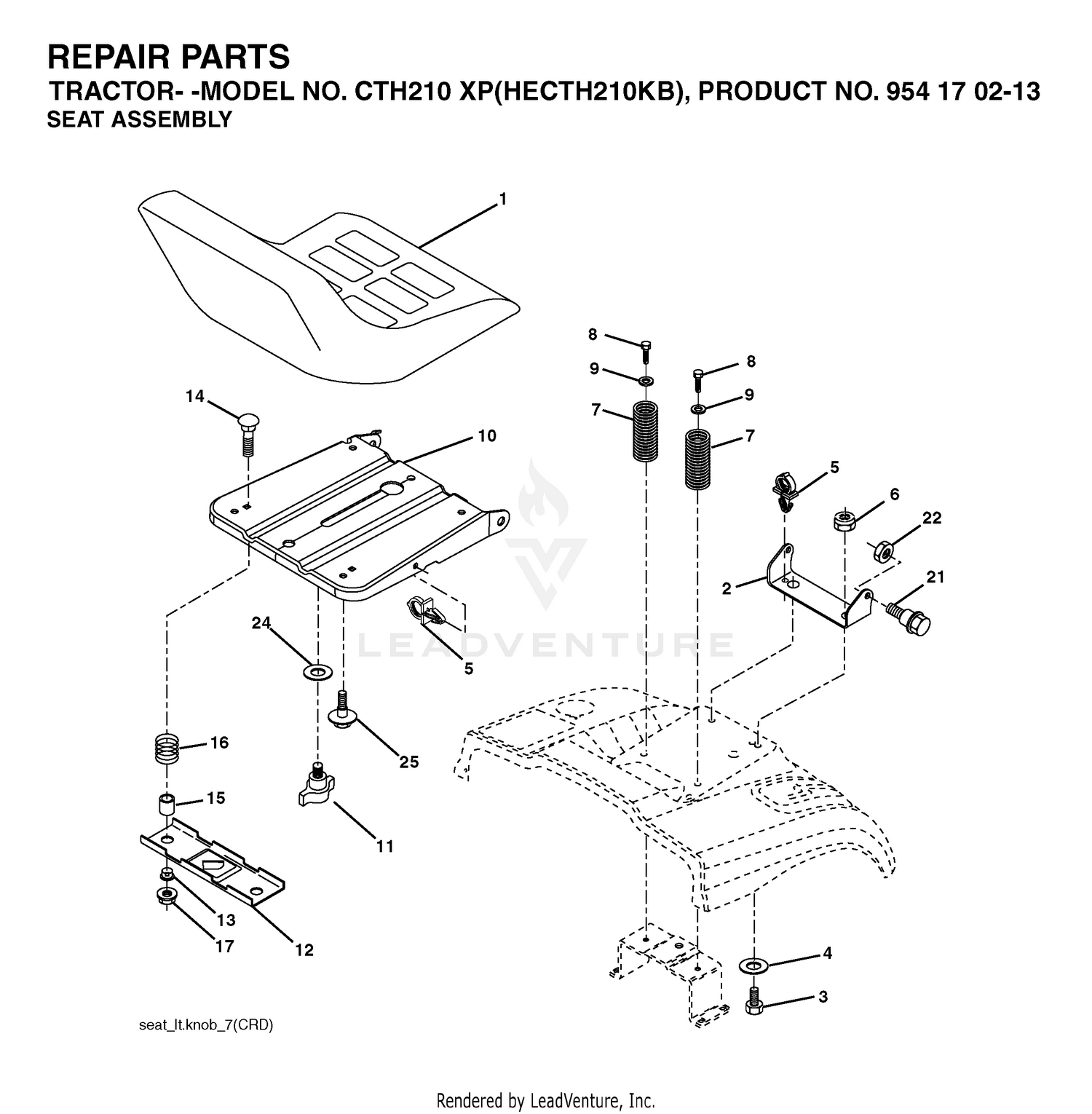

| Ref | Part Number | Description |
|---|
| 1 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
120-8095 |
PEDAL Price: Call Us |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 6 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
323-29 |
SCREW-HH Price: $0.42 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
114-5608 |
SPACER-STANDOFF Price: $15.74 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
120-8088-0P |
HUB-TRACTION PEDAL PIVOT This part replaces 120-8088-03. Price: $69.27 |
| 19 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 21 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 23 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 24 |
84-9100 |
SPRING Price: $11.99 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 33 |
120-8038 |
HUB ASM Price: $121.12 |
| 36 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 37 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 38 |
32105-21 |
SCREW-HH Price: $1.09 |
| 40 |
120-8091 |
SHAFT-PIVOT, TRACTION Price: $33.82 |
| 41 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 43 |
120-8089 |
PLATE-COVER, SENSOR Price: $3.38 |
| 44 |
121-3099 |
PLUG-PANEL, PLASTIC Price: $1.87 |
| 45 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 46 |
3290-321 |
SCREW-HWH Price: $3.99 |
