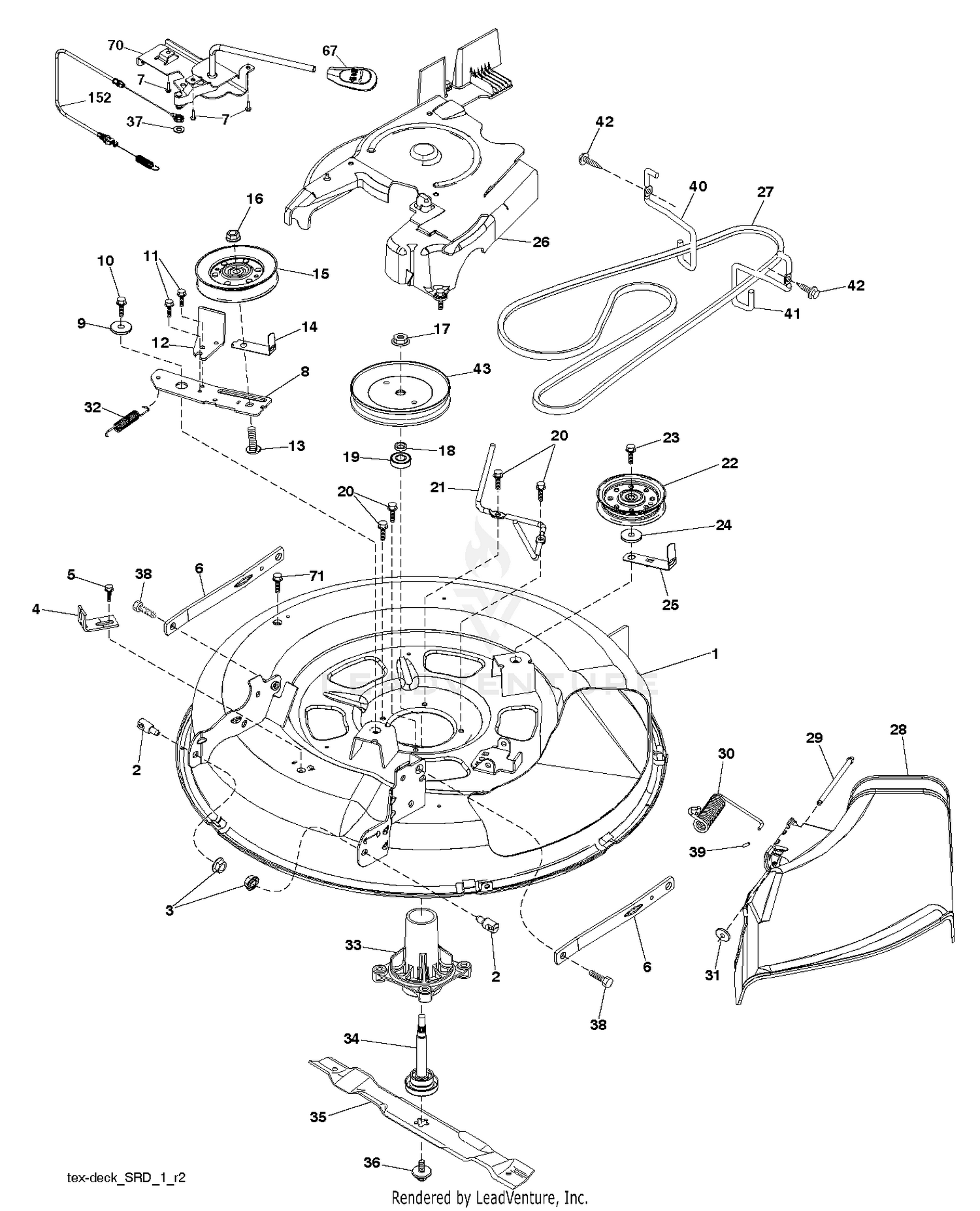

| Ref | Part Number | Description |
|---|
| 1 |
38-6730 |
DISCONTINUED This part replaces 10-7650. Price: Call Us |
| 1 |
583749801 |
DECK.WELDMENT.30"SRDPNT This part replaces 532419272. Price: $279.99 |
| 2 |
10-7660 |
DISCONTINUED Price: Call Us |
| 2 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 3 |
10-7620 |
DISCONTINUED Price: Call Us |
| 3 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 4 |
10-7640 |
REAR UNIT RETURN HOSE Price: $66.43 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $2.99 |
| 5 |
10-7490 |
DISCONTINUED Price: Call Us |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 6 |
10-7560 |
DISCONTINUED Price: Call Us |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $4.99 |
| 7 |
10-7600 |
DISCONTINUED Price: Call Us |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
11-6450 |
DISCONTINUED Price: Call Us |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 9 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 9 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 10 |
10-7740 |
DISCONTINUE Price: Call Us |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 11 |
10-7710 |
DISCONTINUED Price: Call Us |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 12 |
10-7680 |
DISCONTINUED Price: Call Us |
| 12 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 13 |
10-7510 |
DISCONTINUED Price: Call Us |
| 13 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 14 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 14 |
7-3123 |
DISCONTINUED Price: Call Us |
| 15 |
10-7500 |
DISCONTINUED Price: Call Us |
| 15 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 16 |
47-4830 |
DISCONTINUED This part replaces 10-7700. Price: Call Us |
| 16 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 17 |
10-7710 |
DISCONTINUED This part replaces 10-7690. Price: Call Us |
| 17 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 18 |
10-7520 |
DISCONTINUED Price: Call Us |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 19 |
10-7610 |
DISCONTINUED Price: Call Us |
| 19 |
532110485 |
BEARING Price: $7.99 |
| 20 |
10-7540 |
DISCONTINUED Price: Call Us |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 21 |
10-7530 |
DISCONTINUED Price: Call Us |
| 21 |
532416910 |
KEEPER.BELT.MANDREL.30" Price: $11.99 |
| 22 |
353-382 |
DISCONTINUED Price: Call Us |
| 22 |
532175820 |
PULLEY.IDLER.FLAT.46.PR.DR. Price: $19.99 |
| 23 |
10-7630 |
DISCONTINUED Price: Call Us |
| 23 |
817490628 |
SCREW LT Price: $3.99 |
| 24 |
10-7670 |
LH FRT RETURN HOSE Price: $49.52 |
| 24 |
819132012 |
WASHER Price: $2.99 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $2.99 |
| 26 |
583481101 |
COVER.ASM.MANDREL.30" This part replaces 532420255. Price: $27.99 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $39.99 |
| 28 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $34.99 |
| 29 |
583383801 |
PIN.HINGE.30 This part replaces 532420895. Price: $2.99 |
| 30 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 31 |
532110452 |
NUT PUSH M Price: $1.99 |
| 32 |
532401872 |
SPRING RETURN Price: $2.99 |
| 33 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 34 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 35 |
532419274 |
BLADE.MOWER.BAGGING.30" Price: $19.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 39 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 40 |
532419270 |
KEEPER.BELT.ENGINE.LH.LT.SRD Price: $11.99 |
| 41 |
532419265 |
KEEPER.BELT.ENGINE.RH.LT.SRD Price: $11.99 |
| 42 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 43 |
525568001 |
PULLEY, MANDREL 6.5" BLK This part replaces 532416877. Price: $24.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 71 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
