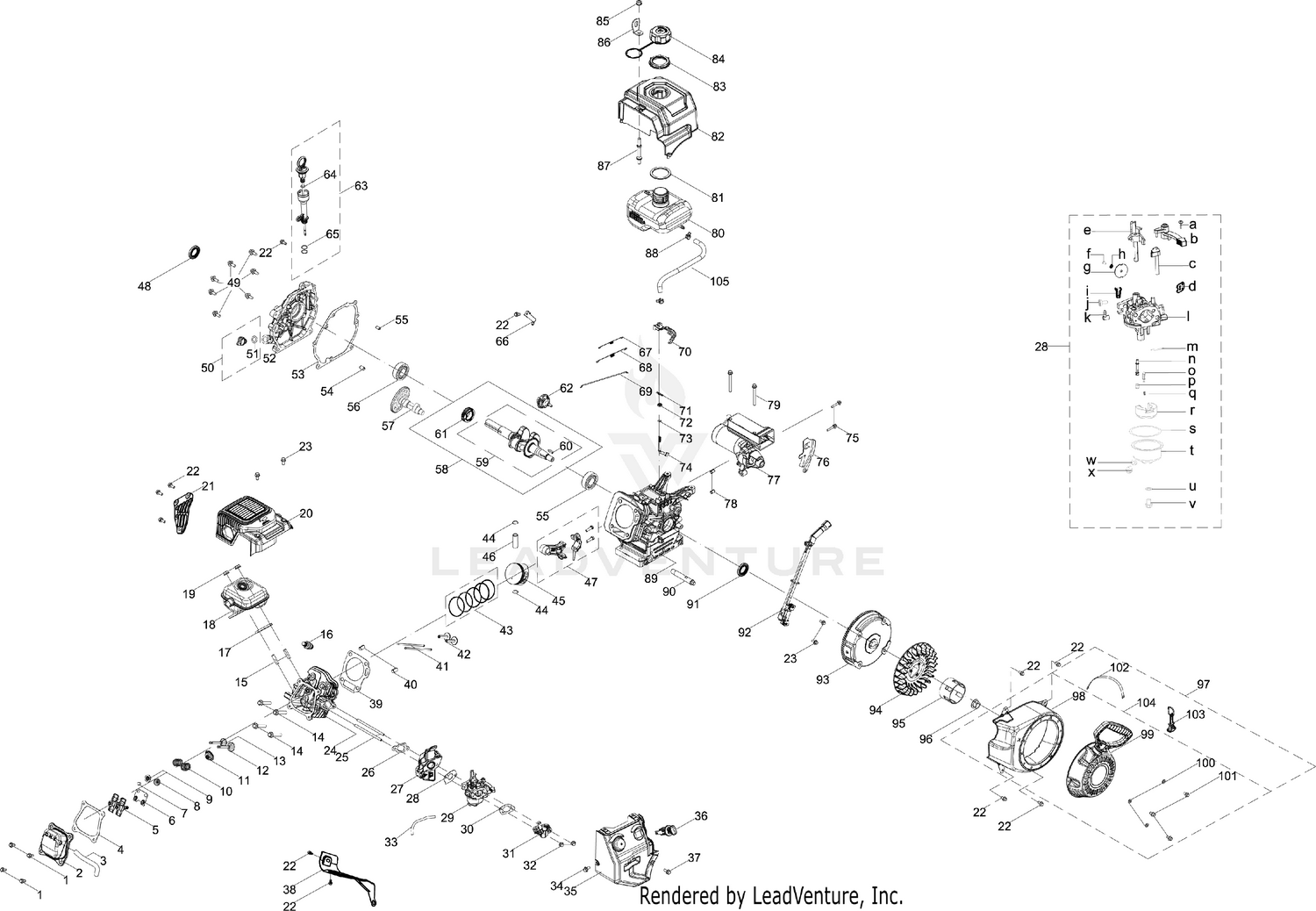

270-XU General Assembly
Parts (127)
| Ref | Part Number | Description |
|---|---|---|
| a | 710-05459 | CHOKE LEVER SCREW Price: $3.70 |
| b | None | Choke Lever |
| c | None | Choke Shaft |
| d | None | Choke Plate |
| e | 711P06026 | THROTTLE SHAFT Price: $3.46 |
| f | 710-09494A | SCREW M3 X 6 This part replaces 710-07736. Price: $2.63 |
| g | 708P05012 | THROTTLE PLATE Price: $2.45 |
| h | None | Washer, 3 |
| i | None | Idle Jet |
| j | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| k | 951-12019A | PRIMER HOSE Price: $6.17 |
| l | None | Carburetor Body |
| m | 711-06043A | FLOAT PIN This part replaces 711-06043. Price: $0.56 |
| n | None | Nozzle Tube |
| o | 793P00165A | NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| p | None | Main Jet |
| q | 732P05251A | NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| r | 731P09132A | FLOAT Price: $4.45 |
| s | 951-11589 | FUEL BOWL O-RING Price: $6.04 |
| t | 908-05001 | FLOAT BOWL Price: $7.16 |
| u | 951-11348A | FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| v | 710-04945 | BOLT M8-1 x 10 Price: $3.66 |
| w | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| x | 710-04938 | FUEL DRAIN PLUG Price: $3.66 |
| 1 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 2 | 751P21968 | VALVE COVER Price: $5.36 |
| 3 | 751P21969 | BREATHER HOSE Price: $5.77 |
| 4 | 751P11565B | VALVE COVER GASKET Price: $8.97 |
| 6 | 751P21988 | ROCKER ARM BASE Price: $2.39 |
| 7 | 751-11123 | VALVE ADJUST NUT Price: $9.09 |
| 8 | 751P12003A | EXHAUST VALVE SPRING RETAINER Price: $2.15 |
| 9 | 751P12000A | INTAKE VALVE SPRING RETAINER Price: $2.15 |
| 10 | 751P12004A | VALVE SPRING Price: $1.74 |
| 11 | 751P11894A | INTAKE VALVE SEAL Price: $2.40 |
| 12 | 751P14099A | INTAKE VALVE Price: $3.53 |
| 13 | 751P14100A | EXHAUST VALVE Price: $3.43 |
| 14 | 710-04933 | BOLT M8-1.25 x 55 GR10.9 Price: $3.42 |
| 15 | 710-04911 | STUD M8 x 36 Price: $3.65 |
| 16 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 17 | 751P11289A | MUFFLER GASKET Price: $1.96 |
| 18 | 751P21970 | MUFFLER Price: $32.30 |
| 19 | 712-04214 | NUT Price: $3.86 |
| 20 | 751P22148 | MUFFLER GUARD Price: $19.13 |
| 21 | 751P22149 | EXHAUST PIPE GUARD Price: $3.58 |
| 22 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 23 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 24 | 751P21989 | CYLINDER HEAD Price: $44.36 |
| 25 | 951-15580 | STUD M6 x 90 Price: $5.25 |
| 26 | 751P11567B | CARBURETOR INSULATOR GASKET Price: $1.73 |
| 27 | 751P21991 | CARBURETOR INSULATOR Price: $6.41 |
| 28 | 751P12005B | CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 29 | 651P08475 | CARBURETOR Price: $46.39 |
| 30 | 751P11897B | CARBURETOR GASKET Price: $1.61 |
| 31 | 751P22150 | AIR INTAKE Price: $6.41 |
| 32 | 712-05015 | HEX NUT Price: $5.78 |
| 33 | 751P22011 | FUEL HOSE 3.2x6.5x115 Price: $2.57 |
| 34 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 35 | 751P22012 | CONTROL PANEL Price: $19.28 |
| 36 | 951-15022A | ENGINE KEY SWITCH ASSEMBLY This part replaces 951-15022. Price: $9.61 |
| 37 | 710-05003A | BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 38 | 951-11113 | AIR SHIELD Price: $8.11 |
| 39 | 951-11572 | CYLINDER HEAD GASKET Price: $10.38 |
| 40 | 715P04090A | PIN (10MMx16MM) Price: $2.95 |
| 41 | 751P14105A | PUSH ROD Price: $2.40 |
| 42 | 751P11899A | TAPPET Price: $6.34 |
| 43 | 951-14317A | PISTON RING SET This part replaces 951-14317. Price: $23.87 |
| 44 | 951-11632 | PISTON PIN SNAP RING Price: $3.53 |
| 45 | 951-15052 | PISTON Price: $36.19 |
| 46 | 751P11633A | PISTON PIN Price: $1.53 |
| 47 | 751P11573A | CONNECTING ROD Price: $8.87 |
| 48 | 751P11368A | OIL SEAL Price: $2.70 |
| 49 | 710-04932 | BOLT M8-1.25 x 32 GR5.8 Price: $3.66 |
| 50 | 931-09966A | OIL PLUG This part replaces 931-09966. Price: $4.81 |
| 51 | 951-11577 | O-RING 15.8 x 2.5 Price: $3.53 |
| 52 | 751P17706 | CRANKCASE COVER This part replaces 951-12125. Price: $29.04 |
| 53 | 751P11371B | CRANKCASE GASKET Price: $3.07 |
| 54 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 55 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 56 | 751P11369A | BEARING Price: $5.19 |
| 57 | 751P15128A | CAMSHAFT Price: $7.27 |
| 58 | 651P08517 | CRANKSHAFT (W/TIMING GEAR) Price: $59.76 |
| 59 | 651P08516 | CRANKSHAFT Price: $54.74 |
| 60 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 61 | 951-15130 | DRIVE TIMING GEAR Price: $12.54 |
| 62 | 951-15004 | GOVERNOR GEAR ASSEMBLY Price: $8.01 |
| 63 | 651P08555 | DIPSTICK Price: $5.90 |
| 64 | 751P22152 | DIPSTICK O-RING Price: $3.20 |
| 65 | 951-12397 | OIL FILL TUBE O-RING Price: $4.39 |
| 66 | 951-11104 | GOVERNOR SPRING BRACKET Price: $3.18 |
| 67 | 951-15035 | GOVERNOR SPRING Price: $9.52 |
| 68 | 751P10664A | THROTTLE SPRING Price: $2.01 |
| 69 | 751P10665A | THROTTLE LINKAGE Price: $1.53 |
| 70 | 951-14089 | GOVERNOR LEVER Price: $6.67 |
| 71 | 714-04078A | COTTER PIN Price: $3.19 |
| 72 | 951-11902A | OIL SEAL Price: $3.36 |
| 73 | 736-04461 | O-RING Price: $3.50 |
| 74 | 951-14053 | GOVERNOR SHAFT Price: $13.94 |
| 75 | 710-05182 | BOLT M6-1 x 32 GR8.8 Price: $3.61 |
| 76 | 751P16487 | LOWER HOUSING Price: $2.40 |
| 77 | 751P22048 | ELECTRIC STARTER Price: $255.95 |
| 78 | 715-04088A | DOWEL PIN This part replaces 715-04088. Price: $2.97 |
| 79 | 751-22072 | HEX CAP SCREW M6x65 Price: $2.39 |
| 80 | 651P08495 | FUEL TANK Price: $18.24 |
| 81 | NOT | SERVICEABLE Not Serviceable Price: Call Us NOT SERVICEABLE |
| 82 | 751P22073 | FUEL TANK SHROUD Price: $19.28 |
| 83 | 731-08104 | FUEL TANK NUT Price: $6.38 |
| 84 | 751P22009 | FUEL CAP Price: $11.56 |
| 85 | 712-05521 | NUT M8 Price: $0.92 |
| 86 | 751P22070 | LIFT HOOK Price: $2.39 |
| 87 | 751-22071 | STUD M8 1.0x90 Price: $3.58 |
| 88 | 951-11700A | CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 89 | 751P22049 | CRANKCASE Price: $107.67 |
| 90 | 751P22154 | OIL DRAIN TUBE This part replaces 751-22154. Price: $3.66 |
| 91 | 751P11370A | OIL SEAL Price: $2.23 |
| 92 | 751P22050 | IGNITION MODULE Price: $46.93 |
| 93 | 751P22051 | FLYWHEEL Price: $53.83 |
| 94 | 951-10909B | COOLING FAN This part replaces 951-10934. Price: $20.39 |
| 95 | 951-14887 | STARTER CUP Price: $12.71 |
| 96 | 712-04287A | FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 98 | 751P22028 | BLOWER HOUSING Price: $25.11 |
| 99 | 751P22029 | RECOIL STARTER ASSEMBLY Price: $43.73 |
| 100 | 736-04455B | FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 101 | 710-06354 | BOLT M6 x 10 Price: $5.73 |
| 102 | 725-06031 | CABLE TIE - 3 x 150 Price: $2.04 |
| 103 | 751P22156 | IGNITION KEY Price: $4.92 |
| 104 | 651P08520 | RECOIL STARTER Price: $47.85 |
| 105 | 751P22157 | FUEL HOSE 6.3x12.5x270 Price: $12.55 |
