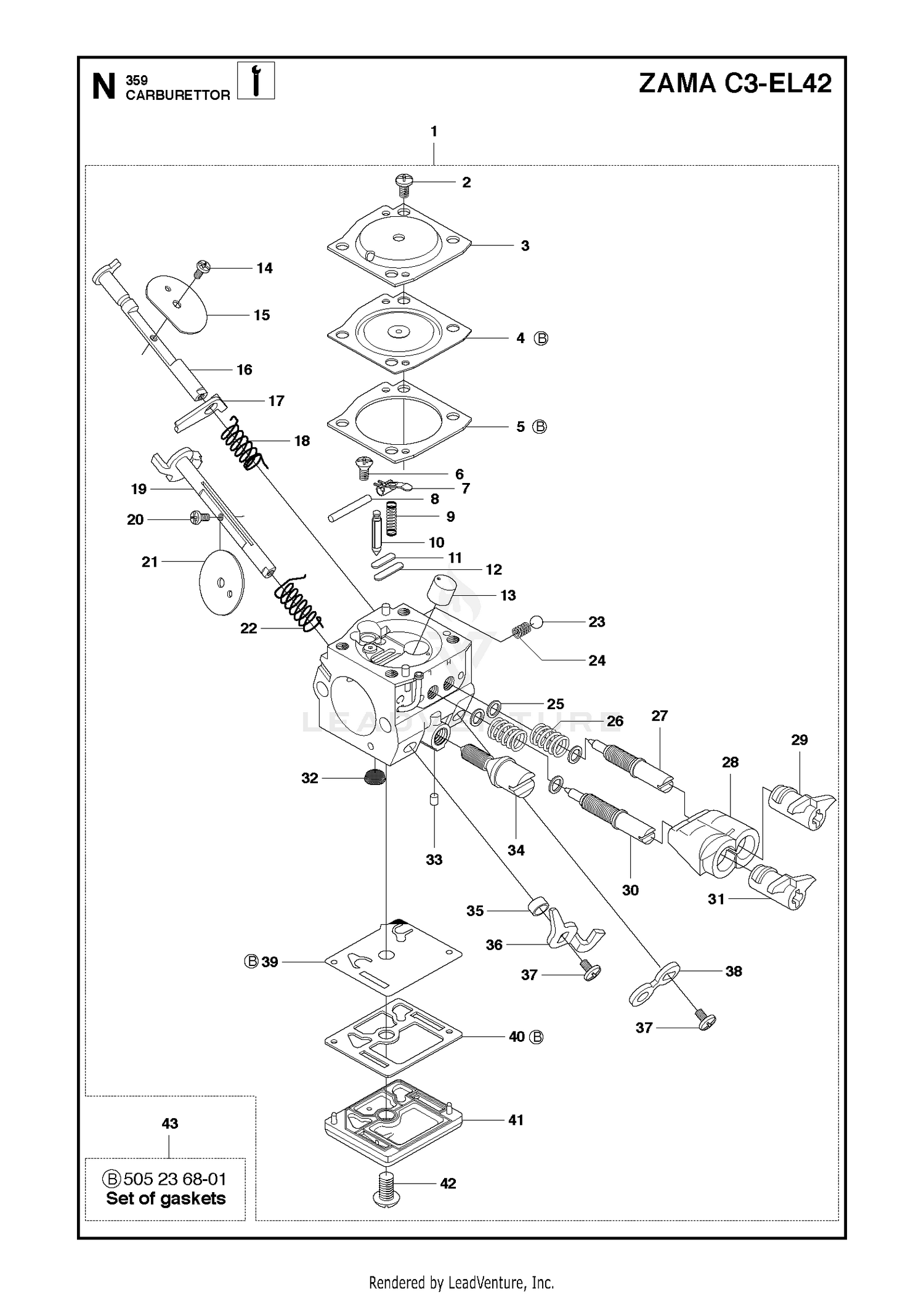

CARBURETOR
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505203002 | CARBURETOR W/SLEEVE This part replaces 505203001. Price: $79.99 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 537176001 | COVER Price: $6.99 |
| 4 | 537175901 | DIAPHRAGM Price: $19.99 |
| 5 | 505223901 | GASKET Price: $4.99 |
| 6 | 544082101 | SCREW Price: $2.99 |
| 7 | 537176401 | LEVER Price: $6.99 |
| 8 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 9 | 537176301 | SPRING Price: $4.99 |
| 10 | 537176201 | VALVE Price: $12.99 |
| 11 | 537177801 | PLUG Price: $3.99 |
| 12 | 503535601 | PLUG Price: $3.99 |
| 13 | 505236701 | NOZZLE ASSY Price: $12.99 |
| 14 | 503523601 | SCREW Price: $2.99 |
| 15 | 537177201 | CHOKE FLAP Price: $7.99 |
| 17 | 544056701 | THROTTLE LOCK Price: $7.99 |
| 18 | 537176601 | SPRING Price: $4.99 |
| 19 | 537175701 | THROTTLE SHAFT Price: $11.99 |
| 20 | 503481801 | SCREW Price: $2.99 |
| 21 | 537177001 | THROTTLE FLAP Price: $14.99 |
| 22 | 537176101 | SPRING Price: $4.99 |
| 23 | 537012501 | BALL Price: $2.99 |
| 24 | 537012601 | SPRING Price: $2.99 |
| 25 | 503903101 | WASHER Price: $2.99 |
| 26 | 503994301 | SPRING This part replaces 503480801. Price: $2.99 |
| 27 | 537178501 | JET Price: $11.99 |
| 28 | 503903401 | SLEEVE Price: $6.99 |
| 29 | 503903301 | LIMITER CAP Price: $3.99 |
| 30 | 537178601 | LOW SPEED NEEDLE Price: $21.99 |
| 31 | 503903201 | LIMITER CAP Price: $4.99 |
| 32 | 503535701 | STRAINER Price: $3.99 |
| 33 | 503481101 | PLUG Price: $3.99 |
| 34 | 504027301 | SCREW Price: $5.99 |
| 35 | 503481901 | BUSHING Price: $5.99 |
| 36 | 537176901 | LEVER Price: $4.04 |
| 37 | 503479001 | SCREW Price: $2.99 |
| 38 | 537177501 | LEVER Price: $8.99 |
| 39 | 537380201 | PUMP DIAPHRAGM Price: $14.99 |
| 40 | 503616601 | GASKET Price: $2.99 |
| 41 | 537176801 | COVER Price: $24.10 |
| 42 | 503479601 | SCREW Price: $2.99 |
