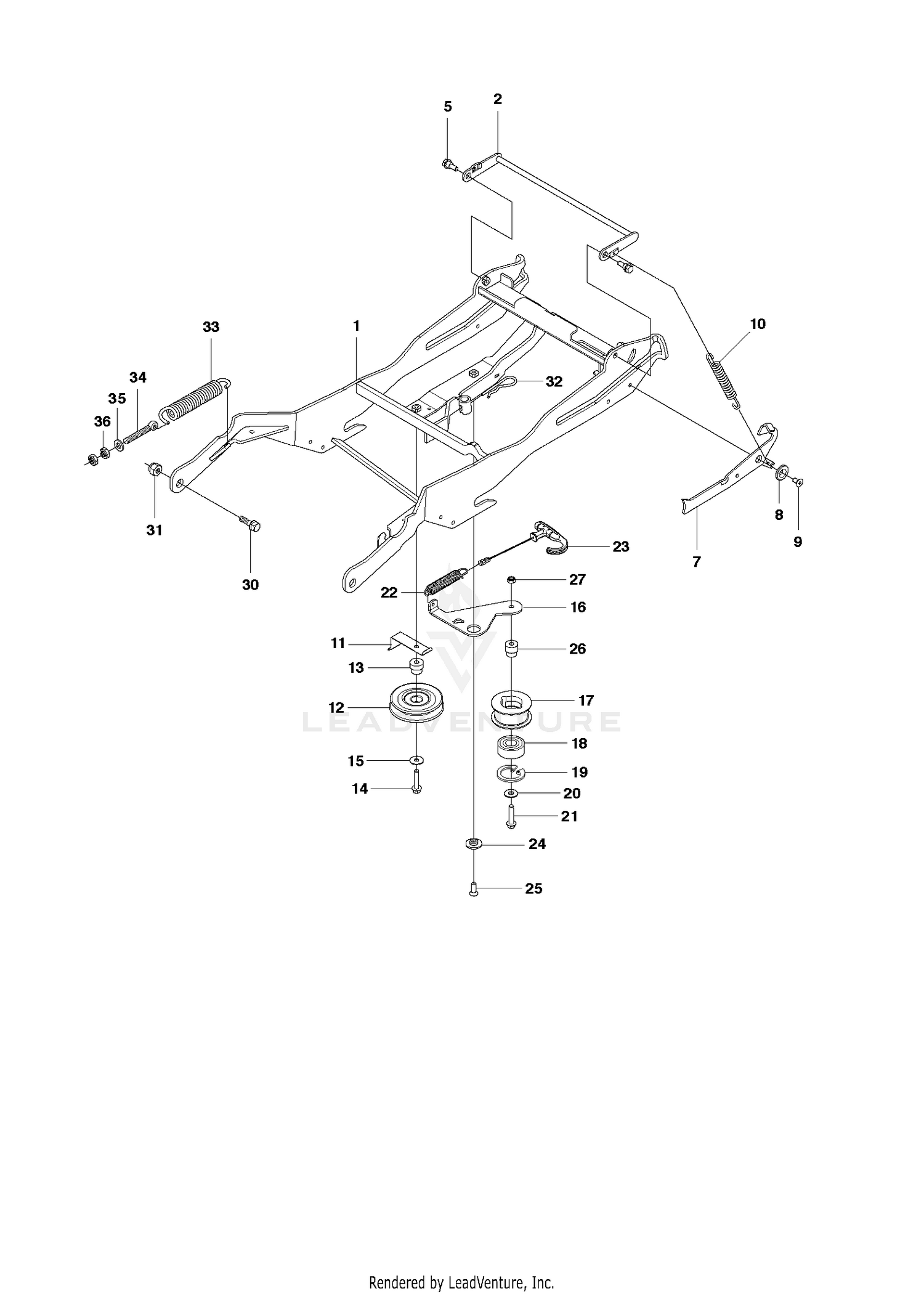

FRAME
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 523064203 | EQUIPMENT FRAME GREY C94/C103 This part replaces 523064201. Price: $349.00 |
| 2 | 525475901 | HOOK Price: $17.99 |
| 5 | 506597401 | BOLT Price: $5.99 |
| 7 | 523116602 | LEVER Price: $11.99 |
| 8 | 506918701 | SPACER Price: $5.99 |
| 9 | 725644801 | SCREW IHCSFM Price: $2.99 |
| 10 | 506535603 | SPRING Price: $4.99 |
| 10 | 98-9596 | JOINT-EYE Price: $18.69 |
| 11 | 525486701 | BELT GUIDE Price: $3.99 |
| 12 | 506974801 | PULLEY Price: $44.99 |
| 13 | 506826802 | BUSHING Price: $8.99 |
| 14 | 725245951 | SCREW Price: $4.99 |
| 15 | 734116441 | SPACER Price: $3.99 |
| 16 | 523083701 | Price: Call Us |
| 18 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 19 | 735313810 | RETAINING RING Price: $2.99 |
| 20 | 734116441 | SPACER Price: $3.99 |
| 20 | 98-9643 | INJECTION PUMP ASM Price: $2,551.99 |
| 21 | 725245951 | SCREW Price: $4.99 |
| 22 | 504622401 | SPRING Price: $7.99 |
| 23 | 504622102 | HANDLE ASSY Price: $14.99 |
| 24 | 586496701 | WASHER SHOULDER ASSY This part replaces 505451701. Price: $4.99 |
| 25 | 725645301 | SCREW Price: $3.99 |
| 26 | 535484801 | BUSHING Price: $22.99 |
| 27 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 30 | 506895801 | BOLT Price: $6.99 |
| 30 | 98-9464 | BOLT-JOINT Price: $20.48 |
| 31 | 732252201 | Nut Price: $2.65 |
| 32 | 506966601 | RETAINER Price: $3.99 |
| 33 | 506837601 | SPRING Price: $27.99 |
| 34 | 506837701 | SCREW Price: $8.99 |
| 35 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 36 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 40 | 98-9445 | GASKET Price: $1.84 |
| 50 | 98-9430 | SCREW Price: $19.45 |
| 60 | 98-9446 | GASKET Price: $2.50 |
| 70 | 98-9466 | PLUG Price: $12.54 |
| 80 | 98-9451 | GASKET Price: $1.92 |
| 90 | 115-3045 | SHIM-INJECTION (0.175MM) Price: $10.31 |
| 90 | 115-3046 | SHIM-INJECTION (0.35MM) Price: $10.62 |
| 90 | 98-9456 | SHIM-INJECTION (0.20MM) Price: $7.29 |
| 90 | 98-9457 | SHIM-INJECTION (0.25MM) Price: $8.40 |
| 90 | 98-9458 | SHIM-INJECTION (0.30MM) Price: $12.10 |
| 110 | 117-7564 | BOLT-HEX SOC HD Price: $2.53 |
| 120 | 98-9438 | STUD Price: $1.33 |
| 130 | 98-9440 | NUT-CAP Price: $18.34 |
