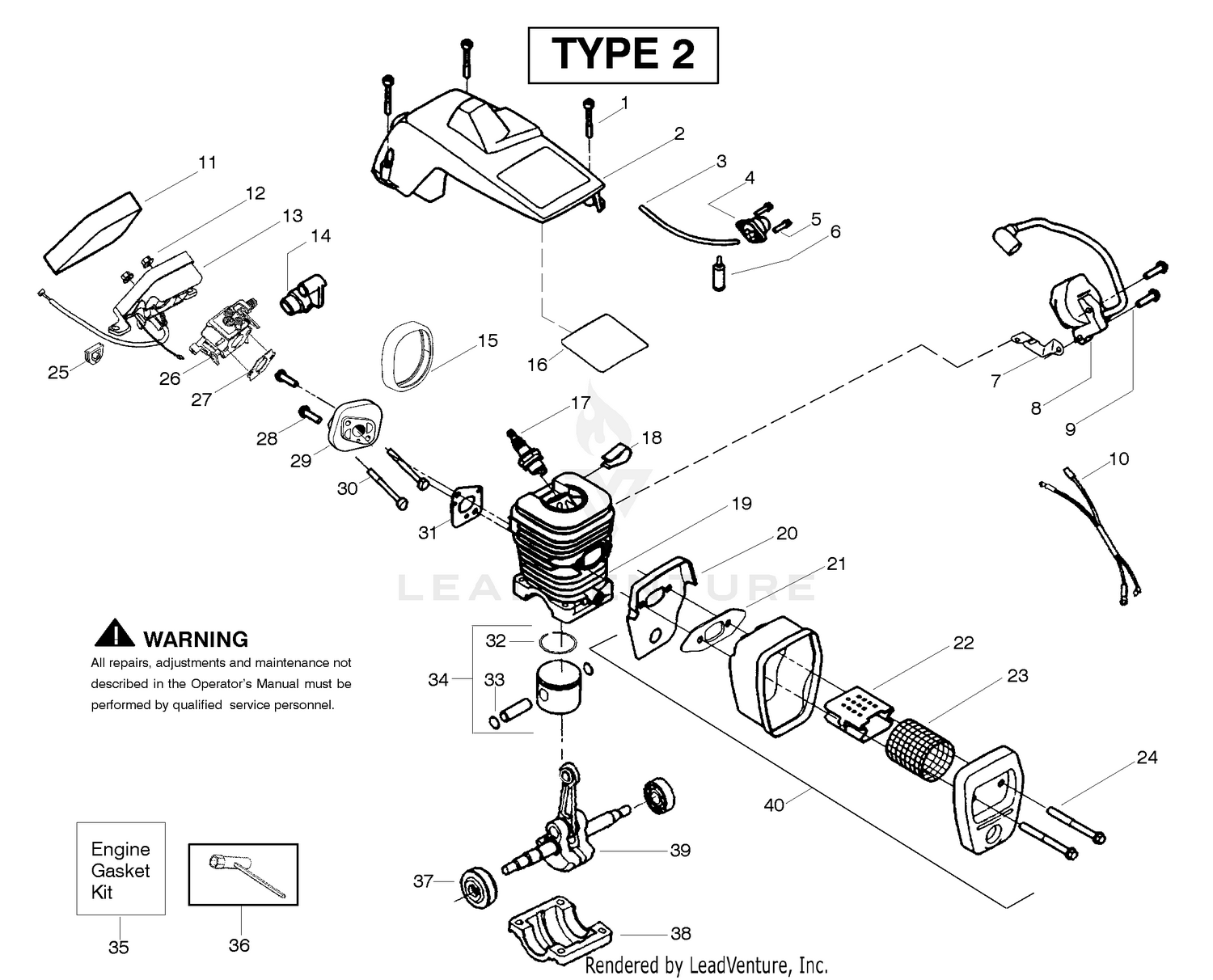

Engine - Type 2
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016153 | Screw Price: $1.99 |
| 3 | 530069247 | Kit-Fuel Line (Small) Price: $3.69 |
| 5 | 530015780 | Screw Price: $1.99 |
| 6 | 530095646 | Assy-Fuel Pick-up Price: $2.69 |
| 7 | 530047442 | Strap-Ground Price: $1.99 |
| 8 | 530039198 | Ignition Module Price: $29.99 |
| 9 | 530015814 | Screw Price: $1.49 |
| 10 | 530057475 | Assy-Wire Harness Price: $5.99 |
| 11 | 530037793 | Foam- Air Filter Price: $1.99 |
| 12 | 530016101 | Nut Price: $1.99 |
| 13 | 530057702 | Assy- Air Box Price: $4.99 |
| 14 | 530035526 | Grommet-Carb Adjust Price: Call Us |
| 15 | 530054144 | Seal-Carb Adapter Price: $2.99 |
| 16 | 530055698 | Reflector-Heat Price: $1.99 |
| 17 | 503235111 | BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 18 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 19 | 530012550 | Cylinder Price: $17.99 |
| 20 | 530049870 | Backplate-Muffler Price: $3.99 |
| 21 | 530069608 | Gasket-Muffler(kit) Price: $5.99 |
| 22 | 530037813 | Diffuser-Muffler Price: $1.99 |
| 23 | 530036103 | Screen-Spark Price: Call Us |
| 24 | 530016132 | Bolt-Muffler Price: $1.99 |
| 25 | 530047631 | Grommet-Throttle Cable Price: $1.99 |
| 27 | 530069608 | Gasket-Carb. (kit) Price: $5.99 |
| 28 | 530016386 | Screw Price: $5.99 |
| 29 | 530049700 | Carb. Adapter Price: $3.99 |
| 30 | 530016187 | Screw Price: $1.99 |
| 31 | 530069608 | Gasket- Adaptor(kit) Price: $5.99 |
| 32 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 36 | 530031163 | Wrench-bar Price: $4.99 |
| 37 | 530056363 | Assy-Seal & Bearing Price: $11.99 |
| 38 | 530037935 | Cap-Crankcase Price: $8.99 |
| 39 | 530047062 | Assy-Crankshaft Price: $72.99 |
