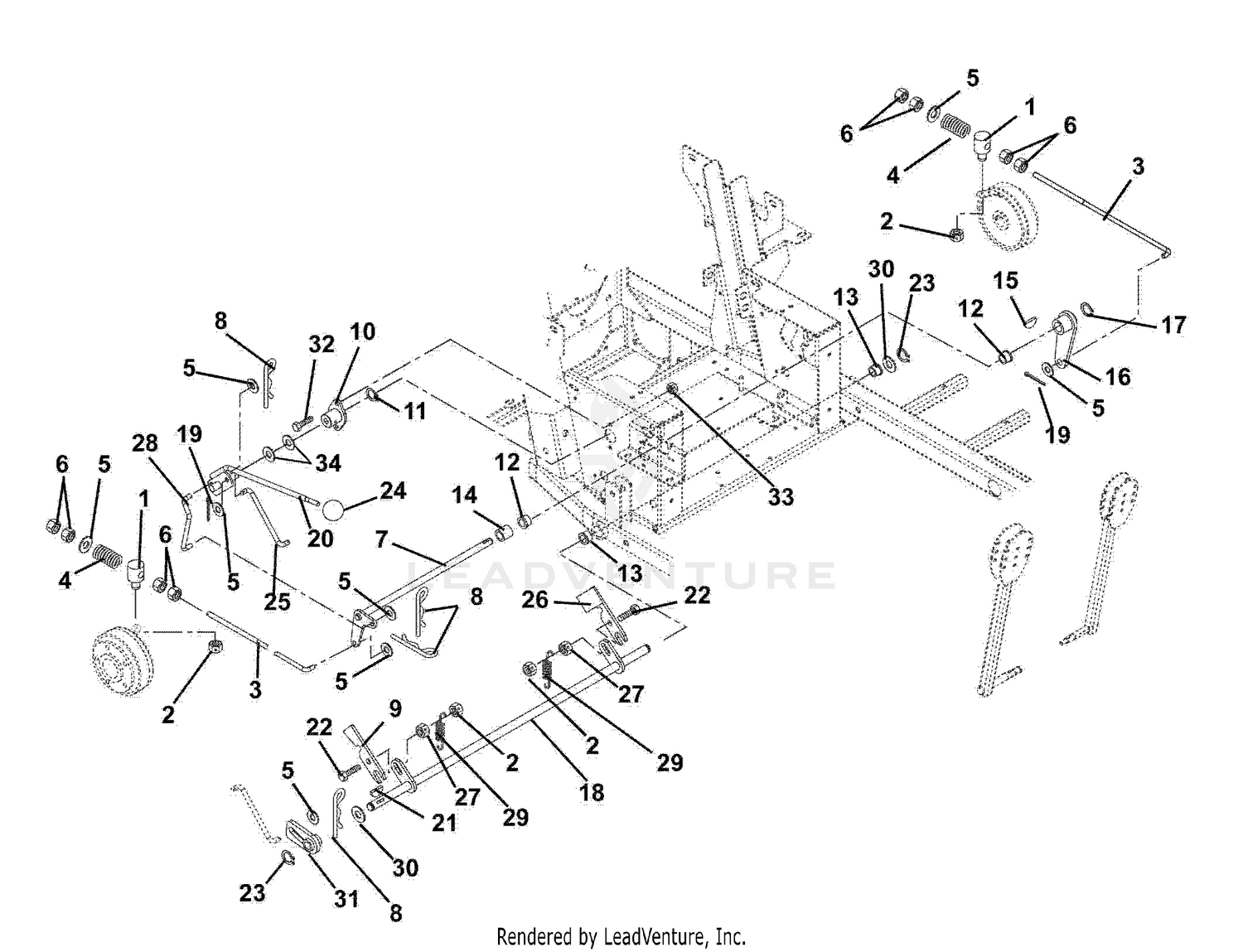

| Ref | Part Number | Description |
|---|
| 1 |
09267300 |
PIN, PIVOT/TRUNNION Price: $6.45 |
| 2 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 3 |
08873000 |
PTO LINK ROD, PRO-150 Price: $30.95 |
| 4 |
08300027 |
SG-COMP .142 X .710 X 1.75 Price: $8.45 |
| 5 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 6 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 7 |
00258800 |
WMT, BRAKE CROSS SHAFT Price: $88.95 |
| 8 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 9 |
09267700 |
SLIDE, INTERLOCKING BRAKE Price: $20.45 |
| 10 |
05534100 |
BUSHING, FLANGED (WITH HOLE) This part replaces 05534700. Price: $36.95 |
| 11 |
05709200 |
RG-RTNG-EXT .625X.050 Price: $2.45 |
| 12 |
05518400 |
BSHG-FLG .762X1.0X.580X1.48 NY Price: $4.45 |
| 13 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 14 |
05500900 |
BSHG-SLV .750X1.000X.750 Price: $8.95 |
| 15 |
06608700 |
KEY-WDRF .19X.75 HRD #9 Price: $0.95 |
| 16 |
00258600 |
WMT, BRAKE ARM Price: $61.45 |
| 17 |
05714600 |
RG-RTNG-EXT .689X.078 Price: $2.45 |
| 18 |
09268000 |
WMT, MECHANICAL BRAKE Price: $148.45 |
| 20 |
03254100 |
WMT, BRAKE HANDLE This part replaces 00472000. Price: $88.95 |
| 21 |
06608400 |
KEY-WDRF .13X.63 HRD#5 Price: $2.45 |
| 22 |
06200407 |
BLT, RHSN .31-18X1.25 G5 ZCC This part replaces 06219200. Price: $3.95 |
| 23 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 24 |
07505200 |
KNOB-STEERING LOCK Price: $19.95 |
| 25 |
09268400 |
LINKAGE, BRAKE ACTUATING Price: $26.95 |
| 26 |
09275900 |
INTERLOCK, SAFETY SWITCH Price: $15.45 |
| 27 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 28 |
09268300 |
LINKAGE, BRAKE ACTUATING Price: $26.95 |
| 29 |
08314100 |
SG-TENS .063X.44X1.56 Price: $5.45 |
| 30 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95 |
| 31 |
09268100 |
WMT, PARKING BRAKE HUB Price: $132.95 |
| 32 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 33 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
