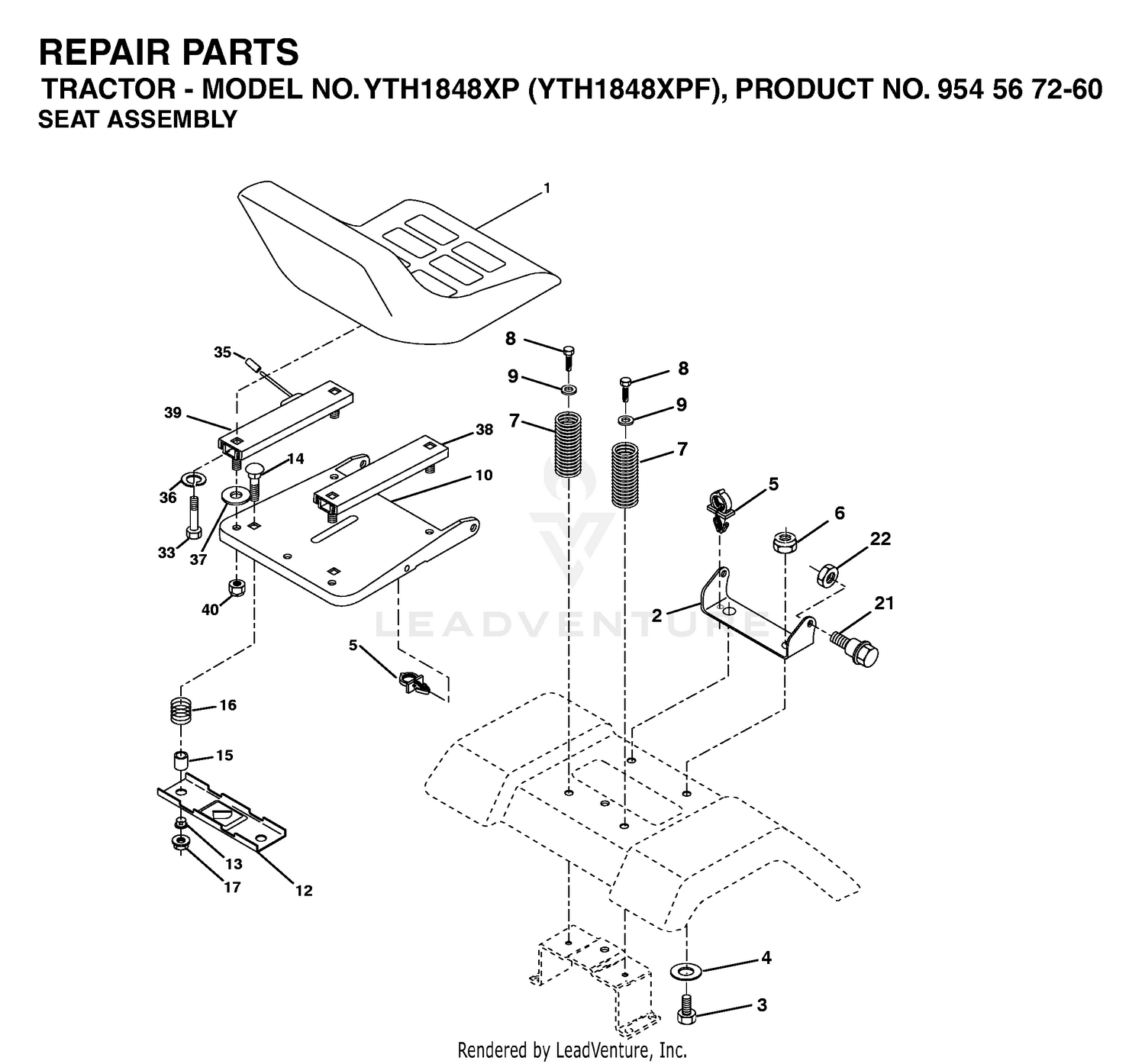

SEAT
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7246 | FIE ASM Price: $4,354.76 |
| 1 | 532401043 | SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 | 531152401 | SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 | 871110616 | BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 | 819131610 | WASHER PM Price: $4.99 |
| 5 | 532145006 | PUSH CLIP Price: $2.99 |
| 6 | 596322601 | Nuts This part replaces 873800600. Price: $2.99 |
| 7 | 587613301 | SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 | 817000616 | SCREW 3/8-16X1 Price: $5.99 |
| 9 | 596140201 | Washers This part replaces 819131614. Price: $2.99 |
| 10 | 125-6991 | COVER Price: $8.10 |
| 10 | 532195530 | PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 | 125-6992 | BOLT Price: $2.32 |
| 12 | 125-6932 | KEY Price: $2.16 |
| 12 | 532174648 | BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 | 532121248 | BUSHING Price: $4.99 |
| 14 | 872050412 | BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 | 125-7135 | FLANGE Price: $138.75 |
| 15 | 532121249 | SPACER SPLIT Price: $4.99 |
| 16 | 532123740 | SPRING COMPRESSED Price: $3.99 |
| 17 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 21 | 587907801 | BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 | 596040501 | Hardware This part replaces 873800500. Price: $2.99 |
| 36 | 810010500 | WASHER Price: $3.99 |
| 37 | 596039901 | Washers This part replaces 819111012. Price: $2.99 |
| 38 | 532177947 | TRACK SLIDE, SEAT(R) Price: $119.99 |
| 39 | 125-7156 | STOPPER Price: $4.35 |
| 39 | 532177946 | TRACK SLIDE, SEAT(L) Price: $59.99 |
| 40 | 125-7154 | O-RING Price: $3.54 |
| 40 | 596040501 | Hardware This part replaces 873680500. Price: $2.99 |
| 41 | 125-7154 | O-RING Price: $3.54 |
| 42 | 125-7092 | VALVE ASM Price: $132.31 |
| 51 | 125-7155 | SPRING Price: $4.35 |
| 59 | 125-7157 | PLUG Price: $10.27 |
| 60 | 125-6933 | PLUG Price: $26.22 |
| 61 | 125-7136 | GASKET Price: $4.06 |
| 62 | 125-7136 | GASKET Price: $4.06 |
| 63 | 125-7151 | PLUG Price: $2.99 |
| 64 | 125-7137 | LIFTER Price: $15.40 |
| 65 | 125-7102 | TIMER SET Price: $86.43 |
| 66 | 125-7103 | TIMER ASM Price: $79.04 |
| 69 | 125-7145 | O-RING Price: $6.82 |
| 70 | 125-6934 | RING Price: $3.44 |
| 71 | 125-6935 | O-RING Price: $6.82 |
| 72 | 125-7202 | O-RING Price: $7.02 |
| 73 | 125-7203 | RING-BACK UP Price: $6.25 |
| 74 | 125-7138 | GASKET Price: $24.57 |
| 75 | 125-6940 | SPRING Price: $5.01 |
| 76 | 125-6941 | CAP Price: $11.15 |
| 78 | 125-6942 | SOLENOID VALVE ASM Price: $107.69 |
| 81 | 125-7146 | GASKET Price: $2.49 |
| 101 | 125-7159 | PISTON Price: $17.04 |
| 102 | 125-7140 | SPRING Price: $10.85 |
| 103 | 125-7160 | PLUG Price: $7.85 |
| 105 | 125-7148 | PLUG Price: $3.26 |
| 106 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 107 | 125-7591 | WASHER-SEAL Price: $5.94 |
| 108 | 125-7147 | BOLT Price: $2.32 |
| 111 | 125-7142 | O-RING Price: $3.95 |
| 112 | 125-7143 | O-RING Price: $2.79 |
| 113 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 114 | 125-7179 | WASHER-SPRING Price: $2.32 |
| 115 | 125-7181 | PIN-PARALLEL Price: $2.93 |
| 116 | 125-7183 | PIN-SPRING Price: $2.93 |
| 118 | 93-0400 | O-RING Price: $4.45 |
| 119 | 125-7201 | O-RING Price: $5.41 |
| 120 | 125-7202 | O-RING Price: $7.02 |
| 121 | 125-7205 | BOLT Price: $2.67 |
| 123 | 125-7233 | BOLT Price: $5.80 |
| 124 | 125-7236 | NUT Price: $3.48 |
| 127 | 125-7125 | HARNESS ASM Price: $25.29 |
| 128 | 125-7126 | HARNESS Price: $22.48 |
| 129 | 125-7033 | CAP Price: $4.88 |
| 130 | 125-7158 | JOINT Price: $10.82 |
| 131 | 125-7127 | BRACKET Price: $3.81 |
| 132 | 125-7139 | JOINT Price: $13.23 |
| 134 | 125-7141 | FEED PUMP ASM Price: $303.99 |
| 135 | 125-7144 | O-RING Price: $6.77 |
| 136 | 125-6945 | JOINT Price: $19.46 |
| 137 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 138 | 125-7178 | WASHER-SPRING Price: $4.09 |
| 139 | 125-7207 | BOLT Price: $2.32 |
| 140 | 125-7235 | NUT Price: $3.48 |
| 141 | 125-7238 | PLUG Price: $2.71 |
| 143 | 125-7032 | RETAINER Price: $109.88 |
