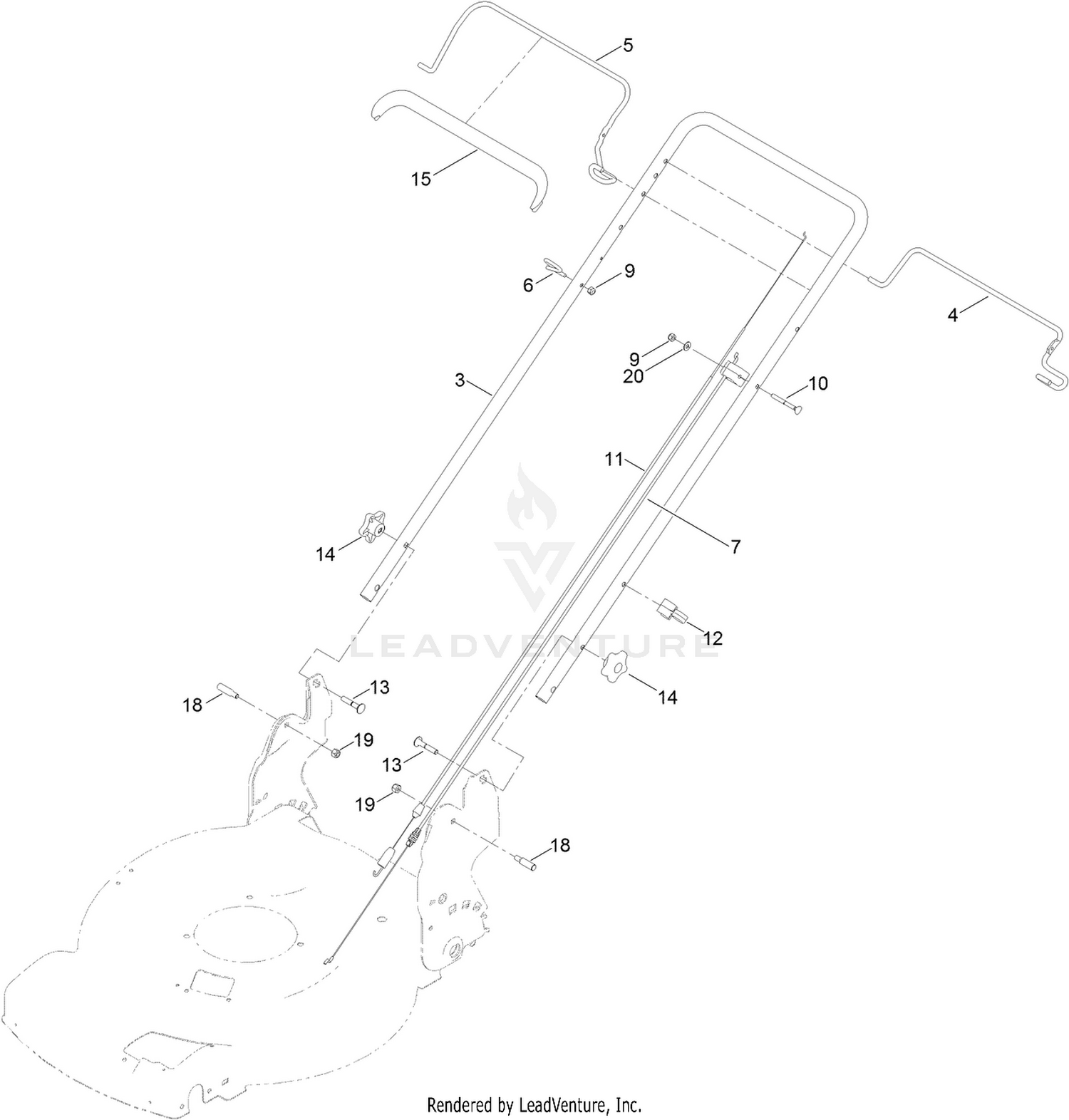

Handle Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 131-4598-05 | HANDLE Price: $599.99 |
| 4 | 131-0835-03 | BAIL-TRACTION Price: $14.99 |
| 5 | 138-3269-03 | BAIL-BRAKE Price: $13.99 |
| 6 | 86-9671 | GUIDE-ROPE Price: $3.99 |
| 7 | 136-9065 | CABLE-BRAKE Price: $26.99 |
| 9 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 10 | 92-2270 | SCREW-HANDLE Price: $7.89 |
| 11 | 119-2379 | CABLE-TRACTION Price: $33.99 |
| 12 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 13 | 131-9663 | SCREW-CARR Price: $0.89 |
| 14 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 15 | 127-6847 | COVER-BAIL Price: $3.99 |
| 18 | 131-4591 | BOLT-SHOULDER Price: $1.69 |
| 19 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
