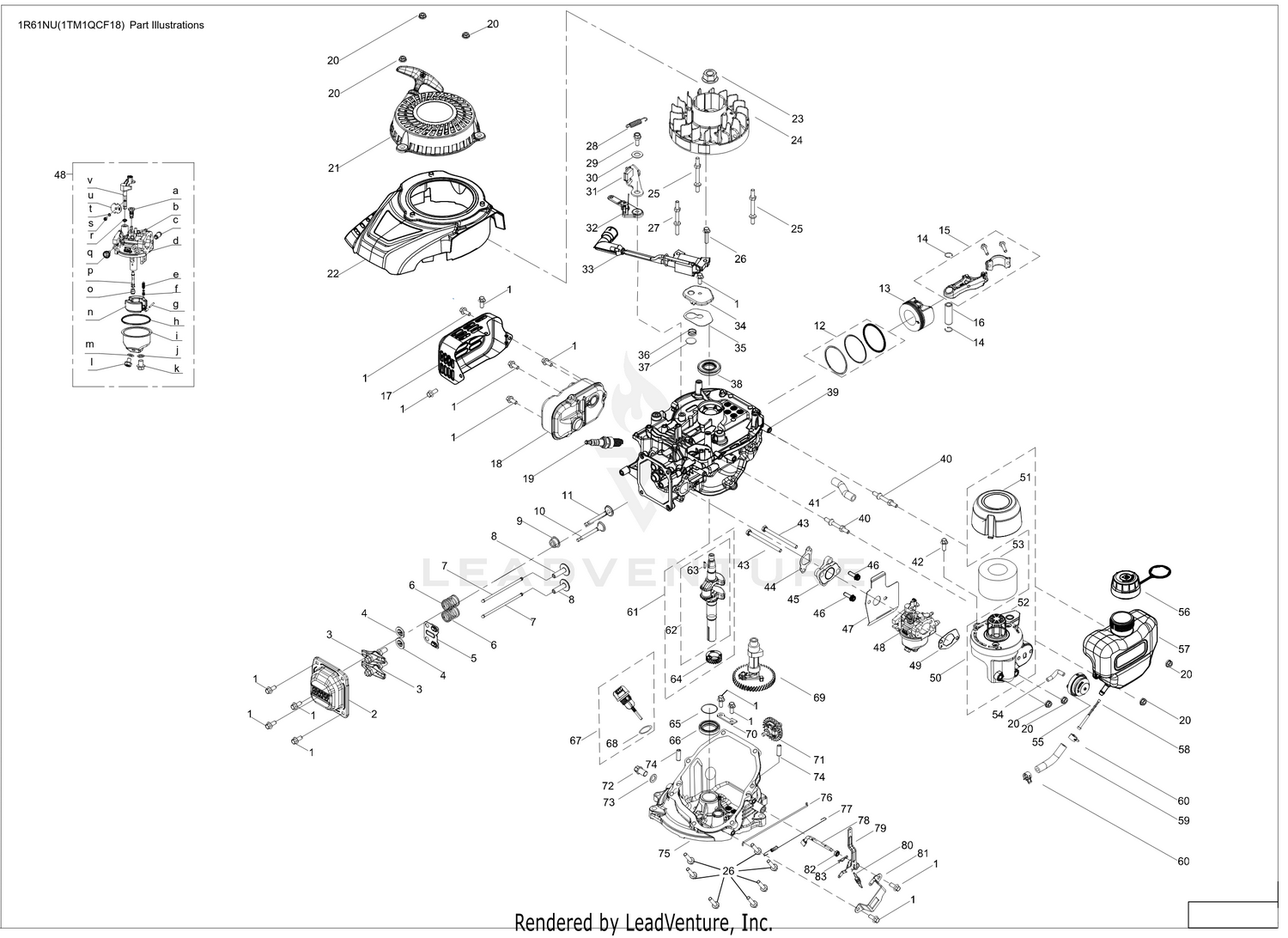

| Ref | Part Number | Description |
|---|
| t |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
751P15154B |
VALVE COVER This part replaces 751-15154A. Price: $3.95 |
| 3 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 4 |
951-11977 |
VALVE SPRING RETAINER Price: $3.60 |
| 5 |
751P15178 |
PUSH ROD GUIDE This part replaces 751-15178. Price: $1.02 |
| 6 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 7 |
751P16029 |
PUSH ROD GUIDE This part replaces 751-16029. Price: $1.45 |
| 8 |
951-11607 |
TAPPET (LIFTER) Price: $7.42 |
| 9 |
921-04237A |
INTAKE VALVE SEAL This part replaces 921-04237. Price: $7.20 |
| 10 |
951-14641 |
EXHAUST VALVE Price: $8.71 |
| 11 |
951-14640A |
INTAKE VALVE This part replaces 951-14640. Price: $8.71 |
| 12 |
751P16166 |
PISTON RING SET This part replaces 751-16166. Price: $8.84 |
| 13 |
751P16067 |
PISTON This part replaces 751-16067. Price: $21.03 |
| 14 |
951-11603 |
SNAP RING-PISTON PIN Price: $3.53 |
| 15 |
651P05695 |
CONNECTING ROD ASSEMBLY This part replaces 651-05695. Price: $12.68 |
| 16 |
951-14435 |
PISTON PIN Price: $11.17 |
| 17 |
751P15133B |
MUFFLER GUARD This part replaces 751-15133A. Price: $8.26 |
| 18 |
751P15131 |
MUFFLER This part replaces 751-15131. Price: $13.24 |
| 19 |
951-14437 |
SPARK PLUG Price: $7.34 |
| 20 |
712-05015 |
HEX NUT Price: $5.78 |
| 21 |
951-05320A |
STARTER RECOIL ASSEMBLY This part replaces 951-05320. Price: $57.94 |
| 22 |
631P05759 |
SHROUD ASSEMBLY This part replaces 631-05759. Price: $12.74 |
| 23 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 24 |
925-06190A |
ENGINE FLYWHEEL This part replaces 925-06190. Price: $84.73 |
| 25 |
710-06208 |
STUD M6 x 75 Price: $5.59 |
| 26 |
710-04919 |
BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 27 |
710-06209 |
STUD M6 x 73 Price: $5.59 |
| 28 |
932-05379 |
ENGINE BRAKE SPRING Price: $4.02 |
| 29 |
911-06531 |
ENGINE BRAKE PIN M6-1.0 MM Price: $31.48 |
| 30 |
936-05145 |
FLAT WASHER 10x20x1.0 MM Price: $4.02 |
| 31 |
951-15098 |
ENGINE BRAKE ARM Price: $7.25 |
| 32 |
651-05306 |
ENGINE BRAKE LOWER BRACKET Price: $52.46 |
| 33 |
925-06488 |
IGNITION COIL Price: $31.48 |
| 34 |
708-05172 |
BREATHER COVER PLATE Price: $1.27 |
| 35 |
721-04830A |
BREATHER GASKET This part replaces 721-04830. Price: $1.92 |
| 36 |
732-04718 |
BREATHER VALVE SPRING Price: $3.78 |
| 37 |
951-11614 |
BREATHER VALVE Price: $3.53 |
| 38 |
921-04700 |
UPPER CRANKSHAFT SEAL Price: $8.96 |
| 39 |
751P16068 |
CRANKCASE This part replaces 751-16068. Price: $150.60 |
| 40 |
751P15136 |
FUEL TANK MOUNTING STUD M6X59.5 This part replaces 751-15136. Price: $1.02 |
| 41 |
735P05144 |
BREATHER HOSE This part replaces 735-05144. Price: $0.63 |
| 42 |
710-04968 |
BOLT M6 x 16 Price: $5.77 |
| 43 |
710-06220 |
BOLT M6X80 Price: $0.39 |
| 44 |
721-04833A |
CARBURETOR INSULATION GASKET This part replaces 721-04833. Price: $1.82 |
| 45 |
751P15138A |
CARBURETOR INSULATOR This part replaces 751-15138. Price: $3.77 |
| 46 |
710-06195 |
BOLT M6X20 Price: $0.27 |
| 47 |
721-04832A |
CARBURETOR GASKET This part replaces 721-04832. Price: $1.83 |
| 48 |
651-05558 |
CARBURETOR ASSEMBLY KM-1R61BA Price: $31.02 |
| 49 |
951-14419A |
AIR FILTER BASE GASKET This part replaces 951-14419. Price: $7.08 |
| 50 |
951-05333 |
AIR FILTER ASSEMBLY Price: $12.11 |
| 51 |
931-11695A |
AIR FILTER COVER This part replaces 931-11695. Price: $2.84 |
| 52 |
931-05507A |
AIR FILTER BASE This part replaces 931-05507. Price: $8.05 |
| 53 |
951-15137A |
AIR FILTER - FOAM This part replaces 951-15137. Price: $8.55 |
| 54 |
735P05143 |
PRIMER HOSE This part replaces 735-05143. Price: $0.70 |
| 55 |
951-05177A |
PRIMER ASSEMBLY This part replaces 951-05177. Price: $12.83 |
| 56 |
951-15255A |
FUEL CAP W/TETHER This part replaces 951-15255. Price: $23.25 |
| 57 |
931-14211 |
FUEL TANK Not Available Price: |
| 58 |
951-12296A |
FUEL FILTER This part replaces 951-12296. Price: $8.68 |
| 59 |
735P05142A |
FUEL HOSE This part replaces 735-05142. Price: $6.43 |
| 60 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 61 |
651P05716 |
CRANKSHAFT ASSEMBLY This part replaces 651-05716. Price: $62.75 |
| 62 |
751P16190 |
CRANKSHAFT ASSEMBLY This part replaces 751-16190. Price: $60.27 |
| 63 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 64 |
931-10288A |
GEAR This part replaces 931-10288. Price: $8.18 |
| 65 |
736-04491 |
THRUST WASHER Price: $3.78 |
| 66 |
951-11545A |
LOWER CRANKSHAFT SEAL This part replaces 951-11545. Price: $9.07 |
| 67 |
651P05334A |
DIPSTICK ASSEMBLY This part replaces 651P05334. Price: $3.56 |
| 68 |
721-04839 |
DIPSTICK SEAL Price: $0.63 |
| 69 |
751P16187 |
CAMSHAFT ASSEMBLY This part replaces 751-16187. Price: $16.45 |
| 70 |
951-11609 |
GOVERNOR GEAR MOUNTING PLATE Price: $4.44 |
| 71 |
951-05336A |
GEAR GOVERNOR This part replaces 951-05336. Price: $7.77 |
| 72 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 73 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 74 |
715-05058 |
DOWEL PIN 7X20 Price: $0.27 |
| 75 |
751P15152 |
CRANKCASE COVER This part replaces 751-15152. Price: $76.69 |
| 76 |
751P15144 |
THROTTLE LINKAGE This part replaces 751-15144. Price: $3.30 |
| 77 |
732P05411 |
THROTTLE LINKAGE SPRING This part replaces 732-05411. Price: $3.54 |
| 78 |
751P15143 |
GOVERNOR ARM SHAFT This part replaces 751-15143. Price: $1.28 |
| 79 |
651P05327 |
GOVERNOR ARM ASSEMBLY This part replaces 651-05327. Price: $2.48 |
| 80 |
951-14411 |
GOVERNOR SPRING Price: $8.34 |
| 81 |
708-05179 |
COMPONENT BRACKET Price: $1.56 |
| 82 |
751P15150 |
GOVERNOR SEAL This part replaces 751-15150. Price: $0.92 |
| 83 |
714-04078 |
COTTER PIN Price: $3.66 |
