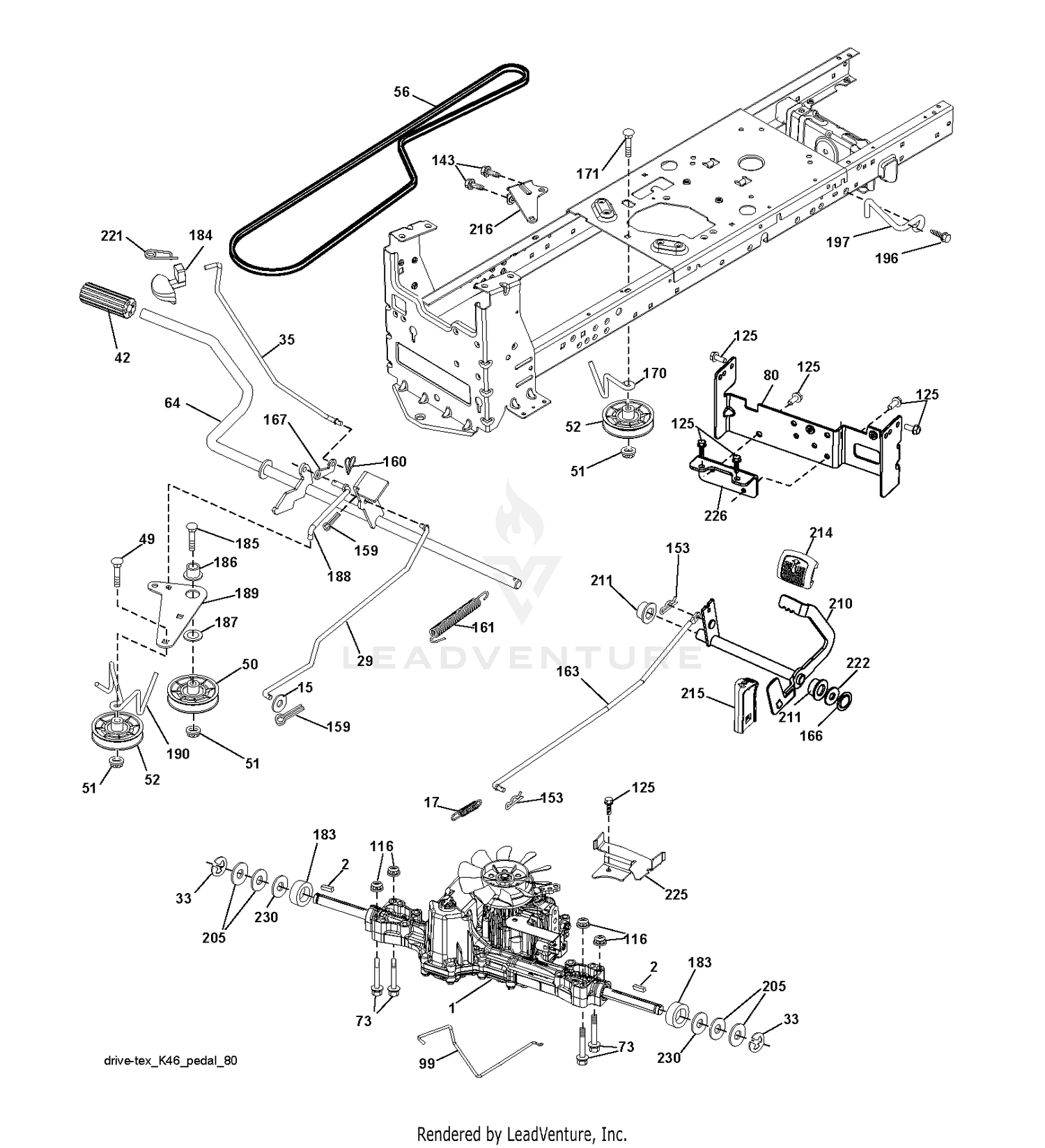

| Ref | Part Number | Description |
|---|
| 1 |
000000000 |
Price: Call Us |
| 1 |
120-3801-03 |
FRAME-ARM, CONTROL Price: $445.78 |
| 2 |
120-6310 |
LCD DISPLAY ASM Price: $584.72 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
95-8999 |
SWITCH Price: $42.14 |
| 4 |
105-4232 |
SWITCH Price: $88.64 |
| 5 |
100-1535 |
SWITCH Price: $84.91 |
| 6 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 7 |
125-1938 |
LATCH Price: $27.46 |
| 8 |
120-5280 |
BRACKET-JOYSTICK Price: $203.76 |
| 9 |
104-7201 |
NUT-HF Price: $0.69 |
| 10 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 11 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 12 |
104-2065 |
SCREW-HWH Price: $0.28 |
| 13 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
108-7605 |
COVER-RH Price: $55.56 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
108-7604 |
COVER-LH Price: $55.56 |
| 17 |
233-42 |
KNOB Price: $12.88 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 19 |
112-9181 |
PLATE-BOOT Price: $4.90 |
| 20 |
161-7350 |
IGNITION SWITCH ASM This part replaces 106-5269. Price: $56.32 |
| 21 |
125-8754 |
DECAL-PANEL, CONTROL Price: $30.81 |
| 22 |
120-4158 |
DECAL-CONSOLE, UPPER Price: $23.98 |
| 23 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 27 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 28 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 29 |
114-0446 |
PANEL-ACCESS Price: $18.13 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
117-0169 |
DECAL-FUSES Price: $17.49 |
| 31 |
114-3321 |
CONTROLLER-TEC Price: $1,515.96 |
| 32 |
32144-87 |
SCREW-HWHTF Price: $0.49 |
| 33 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
110-8912 |
SEAL-FOAM Price: $2.23 |
| 35 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 36 |
283-88 |
PIN-CLEVIS Price: $5.77 |
| 37 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 38 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 39 |
110-5313-03 |
BRACKET-RETAINER Price: $35.01 |
| 40 |
283-73 |
PIN-CLEVIS Price: $0.95 |
| 41 |
322-7 |
SCREW-HH Price: $0.89 |
| 42 |
110-5314 |
LATCH Price: $22.89 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 44 |
110-8856 |
SPACER Price: $10.25 |
| 45 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 This part replaces 532409747. Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
