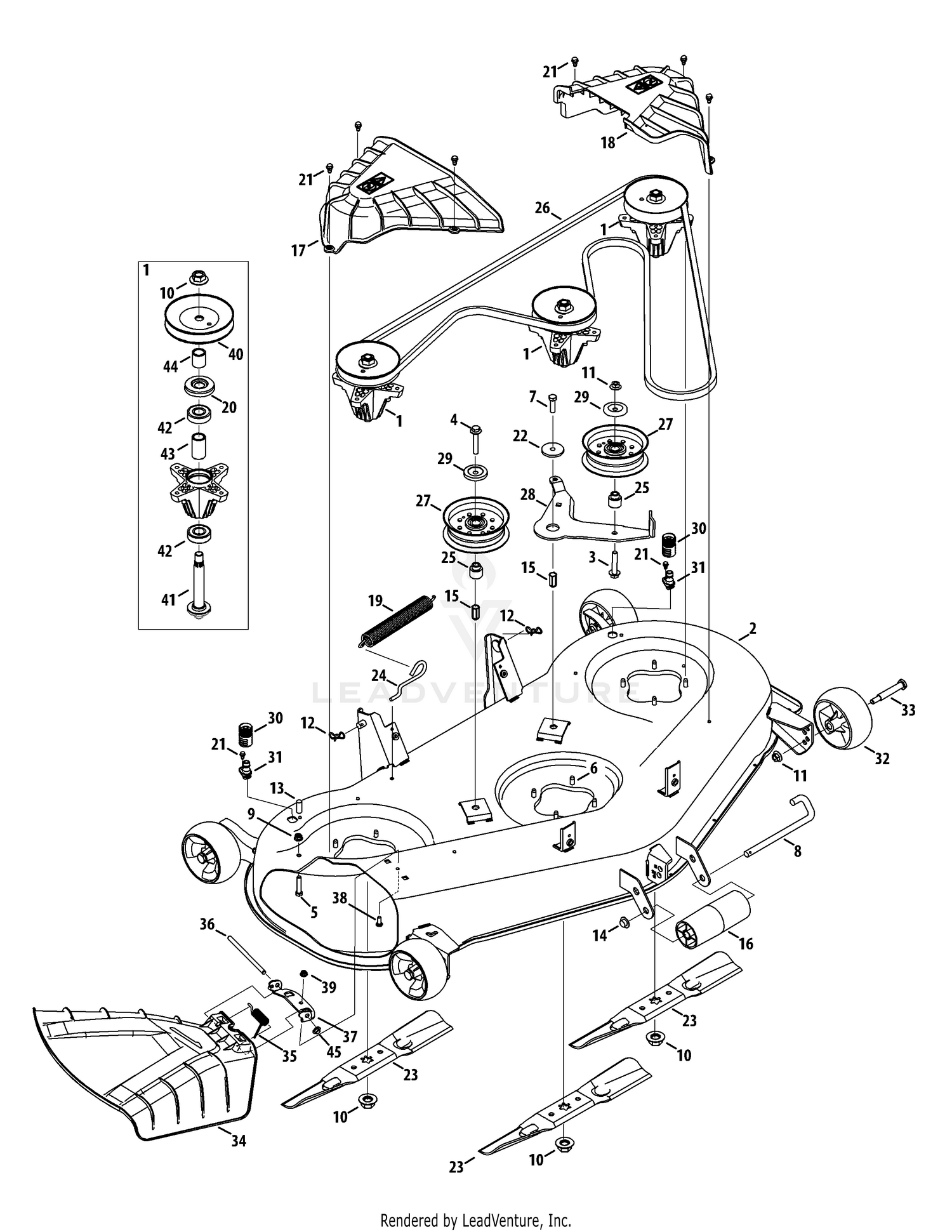

| Ref | Part Number | Description |
|---|
| 1 |
490-130-F016 |
GENUINE FACTORY PARTS® 50" Spindle Assembly with Hardware 618-06981 (NX-15) (6-Point) Price: $137.52 |
| 1 |
918-06981 |
Spindle Ass’y, Pulley, 5.37 Dia Price: $137.52 |
| 3 |
710-06178 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $5.52 |
| 4 |
710-06215 |
Hex Cap Screw, 3/8-16 x 2.25 Price: $5.97 |
| 5 |
710-0805A |
Hex Cap Screw, 5/16-18 x 1.50 Price: $3.75 |
| 6 |
710-1260A |
Screw, Self-tapping, 5/16-18, 0.750, Price: $3.34 |
| 7 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 8 |
711-06377 |
Roller Pin, 1/2 x 7.31 Lg Price: $18.42 |
| 9 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 10 |
712-0417A |
HEX NUT Price: $6.50 |
| 11 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 12 |
714-05005 |
Bow-Tie Cotter Pin Price: $4.24 |
| 13 |
720-05075 |
Vinyl Cap, .29 x 1.00 Price: $3.66 |
| 14 |
726-0299 |
Push Cap, 1/2" Price: $7.03 |
| 15 |
728-05016 |
Rivet Nut, 3/8-16 Price: $5.23 |
| 16 |
731-05679B |
Front Roller Price: $15.80 |
| 17 |
731-09968B |
SPINDLE COVER (RH) This part replaces 731-09968. Price: $25.19 |
| 18 |
731-09969C |
SPINDLE COVER (LH) This part replaces 731-09969A. Price: $24.94 |
| 19 |
732-04927 |
Spring, Extension, 1.25 OD x 8.5 Price: $19.91 |
| 20 |
783-08435 |
Bearing Shield Price: $6.28 |
| 21 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 22 |
738-05082 |
Shoulder Spacer, .970 x .190 Price: $7.32 |
| 23 |
942-05052A |
Blade, Cut, 17.27" 2-In-1 Price: $26.85 |
| 24 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 25 |
748-05037B |
SHOULDER SPACER This part replaces 748-05037A. Price: $4.64 |
| 26 |
954-04077A |
Belt, V-Type, B Sec x 134 Price: $76.31 |
| 27 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 28 |
783E08309B |
IDLER PIVOT BRACKET This part replaces 783-08309A. Price: $36.90 |
| 29 |
783-08389 |
Pulley Cap Price: $5.23 |
| 30 |
921-04041 |
Coupler, Water Price: $20.19 |
| 31 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 32 |
734-04155 |
Wheel, Deck, 5.0 Dia. Ball Price: $19.04 |
| 33 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 34 |
631-05116B |
CHUTE ASSEMBLY This part replaces 631-05116A. Price: $47.99 |
| 35 |
732-05261 |
Spring, Torsion, .440 ID x 1.75 Price: $5.18 |
| 36 |
747-06290B |
Hinge Pin Price: $3.66 |
| 37 |
783-08504B |
CHUTE MOUNTING BRACKET This part replaces 783-08504A. Price: $12.64 |
| 38 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 39 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 40 |
756-05036 |
Pulley, Deck, 5.00 Dia. Price: $20.29 |
| 41 |
938-04241 |
Shaft, Spindle, 5.50 Price: $30.27 |
| 42 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 43 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 44 |
750-06153 |
Spacer, .792 x 1.060 x 1.191 Price: $3.68 |
