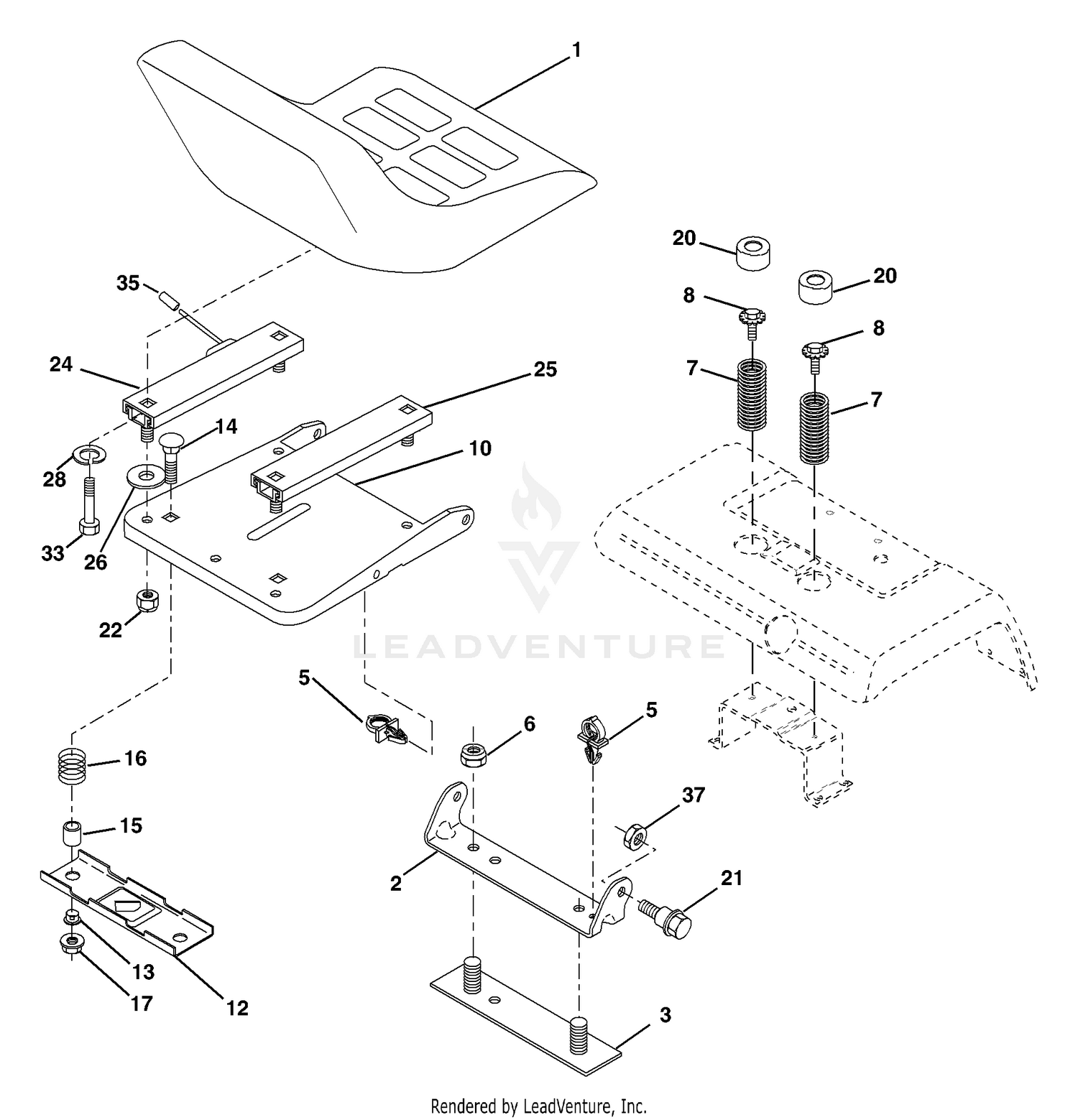

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
94-3605 |
BACKPLATE ASM Price: $531.42 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
94-3601 |
IDLER GEAR ASM Price: $384.99 |
| 9 |
94-3602 |
DRIVE GEAR ASM Price: $672.24 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
94-3606 |
KEY Price: $7.52 |
| 11 |
59-8420 |
RING Price: $6.90 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
94-3603 |
MOTOR BODY ASM Price: $247.19 |
| 13 |
42-2010 |
PIN-DOWEL Price: $2.67 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
66-5730 |
DISCONTINUED Price: Call Us |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
94-3600 |
CAPSCREW Price: $6.65 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
59-8320 |
RING-RETAINING Price: $5.29 |
| 17 |
117-8976 |
SEAL This part replaces 66-5710. Price: $48.67 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
60-5890 |
WASHER Price: $4.68 |
| 19 |
92-9260 |
RELIEF VALVE KIT Price: $246.39 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 24 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
| 25 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 26 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 28 |
810010500 |
WASHER Price: $3.99 |
| 33 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 35 |
583670601 |
CAP.VINYL.BLK.SERVICE This part replaces 532178426. Price: $2.99 |
